Freeze–Thaw Resistance and Drying Shrinkage of Recycled Aggregate Concrete Proportioned by the Modified Equivalent Mortar Volume Method
© The Author(s) 2017
Received: 7 July 2016
Accepted: 6 September 2017
Published: 7 December 2017
To evaluate the effect of the mix proportioning method on drying shrinkage and freeze-and-thaw resistance of recycled concrete aggregate (RCA) concrete, two series of concrete mixes were made using the modified equivalent mortar volume (EMV) method and the conventional ACI method. In this study, different sources of RCAs were manufactured from on-site plants on air bases and at a commercial recycling plant. Keeping the total mortar at the same level, concrete mixes were proportioned by the modified EMV method, using different scale factors: S = 1 (with RCA substitution of 23%), S = 2 (with RCA substitution of 47%), and S = 3 (with RCA substitution of 73%). It was assumed that the residual mortar volume in the RCA concrete was represented in the sum of the volume of mortar and the volume of aggregate, in variance to the scale factors. Test results showed that the modified EMV method for all the mixes yielded the drying shrinkage property of the RCA concrete comparable to that of the companion concrete with natural coarse aggregate. On the other hand, it was observed in the freeze-and-thaw test that the modified EMV method could be marginally applied to the limited condition with S = 2.
Due to environmental regulations, difficulty in quality control, and decrease in strength properties, the use of recycled concrete aggregate (RCA) has been mostly limited to nonstructural applications, especially in pavement layers despite its economical and eco-friendly benefits (Ministry of Land, Transportation and Maritime Affairs 2009; Ministry of Environment 2014; Kang et al. 2014; Yang et al. 2014; Fathifazl 2008; Fathifazl et al. 2009). In particular, if RCA concrete is proportioned according to the conventional American Concrete Institute (ACI) method, it would be difficult to enhance its properties such as the modulus of elasticity, drying shrinkage, and freeze-and-thaw resistance (Fathifazl 2008; Fathifazl et al. 2009; Abbas et al. 2009).
In the case of a military airfield on a base in Seoul, South Korea, its runway was paved with good quality concrete materials that has lasted around 30–40 years. Engineers predict (Yang et al. 2014) that a half of all the airport runaways in South Korea will undergo surface reconstruction within 5–10 years. A few air bases have already been under reconstruction, and the RCAs produced on-site on air bases have been used only for the sub-base materials, regardless of the potentially good RCA quality that the air bases can produce. It is noticeable that the RCA recycled on the air base normally contains fewer impurities than other structures and at most contains some asphalt and rubber from the patching and joint sealing areas.
In addition to the factors already mentioned that limit RCA concrete use, there is also a security regulation and financial conflict between the air base and recycling plant owners. Regarding the regulation, it would be unavoidable to take out the old paving concrete waste to an external recycling plant and bring the standard grade RCA back to the air base reconstruction site after recycling due to the strict RCA quality requirement. The Korean standard (KS) specifications require a specific gravity of 2.5 and water absorption of less than 3% of the RCA for structural and paving concrete use (Ministry of Land, Infrastructure and Transportation 2009; Korea Expressway Corporation 2011; Incheon International Airport Corporation 2012). In actuality, 4–6 steps of additional crushing processes are being carried out at the recycling plant in order to satisfy the KS specifications (see Fig. 4), resulting in a loss of time and money (Kang et al. 2014).
An innovative method to solve this problem has been introduced by Fathifazl (2008), Fathifazl et al. (2009) and Abbas et al. (2009). They undertook an extensive literature review and summarized the mechanical and durability properties of RCA concrete (Fathifazl 2008). The concrete properties using the conventional RCA method are mainly affected by the volume of the residual mortar (RM) attached to the RCA. It was pointed out in 17 studies (Fathifazl 2008) that the elastic modulus of RCA concrete decreased by 0–45%, compared to that of the companion natural aggregate concrete. Other researchers also confirmed that RCA concretes had lower elastic modulus than normal aggregate one (Tavakoli and Soroushian 1996; Eguchi et al. 2007; Padmini et al. 2009; Limbachiya et al. 2012; McNeil and Kang 2013; Wardeh et al. 2015). This means that the elastic modulus of RCA concrete is a function of that of the mortar and also has a proportional relationship with the volume of the mortar (Fathifazl 2008). It was also mentioned in 11 studies (Fathifazl 2008) that the drying shrinkage of the RCA concrete exhibited a 6–111% increase, compared to that of the conventional mix concrete. Other studies also showed that RCA concrete had higher drying shrinkages than normal aggregate one (Eguchi et al. 2007; Limbachiya et al. 2012; Sagoe-Crentsil et al. 2001). This is due to the fact that the drying shrinkage is proportional to the volume of the mortar. Consequently, Fathifazl, et al. came up with the equivalent mortar volume (EMV) method, treating the residual mortar as part of the total mortar content of the RCA concrete, (i.e. residual plus fresh mortar) and demonstrating that the elastic modulus does not decrease and that the drying shrinkage does not increase.
In essence, airport pavements require very delicate riding smoothness, and this is greatly related to the low slump of the paving surface. The low slump, often under 50 mm (Korea Expressway Corporation 2011; Incheon International Airport Corporation 2012), can be achieved for paving due to the compaction of the concrete mix. A paving concrete mix is therefore typically proportioned with a marginal amount (usually less than 700 kg/m3) of fine aggregates. It was pointed out in the previous study (Yang and Lee 2017b; Kim et al. 2016) that the nature of the EMV mix proportions leads to a far smaller amount of fine aggregates, in some case less than 600 kg/m3, creating a harsh mix. It may have a smooth finish if the slip form paver forcibly vibrates more than 10,000 times per minute, but normally there will be a range of shortage in the amount of sand or fresh mortar. Therefore, the modified EMV mix proportioning method has been proposed (Yang and Lee 2017a, b; Kim et al. 2016), assuming that a certain volume fraction of the residual mortar may be mathematically treated as original virgin aggregate, while the other fraction as a part of the total mortar.
This study aims to assess the effect of different mix proportioning methods (the conventional ACI method versus the modified EMV method) on the drying shrinkage and freeze-and-thaw resistance of concrete. The modified EMV method and the conventional method were used for comparison. Several RCAs were produced from the on-site plants on air bases and at a commercial recycling plant in South Korea. To verify the applicability of the modified EMV method, especially for the drying shrinkage and freeze-and-thaw of RCA concrete, two series of mixes were made using the modified EMV mix design, along with the original EMV and the conventional mix design, with various types and sources of coarse RCA.
2 Modified Equivalent Mortar Volume Method
3 Experimental Details
A type I Portland cement was used in this study. The specific gravity of cement used in the mixture design was 3.15 and the specific surface area was 3200 cm2/g. Chemical admixture used for this study were a solution of air entraining and water reducing agent.
3.1.2 Recycled Concrete Aggregate
Water absorption (%)
Abrasion resistanceb (%)
‘C’ (SC air base)
‘D’ (DG plant)
‘A’ (SN air base)

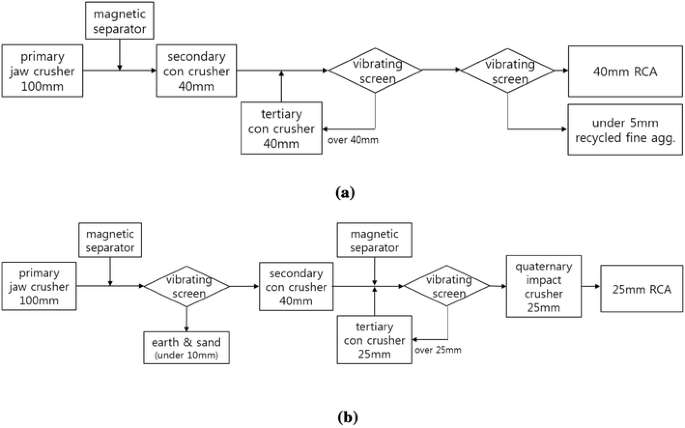

Material properties and production sources of the RCAs are recorded in Table 1. From a polarization microscope test for the three test samples, the minerals that constitute the original virgin aggregates were found to be tuff, hornfels, and shale for the ‘C’ RCA, with andesite, hornfels, and quartz porphyry for the ‘D’ RCA, and quartzite, orthoquartzite, and mica-gneiss for the ‘A’ RCA (Lee 2014).
According to the quality control requirements (Ministry of Land, Infrastructure and Transportation 2009), the RCA contained less than 0.5% wood and less than 1% foreign materials by weight. The properties of the RCAs were tested according to the KS methods (KS F 2007a, b), and are given in Table 1. All three RCAs have failed to meet the required KS standards on structural concrete in terms of the specific gravity of 2.5 and the water absorption of 3.0%.
The RMC value of ‘A’ RCA only was determined by the same method suggested by Abbas et al. (2008) Two samples were used to determine the RMC values in individual size fractions. After drying the samples for 24 h at 105 °C, the oven dried samples were immersed for 24 h in a 26% by weight sodium sulfate solution. While still immersed in the sodium sulfate solution, the RCA samples were subjected to five cycles of freezing and thawing, i.e., 16 h at −17 °C and 8 h at 80 °C. After the last freeze-and-thaw cycle, the solution was drained from the sample, and the aggregate was washed with water over a No. 4 sieve. The washed aggregate was then placed in an oven for 24 h at 105 °C and its oven-dried weight was measured.
3.1.3 Fine Aggregates and Natural Aggregates
Aggregate material properties.
Water absorption (%)
Fine agg. 1
Fine agg. 2
Natural coarse agg.
3.2 Mix Design
Concrete mixture designs and material quantities.
Air contents (%)
The mix design identification in Table 3 can be explained as follows. There are three different sets of terms. The first, 1 and 2 denote test series number. The second term C designates the conventional mix method, while E is the EMV mix method. The third indicates the type of coarse aggregates; N implies natural coarse aggregate, while C and A are the RCAs produced at the on-site recycling plant of the SC and SN air bases, respectively, and D is the RCA produced from the DG recycling plant. The numbers following the third, 1, 2, and 3 denote the RCA replacement levels and are related to the S values applied in Eq. (3). For example, the 2E-A2 denotes the EMV mix design in the second test series substituted with the ‘A’ RCA, but proportioned with S = 2 in Eq. (3).
The first series of mixes were designed to confirm how the conventional method with the RCA leads to decreased durability properties such as drying shrinkage and the freeze-and-thaw resistance, compared to the corresponding concrete mix containing natural aggregate. The second series of mixes were then designed to apply the modified EMV approach with scale factors, S = 1 (the original EMV mix proportion), S = 2, 3, aiming to have the equivalent durability properties, in comparison with the companion mixes along with the conventional proportioning design.
3.3 Mixing Process for Making the Concrete Specimens
A volume capacity of 60L concrete pan mixer was used in the laboratory. Before the addition of water and the admixture solution, the admixture in the mixing water was thoroughly dispersed. Coarse aggregate and fine aggregate were then added, giving the mixture a few turns. Cement was subsequently added and the mixer was started for about 90 s. Finally water was added while the mixer was running and the concrete was mixed for another 120 s.
3.4 Fresh and Hardened Concrete Properties Testing
The performance of the concrete mixtures was determined by testing the fresh and hardened concrete properties. Immediately after batching, the fresh concrete properties such as air content (summarized in Table 3) and slump were tested. The hardened concrete properties tests performed in this study included compressive strength and modulus of elasticity. Specimens were cast in plastic molds with the specified consolidation method (ASTM 2012), that is, rodding and external vibration, and removed 24 h later. All specimens were moist-cured at around 20 ± 2 °C from the time of molding until the moment of the test. Both compressive strength and modulus of elasticity tests for mix series 1 were performed in the 100 mm × 200 mm cylinder, where the tests for mix series 2 were done in the 150 mm × 300 mm for mix series 2. Two different cylinders were used for mix series 1 and 2 due to their different maximum aggregate sizes of 25 and 32 mm, respectively.
3.5 Test Procedures
For durability properties, there are chloride penetration test (Abbas et al. 2009; Limbachiya et al. 2012; Ying et al. 2016; Lee et al. 2013), carbonation test (Abbas et al. 2009; Limbachiya et al. 2012; Sagoe-Crentsil et al. 2001; Lee et al. 2013), freeze–thaw test (Abbas et al. 2009; Ballim 2000; Lee et al. 2013), and creep (Fathifazl 2008; Smadi et al. 1989) and drying shrinkage tests (Fathifazl 2008; Sagoe-Crentsil et al. 2001; Smadi et al. 1989; Lee et al. 2013). Under the assumption that chloride penetration and carbonation properties may be better observed from the freeze–thaw test, while drying shrinkage may demonstrate a similar trend to creep behavior, freeze–thaw and drying shrinkage tests were conducted in this paper to study durability of RCA concrete.
3.5.1 Drying Shrinkage
3.5.2 Freezing and thawing
The freeze-and-thaw tests were carried out by Procedure A with rapid freezing and thawing in water specified in KS F 2456 (2013), which is equivalent to ASTM C 666-03. The freeze-and-thaw tests were conducted on 100 × 100 × 400 mm prisms by monitoring the relative dynamic moduli at every 50 cycles over a maximum of 300 cycles. The nominal freeze-and-thaw cycle of this test consists of repeated changes in the temperature between 4 ± 2 and −18 ± 2 °C within the range of 2–5 h.
4 Test Results
Previous studies (Yang and Lee 2017a, b; Kim et al. 2016) have shown that the use of the modified EMV mix proportioning method originally would not result in low elastic modulus of RCA concrete mixes. This section reports the test results obtained from the drying shrinkage test and the freeze–thaw test.
4.1 Drying Shrinkage
From the age of 20 days, the drying shrinkage difference between different mixes began to appear gradually. A similar difference tendency occurred right after the age of 100 days. At the last measurement at the age of 585 days, the shrinkage strain of the control specimen, 1C-N was 736 μm/m, and that of the plant RCA concrete mix 1C-C was 796 μm/m, indicating about an 8% increase. On the other hand, the shrinkage strain of the airbase RCA concrete mix 1C-D was 954 μm/m, indicating a 30% increase in comparison to the control mix. This is mainly due to the higher unit volume of total mortar in the RCA concrete mixes proportioned by the conventional method, compared to the companion control mix. It was also observed that the air base RCA concrete mix resulted in a worse shrinkage strain, regardless of the similar specific gravity and water absorption when compared to the plant RCA (see Table 2). As mentioned previously, shale particles were found from the air base RCA. This can be explained by the research result of Schuster and McLaughlin (1961), Bentur and Grinberg (1982), Smadi et al. (1989), Ballim (2000), Lee et al. (2013) and Meddah (2015) in that increasing shale content in concrete has a significant effect in increasing both shrinkage and creep strain.
At the 100th cycle, the relative dynamic modules of 1C-N, 1C-C, and 1C-D were 93.9, 91.8, and 81.1%, respectively. However in the case of 1C-D, the relative dynamic modulus was 74.4% after the 200th cycle, not meeting the requirement of 80% by the KS concrete structure specification (Ministry of Land, Infrastructure and Transportation 2009). Generally, the conventional mix design method results in a lower freeze-and-thaw resistance against RCA concrete (Fathifazl 2008; Abbas et al. 2009). Also worth noting is that the plant RCA concrete mix resulted in the worst freeze-and-thaw resistance, regardless of the similar specific gravity and water absorption in comparison to the air base RCA. It may ascribe to be caused by more impurities with unidentified sources contained in the plant RCA. Finally, the relative dynamic modulus of 1C-N, 1C-C, and 1C-D at the 300th cycle were measured as 92.5, 89.8, and 68.9%, respectively. It was shown in Fig. 9 that the 1C-N and the 1C-C resulted in over almost 90% of the relative dynamic modulus even after the 300th cycle.
At the 300th cycle, the relative dynamic modulus of 2C-A mix, based on the conventional mix design with the RCA substitution of 47% was 88.5%, indicating an 8% decrease compared to the control mix 2C-N with the relative dynamic modulus of 95.3%. On the contrary, both 2E-A1 (S = 1) and 2E-A2 (S = 2) mixes proportioned by the modified EMV method with the RCA content of 47 and 73% resulted in the relative dynamic modulus of 95.0 and 93.6%, respectively, being only 0.4 and 2% lower than that of the control mix. Meanwhile if one compares the effect of the mix proportioning method between the conventional mix (2C-A) and the modified EMV mix (2E-A2, S = 2) with the same RCA substitution, it will be clearly seen in Fig. 10 that the relative dynamic modulus of the modified EMV mix exhibits a 5.1% stronger resistance than that of the conventional mix. This is ascribed to a lower total mortar volume that was incorporated in the modified EMV method. However, in the case of 2E-A3, using the modified EMV mix design with the RCA substitution of 73% (S = 3), while the relative dynamic modulus was 82.2% and a reduction of 6.3% was observed in comparison to 2C-A, based on the conventional mix design with the RCA substitution of 47%, too much of a reduction in water, cement, and sand in 61, 112 kg, and 23 kg per m3, respectively, from the 2E-A3 mix affects the freeze-and-thaw result in comparison to the 2C-A mix.
Test results showed that the RCA concrete mixes, with the RCA substitution of 23% (S = 1), 47% (S = 2), and 73% (S = 3), proportioned by the modified EMV method, exhibited a 27, 9, and 3% decrease, respectively, in the drying shrinkage at 585 days in comparison to the companion natural aggregate concrete mix. On the other hand, the RCA concrete mix with a substitution of 47%, proportioned by the conventional method, indicated a 13% increase. Thus, the application of the modified EMV method resulted in RCA concrete with lower drying shrinkage, compared to the RCA concrete proportioned with the conventional method.
The RCA concrete mixes, with a substitution of 23% (S = 1) and 47% (S = 2), proportioned by the EMV method, had strong resistance against the freeze-and-thaw action, being only less than 2% lower than the companion mix, while the RCA concrete mix with a substitution of 47%, proportioned by the conventional method, was 8% higher than the companion mix. Conversely, in the RCA concrete mix with a substitution of 73% (S = 3), proportioned by the modified EMV method, a reduction of 6% in freeze-and-thaw resistance was observed in comparison to the RCA mix with a substitution of 47%, proportioned by the conventional method. This was ascribed to too much reduction of the water, cement, and sand in comparison to the conventional mix.
Test results showed that the modified EMV method yielded a drying shrinkage property of the RCA concrete comparable to that of the companion concrete with natural coarse aggregate. On the other hand, it was observed in the freeze-and-thaw test that the modified EMV method could be marginally applied to the limited condition with S = 2 (with RCA substitution of 47%).
This work was supported by the National Research Foundation of the 2017 Korea Grant funded by the Korean Government from the project titled “Structural Performance of Reinforced Concrete Members made with Revised Equivalent Volume Mix Proportioning Method (2016R1A2B4007932).”
