# Effect of Preliminary Selection of RC Shear Walls’ Ductility Level on Material Quantities

- Hossam El-Sokkary
^{1, 2}View ORCID ID profile and - Khaled Galal
^{1}Email authorView ORCID ID profile

**12**:48

https://doi.org/10.1186/s40069-018-0273-4

© The Author(s) 2018

**Received:**10 March 2017**Accepted:**16 April 2018**Published:**26 July 2018

## Abstract

According to the National Building Code of Canada, the seismic force resisting systems (SFRS) of reinforced concrete (RC) buildings are classified based on their ductility level as being ductile, moderately ductile and conventional construction systems. The selection of the ductility level of an SFRS at the conceptual design phase is primarily governed by the seismicity at the building location, the building dynamic characteristics, and the height limitations specified by the design code. The selected ductility level affects the design loads, the cross-sections and reinforcement of the SFRS components, and hence the overall construction cost. This paper aims to evaluate the effect of the wall’s selected ductility level on the quantities of its constituent materials as well as the rebar detailing. Four multi-storey RC shear wall buildings with different heights located in three different cities in Canada; Toronto, Montreal, and Vancouver, were selected to represent three different seismic hazard zones (low, medium, and high). For each building height and location, the walls were designed using the dynamic analysis procedure of the National Building Code of Canada to reach different ductility levels. The construction material quantity estimates were evaluated and compared to a reference case for each building height, seismic hazard and ductility level. The effect of ductility level on the bars detailing is also investigated. This paper helps the structural engineers to select the cost-effective and constructible RC shear wall system at the conceptual design phase before reaching the detailed design phase.

## Keywords

- conceptual design phase
- reinforced concrete
- shear walls
- ductility
- dynamic analysis
- material quantities

## 1 Introduction

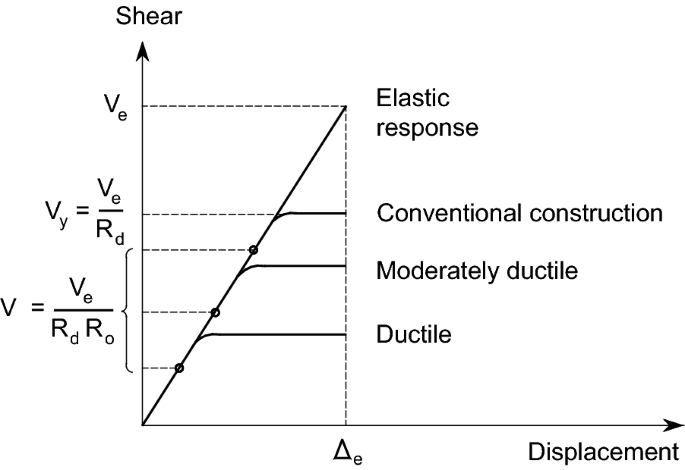

_{d}, and the overstrength-related force modification factor, R

_{o}, is 3.5 × 1.6 = 5.6 for ductile RC shear walls and 2.0 × 1.4 = 2.8 for moderately ductile RC shear walls, in some situations, designing the wall as a ductile system can result in a less economic design without any advantage over the moderately ductile, or even conventional RC walls. This is due to the elaborated stability and ductility requirements in the ductile wall design, which might not be necessary for the particular building and seismic hazard zone under consideration. Therefore, selection of the most suitable RC shear wall system and its level of ductility at the conceptual design stage is an important decision that can reduce the construction cost significantly. Moreover, the choice of the wall’s ductility level affects the building’s overall performance and its lateral deformations under design loads. These deformations have to be limited to the code requirements in order not to hinder the building’s stability or become detrimental to the building’s gravity load resisting system and the non-structural elements (Adebar et al. 2010).

According to the NBCC (2010), the analysis for seismic action is to be conducted using the Dynamic Analysis Procedures (DAP), except that under certain conditions, the Equivalent Static Procedures (ESP) may be applied. Although the DAP consume additional engineering time compared to the ESP, in many cases, the three-dimensional dynamic analysis can provide much more economical design. Performing such detailed 3D analysis would not be feasible at the preliminary design stage where the final decision regarding the SFRS and its ductility level is not made yet. The designer decision about the ductility level of an SFRS at the conceptual design phase will affect the cost and constructability of the project (Pullmann et al. 2003). Therefore, it would be beneficial to provide guidelines to the structural engineer for the preliminary selection of the most suitable RC shear wall system and the most efficient ductility level before reaching the detailed engineering phase of the structure.

The selected level of ductility depends on the type of the SFRS, the seismicity of building location, the building dynamic characteristics, and the height limitations of the design code. Adebar et al. (2014) stated that the selection of ductility level for RC shear wall buildings depends mainly on the seismic hazard of the region. They mentioned that conventional, moderately ductile, and ductile walls are the systems of choice in low, medium, and high seismic hazard zones, respectively.

There are several studies that investigated the seismic performance of RC moment resisting frame structures with different levels of ductility (Filiatrault et al. 1998; Heidebrecht and Naumoski 1999; Sadjadi et al. 2007; Galal and El-Sokkary 2008) and the ductility of RC walls (Paulay et al. 1982; Priestley and Park 1987; Wallace 1994; Adebar et al. 2005). However, the literature review showed that the relationship between the ductility level of an SFRS and the construction material quantities or bars detailing has not been sufficiently investigated for RC shear wall buildings in Canada. Hutchison and Van Geldermalsen (1983) compared the cost of ductile RC walls and walls with limited ductility for two building heights (4- and 8-storey buildings) designed according to the New Zealand Code of Practice. They found that a saving of 9 and 10% of the total building cost was achieved when ductile walls were used for the 4- and 8-storey buildings, respectively. Choopool and Boonyapinyo (2011) studied nine-storey RC moment resisting frames with different levels of ductility and their impact on the construction cost estimates. The frames were designed according to the seismic specifications of Thailand as Ordinary Ductile, Intermediate Ductile, and Special Ductile Frames, and they were compared to the gravity load designed frames. They found that Ordinary Ductile Frame is the most expensive among the ductility levels considered. They also found that the costs of Special and Intermediate Ductile Frames were similar in a low seismic hazard zone due to the requirement for strong column-weak beam.

The objective of this paper is to evaluate the effect of selected SFRS level of ductility on the construction material quantity estimates and the bars detailing of RC shear wall buildings. Four multi-storey RC shear wall buildings with different heights located in three different cities in Canada were selected. Toronto, Montreal, and Vancouver cities were selected to represent low, medium and high seismic hazard zones. 5-, 10-, 15-, and 20-storey buildings were considered in the analyses. For each building height and location, the shear walls were designed according to the NBCC (2010) and the Canadian Standard Association (CSA A23.3-14) (2014) as ductile, moderately ductile, and conventional construction systems. This paper proposes a factor (rebar constructability factor, C.F.) that can reflect the complexity of assembling the wall reinforcement cages which is one of the main concerns affecting the constructability of RC buildings. The construction material quantity estimates and the rebar constructability of each case were evaluated and compared to a reference case. This paper helps the designers for the most suitable selection of ductility level for RC shear wall buildings that satisfies the code requirements, while providing the most economical choice.

## 2 Description of the Selected Buildings

_{w}) being limited to 9.0 m, and a wall thickness (t

_{w}) of 250–400 mm. The shear wall cross-sectional dimensions were maintained along the building height in order to avoid any possible plastic hinging at higher floors. Normal density concrete of a characteristic compressive strength, f

_{c}

^{’}, of 40 MPa was used, and the yield strength of steel reinforcement, f

_{y}, was 400 MPa. The modulus of elasticity of concrete was taken as 28.4 GPa, the concrete density as 24.0 kN/m

^{3}, and concrete Poisson’s ratio was taken as 0.2. It is noted that similar buildings were considered in the literature, e.g., the sample building in the Canadian Concrete Design Handbook (2005) and the numerical study conducted by Boivin and Paultre (2010).

Static and dynamic analyses results of the 32 studied cases.

City | No. of stories | 5 | 10 | 15 | 20 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Ductility level | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | |

Toronto | t | 0.25 | 0.25 | 0.30 | 0.25 | 0.25 | 0.30 | 0.25 | 0.25 | 0.30 | 0.40 | 0.40 | 0.40 |

L | 3.0 | 2.0 | 2.0 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 6.0 | 7.0 | 7.0 | 7.0 | |

T | 1.26 | 2.30 | 2.37 | 2.90 | 3.20 | 3.31 | 3.76 | 3.88 | 4.04 | 4.00 | 4.42 | 4.93 | |

Governing case | S | S | W | W | W | W | W | W | W | W | W | W | |

Correspond. Max. I.D. (%) | 0.38 | 0.84 | 0.10 | 0.14 | 0.14 | 0.12 | 0.16 | 0.16 | 0.14 | 0.16 | 0.16 | 0.16 | |

V | 524 | 395 | 212 | 463 | 463 | 463 | 767 | 767 | 767 | 1103 | 1103 | 1103 | |

M | 3847 | 1765 | 1601 | 7195 | 7195 | 7195 | 18,118 | 18,118 | 18,118 | 34,977 | 34,977 | 34,977 | |

Montreal | t | 0.25 | 0.25 | 0.30 | 0.25 | 0.25 | 0.30 | Not permitted | 0.25 | 0.30 | Not permitted | 0.35 | 0.35 |

L | 6.0 | 5.0 | 4.0 | 7.0 | 5.0 | 5.0 | 6.0 | 6.0 | 7.0 | 7.0 | |||

T | 0.50 | 0.69 | 1.00 | 1.37 | 2.36 | 2.45 | 3.90 | 4.05 | 4.35 | 4.84 | |||

Governing case | S | S | S | S | S | W | W | W | W | W | |||

Correspond. Max. I.D. (%) | 0.26 | 0.40 | 0.50 | 0.37 | 0.49 | 0.06 | 0.14 | 0.12 | 0.17 | 0.17 | |||

V | 1957 | 1122 | 463 | 2248 | 1003 | 505* | 1393* | 706* | 1385* | 1002* | |||

M | 19,312 | 9961 | 3065 | 24,855 | 7736 | 6540 | 16,470 | 16,470 | 31,797 | 31,797 | |||

Vancouver | t | 0.25 | 0.25 | 0.30 | 0.25 | 0.25 | 0.30 | Not permitted | 0.25 | 0.30 | Not permitted | 0.35 | 0.35 |

L | 7.0 | 7.0 | 6.0 | 8.0 | 7.0 | 7.0 | 9.0 | 9.0 | 9.0 | 9.0 | |||

T | 0.41 | 0.46 | 0.58 | 1.14 | 1.53 | 1.60 | 2.26 | 2.36 | 3.33 | 3.73 | |||

Governing case | S | S | S | S | S | S | S | S | S | W | |||

Correspond. Max. I.D. (%) | 0.39 | 0.46 | 0.60 | 0.66 | 1.00 | 1.03 | 0.95 | 1.03 | 1.11 | 0.10 | |||

V | 4267 | 2769 | 1093 | 4002 | 2466 | 1219 | 2873 | 1463 | 3094 | 1419* | |||

M | 46,011 | 29,464 | 11,266 | 62,725 | 35,709 | 17,326 | 50,878 | 25,748 | 65,751 | 35,772 |

## 3 Analysis and Design of Shear Walls

### 3.1 Analysis Assumptions

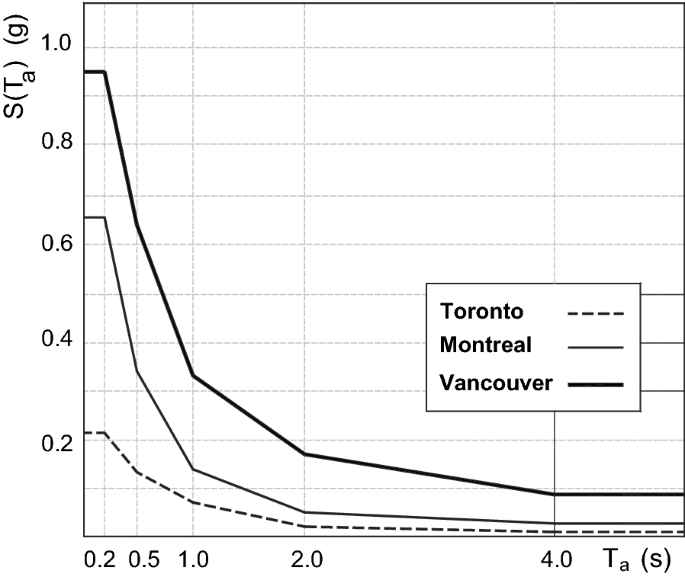

_{a}). A 5% damping ratio was assumed in the analyses. A reasonable assumption of members’ stiffness is required to calculate the structure’s fundamental period of vibration, and hence, to determine the building base shear, internal forces, and displacement demands under the design seismic loads (Adebar and Ibrahim 2002). In order to account for the cracking of RC elements, the member stiffness was reduced based on the effective cracked section properties taken as 20% of the slab gross moment of inertia. For the wall flexural and axial stiffnesses, the values of section property reduction factor, α

_{w}, given by CSA A23.3-14 (Canadian Standards Association CSA 2014) were calculated according to the equation:

_{w}may be taken equal to R

_{o}. The value of α

_{w}was calculated as 0.825, 0.65, and 0.5 for conventional, moderately ductile, and ductile walls, respectively. It is worth noting that the value of α

_{w}in CSA A23.3-04 (2004) was taken as 0.7 for shear walls (assuming an axial load of 10% of the wall axial capacity) without any consideration of the wall ductility level. The shear wall foundation was modeled as fixed supports along the wall length. Similar to the shear wall design example in the Concrete Design Handbook (2005), the columns’ stiffness were neglected in the numerical model, however, their weight was included in the building seismic weight. For the cases where gravity load resisting system need to be checked for the seismically induced deformations, another model that includes the gravity columns was created for each case. The building floors were assumed to act as rigid diaphragms in the lateral direction. The seismic weight per floor for the studied buildings ranged between 5200 and 5900 kN. The number of mode shapes considered in the analysis was taken as 12, representing the first four mode shapes in the three directions (U

_{x}, U

_{y}and R

_{z}). The sum of modal participating mass ratios (MPMR) in each direction considering the first four mode shapes was found to be at least 0.94 of the total mass, which exceeds the minimum required ratio of 0.90 according to the code.

The minimum accidental eccentricity (± 0.1 D_{nx}) specified by NBCC (2010) was considered in the analyses, where D_{nx} is the plan dimension of the building at level x normal to the seismic force direction. The dynamic analyses showed that the studied buildings are not sensitive to torsion due to the selected location of shear walls (on the building perimeter). Therefore, a minimum design base shear from the DAP equals to 80% of the base shear calculated using the ESP was considered as required by the code. It is worth noting that, the 3D modeling is needed in order to account for the torsional effects and to identify if the buildings are sensitive to torsion or not.

The design wind load acting on each building in each location was calculated. The factored base shear due to wind loads was compared to that due to earthquake loads. The wind loads were calculated using the Static Procedures of NBCC (2010) assuming the buildings were located in a rough terrain. The importance factors for wind and seismic load calculations were taken as 1.0, which represents a normal importance.

### 3.2 Shear Wall Design

The shear walls were designed according to the National Building Code of Canada (2010) and the new provisions of the Canadian Standard Association (CSA-A23.3-14) (2014). NBCC (2010) prohibits the conventional construction for shear wall buildings that are more than 40 m and 30 m high for Montreal and Vancouver cities, respectively. Therefore, shear walls designed as conventional construction were limited to 10 stories for Montreal and Vancouver, while for Toronto, there is no height limitation for RC shear wall buildings. The minimum wall thickness was taken as \( \ell_{u} /20 \) for conventional construction (minimum of 250 mm), \( \ell_{u} /14 \) for moderately ductile walls, and \( \ell_{u} /10 \) for ductile walls, where \( \ell_{u} \) is the maximum unsupported height of the wall between two floors. NBCC (2010) limits the buildings’ maximum interstorey drift (I.D.) ratio due to seismic loads to 2.5%, while for the cases governed by wind loads, the maximum I.D. ratio due to the service wind loads is limited to 1/500. The shear wall design was conducted using S-Concrete software (S-Frame Software Inc 2015) and respecting the aforementioned drift limits. The wall reinforcement was assumed to remain constant along the wall height (same as the plastic hinge region). The gravity columns were removed at the shear wall location as shown in Fig. 1. This is because having I-shaped walls has noticeably increased the walls’ stiffness and consequently the seismic force attracted to the building.

_{ic}, exceeds the inelastic rotational demand, θ

_{id}, as required by CSA A23.3-14 (2014). θ

_{id}is calculated as follows:

_{ic}is calculated according to the equation:

Regardless of the ductility level used, the safety of members that are not part of the seismic force resisting system has to be ensured. The safety of gravity load resisting system was checked for each case against the seismically induced deformations according to Cl. 21.11 of CSA-A23.3-14 (2014). For each of the studied cases, the shear wall design aimed that the building deformations due to seismic loads would not change the design of gravity columns when moderately ductile or ductile walls were used.

### 3.3 Analysis Results

Table 1 shows the results of the static and dynamic analyses for the 32 studied cases. The modal analysis of the studied buildings showed that the fundamental period of vibration (T_{a}) for the 5-storey buildings ranged between 0.41 and 2.37 s, for the 10-storey buildings between 1.36 and 3.31 s, for the 15-storey buildings between 2.26 and 4.05 s, and for the 20-storey buildings, T_{a} ranged between 3.33 and 4.93 s. T_{a} from the modal analysis was compared to the empirical expression presented in NBCC (2010), and the fundamental period to be used in the ESP was chosen for each case. For shear wall buildings, T_{a} used in the ESP cannot be greater than twice the empirical expression of NBCC (2010). The upper limit for T_{a} used in the ESP was 0.76, 1.28, 1.74, and 2.16 s for the 5-, 10-, 15- and 20-storey buildings, respectively. The values of T_{a} from the modal analysis of the studied buildings are shown in Table 1.

The table shows the load case that governed the design of shear walls, denoted as (S) for the cases governed by seismic loads, and (W) for the cases governed by wind loads. The table also shows the maximum I.D. ratio of the building due to the governing case of loading. From the analyses, the maximum I.D. ratio due to unfactored seismic loads was 1.17% for the 20-storey ductile building in Vancouver which is less than the 2.5% limit of the code. The maximum I.D. ratio due to unfactored wind loads was 0.17% which is less than the 0.2% limit of the code. The factored shear force, V_{f}, and factored bending moment, M_{f}, at the wall base were also given in Table 1. The building base shear due to seismic actions ranged between 0.004 and 0.039 W_{t} for buildings in Toronto, 0.011–0.14 W_{t} in Montreal, and 0.024–0.30 W_{t} in Vancouver, where W_{t} is the total seismic weight of the building.

_{r}/V

_{f}, and bending moment, M

_{r}/M

_{f}, calculated at the base of the walls, where V

_{r}and M

_{r}are the factored shear and moment resistance of the wall at the base. The shear force overstrength ratio at the wall base ranged between 1.00 and 3.83, while the bending moment overstrength ratio at the wall base ranged between 0.95 and 2.40. The high shear force and bending moment overstrength ratios for some cases were due to the increased dimensions of the walls in order to limit the building’s drift for the safety of gravity columns under seismic loads. It can be noted that the wall nonlinear deformation (\( \Delta_{f} R_{d} R_{o} \)) increases as the wall ductility level increases, even for the same wall dimensions and seismic hazard. This can be attributed to the stiffness reduction factor α

_{w}given by CSA A23.3 (2014) in equation (1) which is a function of the value of R

_{d}. Table 2 also shows the wall inelastic rotational demand due to factored seismic loads, θ

_{id}, and the inelastic rotational capacity of the wall, θ

_{ic}, calculated at the wall plastic hinge region. To ensure a ductile behaviour as required by CSA A23.3-14 (2014), the wall inelastic rotational capacity (calculated using ε

_{cu}= 0.0035) must exceed the wall inelastic rotational demand. Otherwise, special concrete confinement reinforcement is to be used at the wall boundary elements. In this study, no special confinement reinforcement was required for the studied buildings. The table gives the wall design displacement, \( \Delta_{f} R_{d} R_{o} \), that is used for the calculation of θ

_{id}and the wall global drift (\( \Delta_{f} R_{d} R_{o} /h_{w} \)).

Details of the designed shear walls for the 32 studied cases.

City | No. of stories | 5 | 10 | 15 | 20 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Ductility level | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | |

Toronto | V | 1.73 | 1.61 | 3.42 | 1.75 | 2.65 | 3.33 | 2.36 | 2.14 | 3.03 | 3.47 | 3.22 | 3.22 |

M | 0.95 | 1.06 | 1.34 | 1.05 | 1.15 | 1.30 | 1.10 | 1.06 | 1.18 | 1.02 | 1.06 | 1.20 | |

Δ | 41 | 86 | 81 | 85 | 95 | 101 | 100 | 103 | 109 | 70 | 85 | 105 | |

θ | N.R. | 0.003 | 0.004 | N.R | 0.003 | 0.004 | N.R. | 0.004 | 0.005 | N.R. | 0.003 | 0.004 | |

θ | 0.006 | 0.005 | 0.005 | 0.007 | 0.005 | 0.006 | 0.005 | 0.005 | |||||

Montreal | V | 1.05 | 1.46 | 3.33 | 1.06 | 1.58 | 3.83 | Not permitted | 1.37 | 3.28 | Not permitted | 2.30 | 3.17 |

M | 1.03 | 1.08 | 2.40 | 0.98 | 1.64 | 1.85 | 1.22 | 1.40 | 1.22 | 1.22 | |||

Δ | 30 | 44 | 53 | 78 | 96 | 104 | 210 | 225 | 224 | 254 | |||

θ | N.R. | 0.003 | 0.004 | N.R. | 0.003 | 0.004 | 0.003 | 0.004 | 0.003 | 0.004 | |||

θ | 0.011 | 0.011 | 0.006 | 0.007 | 0.005 | 0.005 | 0.005 | 0.005 | |||||

Vancouver | V | 1.00 | 1.00 | 2.12 | 1.00 | 1.01 | 2.12 | Not permitted | 1.00 | 2.28 | Not permitted | 1.17 | 2.88 |

M | 1.00 | 0.98 | 1.32 | 0.95 | 0.96 | 1.33 | 1.05 | 1.87 | 1.02 | 1.64 | |||

Δ | 46 | 50 | 68 | 152 | 201 | 227 | 308 | 336 | 479 | 510 | |||

θ | N.R. | 0.003 | 0.004 | N.R. | 0.004 | 0.006 | 0.004 | 0.005 | 0.004 | 0.005 | |||

θ | 0.01 | 0.014 | 0.007 | 0.009 | 0.006 | 0.007 | 0.006 | 0.006 |

## 4 Ductility and Material Quantities

^{3}for buildings in low seismic zones (Toronto), 66–105 kg/m

^{3}for medium seismic zones (Montreal), and 64–220 kg/m

^{3}for high seismic zones (Vancouver). The table shows that the shear walls designed in high seismic hazard zones had a high steel-to-concrete ratio when designed as conventional construction or moderately ductile systems. This is due to the high seismic hazard and the wall design that aimed to minimize the wall section so that the minimum seismic force would be attracted to the building. Therefore, more reinforcement is required for the wall to withstand the high moment and shear demands.

Quantities of concrete and steel reinforcement material for the 32 studied cases.

City | No. of stories | 5 | 10 | 15 | 20 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Ductility level | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | |

Toronto | Concrete vol. (m | 45 | 30 | 36 | 120 | 120 | 144 | 270 | 270 | 324 | 672 | 672 | 672 |

Walls reinf. (tons) | 2.47 | 2.62 | 3.15 | 4.96 | 7.93 | 10.39 | 13.06 | 17.13 | 21.53 | 28.54 | 38.35 | 43.63 | |

Steel/conc. (kg/m | 55 | 87 | 88 | 41 | 66 | 72 | 48 | 63 | 66 | 42 | 57 | 65 | |

Total cost (unit) | 70 | 56 | 68 | 170 | 199 | 248 | 401 | 441 | 539 | 957 | 1056 | 1108 | |

Montreal | Concrete Vol. (m | 90 | 75 | 72 | 210 | 150 | 180 | Not permitted | 270 | 324 | Not permitted | 588 | 588 |

Walls reinf. (tons) | 9.48 | 7.49 | 5.19 | 13.96 | 10.57 | 13.72 | 18.97 | 22.75 | 40.79 | 40.79 | |||

Steel/Conc. (kg/m | 105 | 100 | 72 | 66 | 70 | 76 | 70 | 70 | 69 | 69 | |||

Total cost (unit) | 185 | 150 | 124 | 350 | 256 | 317 | 460 | 551 | 996 | 996 | |||

Vancouver | Concrete Vol. (m | 105 | 105 | 108 | 240 | 210 | 252 | Not permitted | 405 | 486 | Not permitted | 756 | 756 |

Walls reinf. (tons) | 23.11 | 14.78 | 7.40 | 49.13 | 29.00 | 16.24 | 42.79 | 32.18 | 54.00 | 54.20 | |||

Steel/Conc. (kg/m | 220 | 141 | 68 | 205 | 138 | 64 | 106 | 69 | 71 | 72 | |||

Total cost (unit) | 336 | 253 | 182 | 731 | 500 | 414 | 833 | 808 | 1296 | 1298 |

Table 3 also shows the total material cost estimate (concrete and steel reinforcement) for each of the studied cases. In order to have an estimate of the total material cost, the price of 1 ton of steel reinforcement bars was assumed to be equal to the price of 10 m^{3} of concrete. This value was an average value that was selected based on current concrete and steel reinforcement prices in Canada. The unit used for the total material cost given in the table represents the price of 1 m^{3} of concrete material, i.e., the total cost of concrete and steel material used for the conventional walls of the 5-storey building in Toronto is equal to 70 times the price of 1 m^{3} of concrete.

From Fig. 4, it can be seen that for low seismic hazard zones, designing the walls as moderately ductile required the least material cost for low-rise buildings (represented by the 5-story building in this study). A saving of 19% of the construction cost was achieved when moderately ductile walls were used compared to conventional construction. For medium- and high-rise buildings, the conventional construction required the least material quantities. For these buildings, the ductile design led to an increase of the walls’ construction material by up to 20% more concrete and 109% more steel reinforcement. This is due to wind loads that governed the design of medium- and high-rise buildings in low seismic hazard zones, meanwhile imposing the stability and ductility requirements for ductile walls that are not required in this case.

In medium seismic hazard zones, designing the walls as ductile walls required the least material quantities for low-rise buildings. Designing the walls as ductile ones resulted in a saving of 33% in the material cost compared to the conventional construction, and 17% compared to the moderately ductile design. However, for medium- and high-rise buildings, the moderately ductile design led to the least material quantities due to the higher wind loads that governed the design in these cases. It should be noted that conventional construction is not permitted by NBCC (2010) for RC shear wall buildings higher than 40 m located in medium seismic hazard zones.

For high seismic hazard zones, the figure shows that ductile wall design required the least material cost for all of the studied cases. The ductile wall design provided a saving up to 46% in the material cost compared to conventional construction. The saving associated with the use of a ductile system is more noticeable for low-rise buildings. Moreover, the moderately ductile shear walls are not permitted for RC shear wall buildings higher than 60 m (20 stories) located in high seismic zones.

It is worth noting that the concrete and steel reinforcement quantities of the foundation system are generally proportional to those of the building’s RC shear walls. The higher wall moment at the base would result in a bigger wall foundation with more reinforcement. Moreover, the formwork used in the shear wall construction will be directly affected by the concrete volume (shown in Table 3), i.e., the less amount of concrete used in the wall construction would reduce the formwork-related cost.

## 5 Ductility and Rebar Constructability

In addition to the amount of concrete and steel reinforcement material used for RC shear wall construction, the rebar work is another factor that affects the economy and constructability of RC buildings. Rebar work accounts for about 30% of the entire reinforcing cost for RC construction, and is also a time‐consuming element of the construction process (Kang et al. 2013). Despite that ductile wall design involves stricter requirements that may increase the rebar work compared to conventional construction, the reduced design forces in case of ductile walls can result in a smaller amount of steel reinforcement (as was seen in Fig. 4), which could lead to less rebar work.

_{VL}and S

_{HZ}, the total amount of the concentrated reinforcement at the end zones, As

_{conc}, the spacing of the 10 M hoops, S

_{Hoops}, and the length of the confined end zone, L

_{COL}. In order to evaluate the rebar work associated with each level of ductility, the total number of bar bends, B., bar cuts, C., and tie wraps, T., used in the construction of one wall were calculated for each of the studied cases. This number (noted as the rebar constructability factor, C.F.) can reflect the complexity of assembling the wall reinforcement cages which is one of the main factors affecting the constructability of RC buildings (Kang et al. 2013). In the calculation of the proposed C.F., the time and complexity of each of the three procedures were assumed to be equal. Table 4 shows the data required for the calculation of the C.F. for each shear wall design. The C.F. for each ductility level was compared to a reference value, which is the conventional construction case, except when conventional construction is not permitted by the code. In that case, the moderately ductile design was the reference case. The values of the C.F. compared to the reference case are depicted in Fig. 6 for each building height and location.

Reinforcement details and rebar constructability of the analyzed buildings.

City | No. of stories | 5 | 10 | 15 | 20 | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

Ductility level | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | Conv. | Mod. Duct. | Duct. | |

Toronto | S | 500 | 320 | 260 | 500 | 320 | 260 | 500 | 320 | 260 | 320 | 200 | 200 |

S | 500 | 320 | 260 | 500 | 320 | 260 | 500 | 320 | 260 | 260 | 200 | 200 | |

As | 8–20 | 8–15 | 8–30 | 8–15 | 8–20 | 8–25 | 8–25 | 12–20 | 16–20 | 16–20 | 8–30 | 12–30 | |

S | 250 | 90 | 120 | 250 | 120 | 150 | 250 | 120 | 120 | 320 | 180 | 180 | |

L | 250 | 250 | 300 | 250 | 250 | 300 | 250 | 250 | 300 | 400 | 400 | 400 | |

No. of B. | 738 | 1870 | 1499 | 1462 | 2903 | 2496 | 2190 | 4359 | 4498 | 4727 | 5937 | 5941 | |

No. of C. | 216 | 553 | 401 | 404 | 931 | 699 | 600 | 1405 | 1208 | 1320 | 2073 | 2081 | |

No. of T. | 780 | 1708 | 1577 | 1800 | 3875 | 4600 | 3420 | 8531 | 11,423 | 11,769 | 21,933 | 22,600 | |

C.F. | 1734 | 4131 | 3477 | 3666 | 7709 | 7794 | 6210 | 14,294 | 17,130 | 17,816 | 29,943 | 30,622 | |

Relative | 1.00 | 2.38 | 2.01 | 1.00 | 2.10 | 2.13 | 1.00 | 2.30 | 2.76 | 1.00 | 1.68 | 1.72 | |

Montreal | S | 500 | 320 | 260 | 500 | 320 | 260 | Not permitted | 320 | 260 | Not permitted | 220 | 220 |

S | 400 | 320 | 260 | 400 | 320 | 260 | 320 | 260 | 220 | 220 | |||

As | 20–30 | 12–25 | 8–25 | 16–25 | 8–25 | 12–25 | 16–20 | 12–25 | 16–25 | 16–25 | |||

S | 250 | 125 | 150 | 250 | 125 | 150 | 120 | 150 | 150 | 150 | |||

L | 600 | 400 | 300 | 400 | 250 | 300 | 300 | 300 | 300 | 300 | |||

No. of B. | 1028 | 1426 | 1265 | 2740 | 2811 | 2508 | 4361 | 3744 | 5165 | 5165 | |||

No. of C. | 391 | 504 | 383 | 710 | 927 | 723 | 1409 | 1050 | 1493 | 1493 | |||

No. of T. | 1635 | 2419 | 2300 | 3720 | 4545 | 5923 | 9000 | 9923 | 20,618 | 20,618 | |||

C.F. | 3054 | 4348 | 3948 | 7170 | 8283 | 9153 | 14,769 | 14,718 | 27,277 | 27,277 | |||

Relative | 1.00 | 1.42 | 1.29 | 1.00 | 1.16 | 1.28 | 1.00 | 1.00 | 1.00 | 1.00 | |||

Vancouver | S | 400 | 320 | 260 | 500 | 320 | 260 | Not permitted | 320 | 260 | Not permitted | 280 | 220 |

S | 170 | 220 | 260 | 220 | 260 | 260 | 320 | 260 | 280 | 220 | |||

As | 52–30 | 36–25 | 8–30 | 56–30 | 36–25 | 8–25 | 32–25 | 16–25 | 20–30 | 20–25 | |||

S | 250 | 125 | 150 | 250 | 125 | 150 | 175 | 150 | 175 | 150 | |||

L | 1150 | 900 | 300 | 1800 | 900 | 300 | 900 | 350 | 500 | 400 | |||

No. of B. | 2227 | 2741 | 1281 | 4219 | 5330 | 2520 | 5783 | 3772 | 7792 | 9187 | |||

No. of C. | 684 | 889 | 415 | 1141 | 1558 | 747 | 1747 | 1106 | 2385 | 2337 | |||

No. of T. | 4221 | 5302 | 3223 | 7255 | 9932 | 7369 | 12,640 | 14,677 | 18,600 | 27,927 | |||

C.F. | 7133 | 8931 | 4919 | 12,615 | 16,819 | 10,636 | 20,171 | 19,555 | 28,777 | 39,452 | |||

Relative | 1.00 | 1.25 | 0.69 | 1.00 | 1.33 | 0.84 | 1.00 | 0.97 | 1.00 | 1.37 |

From the figure, it can be seen that conventional construction design required the least rebar work for shear wall buildings located in low and medium seismic hazard zones when conventional construction design is allowed by the code. However, for high seismic hazard zones, the ductile wall design showed the least rebar work when the wall design is governed by the seismic loads.

The results of the current study can be used for the selection of the most suitable ductility level for RC shear wall buildings located in similar seismic hazard zones. According to the relative cost of construction material, formwork, and rebar work, the engineer can decide which ductility level would be the economic choice for a specific building height and location. However, the conclusions derived in this study would be applicable for buildings with similar dimensions and occupancies. In order to generalize the conclusions, more analyses are to be conducted for other cases to account for the effect of soil condition, number and value of the building spans, and the location of walls on the building floor plan. The analyses in this study were conducted for buildings located in three cities that represent three different seismic hazard zones in Canada. The conclusions derived from these analyses can be applicable for other locations or countries with similar seismic hazard and for shear wall buildings with seismic force reduction factors similar to those of the NBCC (2010).

## 6 Conclusions

Four multi-storey reinforced concrete (RC) shear wall buildings with different heights located in three different cities in Canada were selected. The cities were selected to represent three different seismic hazard zones (low, medium and high). For each building height and location, the shear walls were designed as ductile, moderately ductile, or conventionally constructed systems. In low seismic hazard zones, it was found that conventional construction design required the least construction material quantities for medium- and high-rise shear wall buildings (10-storey high or more). However, for low-rise buildings (represented by the 5-storey building), a saving of 19% in the construction material cost was achieved when moderately ductile walls were used. In medium seismic hazard zones, the moderately ductile design required the least material quantities for medium- and high-rise shear wall buildings, while for the low-rise buildings, a saving of 33% in the material cost was achieved when ductile design was applied. In high seismic hazard zones, the ductile wall design required the least material cost for all building heights. They provided a saving up to 46% of the total material cost compared to the conventional construction.

The analyses and design results showed that conventional construction design required the least rebar work for RC shear wall buildings located in low and medium seismic hazard zones when conventional construction design is permitted by the code. However, for high seismic hazard zones, the ductile wall design showed the least rebar work. Given the material quantity estimate and the rebar work associated with each ductility level for a certain building height and location, the structural engineer can decide the most economical and constructible design for RC shear wall buildings at the conceptual design stage.

## Notes

## Declarations

### Authors’ contributions

HE carried out the numerical and analytical studies, and drafted the manuscript. KG participated in the paper interface and reviewed the manuscript drafts. Both authors read and approved the final manuscript.

### Acknowledgements

The financial support of the Natural Science and Engineering Research Council of Canada (NSERC) is highly appreciated. The authors also would like to thank Stantec for their support through this research project.

### Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional ailiations.

**Open Access**This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

## Authors’ Affiliations

## References

- Adebar, P., Bazargani, P., Mutrie, J., & Mitchell, D. (2010). Safety of gravity-load columns in shear wall buildings designed to Canadian standard CSA A23.3.
*Canadian Journal of Civil Engineering,**37*(11), 1451–1461.View ArticleGoogle Scholar - Adebar, P., & Ibrahim, A. (2002). Simple nonlinear flexural stiffness model for concrete structural walls.
*Journal of Earthquake Spectra,**18*(3), 407–426.View ArticleGoogle Scholar - Adebar, P., Mutrie, J. De Vall, R., and Mitchell, D. (2014). Seismic design of concrete buildings: The 2015 Canadian building code. In Proceedings of the 10th U.S. National Conference on Earthquake Engineering, Earthquake Engineering Research Institute, Anchorage, AK.Google Scholar
- Adebar, P., Mutrie, J., & DeVall, R. (2005). Ductility of concrete walls: The Canadian seismic design provisions 1984 to 2004.
*Canadian Journal of Civil Engineering,**32*(6), 1124–1137.View ArticleGoogle Scholar - Boivin, Y., & Paultre, P. (2010). Seismic performance of a 12-storey ductile concrete shear wall system designed according to the 2005 National Building Code of Canada and the 2004 Canadian Standard Association Standard A23.3.
*Canadian Journal of Civil Engineering,**37*(1), 1–16.View ArticleGoogle Scholar - Canadian Standards Association CSA. (2004). Design of concrete structures A23.3-04, Mississauga, Ontario, Canada.Google Scholar
- Canadian Standards Association CSA. (2014). Design of concrete structures A23.3-14, Mississauga, Ontario, Canada.Google Scholar
- Choopool, N., & Boonyapinyo, V. (2011). Seismic performance evaluation of reinforced concrete moment resisting frames with various ductility in low seismic zone.
*American Journal of Engineering and Applied Sciences,**4*(1), 17–36.View ArticleGoogle Scholar - CSA CAN/CSA-A23.3-04 (2005). Concrete design handbook. Ottawa (Ontario): Canadian Portland Cement Association.Google Scholar
- CSI. (2013).
*Analysis reference manual for SAP2000, ETABS, and SAFE*. California: Computers and Structures Inc.Google Scholar - Filiatrault, A., Lachapelle, E., & Lamontagne, P. (1998). Seismic performance of ductile and nominally ductile reinforced concrete moment resisting frames. I. Experimental study.
*Canadian Journal of Civil Engineering,**25*(2), 331–341.View ArticleGoogle Scholar - Galal, K., & El-Sokkary, H. (2008). Analytical evaluation of seismic performance of RC frames rehabilitated using FRP for increased ductility of members.
*Journal of Performance of Constructed Facilities (ASCE),**22*(5), 276–288.View ArticleGoogle Scholar - Heidebrecht, A., & Naumoski, N. (1999). Seismic performance of ductile medium height reinforced concrete frame buildings design in accordance with the provisions of the 1995 National Building Code of Canada.
*Canadian Journal of Civil Engineering,**26*(5), 606–617.View ArticleGoogle Scholar - Hutchison, D., & Van Geldermalsen, T. (1983). Optimum design of reinforced concrete shear walls.
*Bulletin of the New Zealand National Society for Earthquake Engineering,**17*(3), 185–197.Google Scholar - NBCC (2010). National Building Code of Canada. Associate Committee on the National Building Code, National Research Council of Canada, Ottawa, Ontario.Google Scholar
- Paulay, T., Priestley, M., & Synge, A. (1982). Ductility in earthquake resisting squat shear walls.
*ACI Journal,**79*(4), 257–269.Google Scholar - Priestley, M., & Park, R. (1987). Strength and ductility of concrete bridge columns under seismic loading.
*ACI Structural Journal,**84*(1), 61–76.Google Scholar - Pullmann, T., Skolicki, Z., Freischlad, M., Arciszewski, T., De Jong, K., SchnellenbachHeld, M. (2003). Structural design of reinforced concrete tall buildings: Evolutionary computation approach using fuzzy sets. In Proceedings of the 10th International Workshop of the European group for intelligent computing engineering, Delft, Netherlands, pp. 53–61.Google Scholar
- Sadjadi, R., Kianoush, M., & Talebi, S. (2007). Seismic performance of reinforced concrete moment resisting frames.
*Engineering Structures,**29*(9), 2365–2380.View ArticleGoogle Scholar - Wallace, J. (1994). New methodology for seismic design of RC shear walls.
*Journal of Structural Engineering,**120*(3), 863–884.View ArticleGoogle Scholar - S-Frame Software Inc. (2015). S-concrete: Concrete section design, version 11.00.31. Maycrest Way, Richmond, B.C., Canada.Google Scholar
- Kang, S., Park, S., Jang, S., Jin, J., Eom, T., & Park, H. (2013). Constructability and economic evaluation of continuous hoop reinforcement method.
*Journal of the Korea Institute of Building construction,**13*(3), 291–305.View ArticleGoogle Scholar
