Abstract

This paper proposes an advanced near-surface-mounted (NSM) technique with an Fe-based shape-memory alloy (Fe-SMA) strip which can solve issues of low workability and reduced ductility of reinforced concrete (RC) beams strengthened with an NSM technique using prestressed fiber-reinforced polymer (FRP) strips in the concrete tension section. The flexural behavior of the RC beam strengthened by the NSM technique with the Fe-SMA strip was investigated. A total of seven RC beams were tested by four-point bending tests under displacement control. The type of reinforcements, the quantity of Fe-SMA strips, and the pre-straining level of the Fe-SMA strips were considered as experimental variables. Cracking load, yielding load, and ultimate load increased, respectively, with larger quantities of Fe-SMA strip. In addition, activation of embedded Fe-SMA in the concrete by electrical resistance heating effectively induces a prestressing force on the concrete beam, resulting in a cambering effect. The introduced prestressing force to the RC beam by activation of the Fe-SMA increased the crack and yielding loads, and did not decrease the ductility of the RC beam compared to the RC beam with non-activated Fe-SMA. It can be concluded from the test results that the strengthening technique using the recovery stress of the Fe-SMA strip as the prestressing force solves the various problems of the existing prestressing strengthening systems, meaning that Fe-SMA can be used as a substitute for conventional prestressing strengthening systems.

Keywords

  • NSM reinforcing method
  • prestressed strengthening material
  • Fe-SMA strip
  • pre-straining level
  • prestressing force
  • ductility

1 Introduction

Various materials and techniques have been developed to strengthen damaged or deteriorated civil structures. Fiber reinforced polymer (FRP) sheets and plates are the most widely used strengthening materials (Triantafillou and Plevris 1992; Elsanadedy et al. 2013; Loreto et al. 2013). The most common strengthening techniques used for deteriorated structures are external bonding reinforcement (EBR) and near-surfaced-mounted (NSM) methods (Kim 2015). The EBR technique is a strengthening method that improves structural performance by attaching steel or FRP plates on the surface of a structure. However, the strengthening material in the EBR method is exposed, making it vulnerable to damage due to fire or corrosion. Furthermore, different thermal coefficients of the concrete and the material can cause debonding, leading to a premature failure of either the epoxy resin matrix or the strengthening material (Park 2003; Kim 2005; Barros et al. 2006; Casadei et al. 2006; Choi et al. 2010; Hong et al. 2014; Bilotta et al. 2015; Coelho et al. 2015). NSM technology was proposed to overcome such problems of the EBR method. NSM involves inserting strengthening materials such as FRP bars, FRP strips, or steel strands into the grooves of concrete cover which needs to be strengthened, and then bonding the strengthening material with a cement mortar or epoxy resin matrix as a filler inside a groove (De Lorenzis et al. 2002; El-Hacha and Rizkalla 2004; El-Hacha and Gaafar 2011; El-Hacha and Soudki 2013). Recently, various researches on the strengthening civil structures using FRP materials for NSM methods have been conducted (El-Hacha and Rizkalla 2004; Gaafar and El-Hacha 2008; El-Hacha and Gaafar 2011; El-Hacha and Soudki 2013). Even though researches have not found a way to completely solve the premature failure of the strengthening material in the EBR method, the considerable improvement of the flexural behavior of reinforced concrete (RC) beams strengthened by the NSM method compared to the RC beams strengthened by the EBR method has been demonstrated. Prestressing strengthening methods (PSMs) are used for concrete which needs to improve its flexural behavior in terms of serviceability and deflection (Yang et al. 2009). For decades, PSMs have been performed by fastening the post-tensioned material on the tensile side of a concrete beam (Rosenboom and Rizkalla 2006). Compressive stresses at the bottom of the concrete member and tensile stresses at the top of the concrete member are produced by the prestressing force transmitted from the prestressed strengthening material, which is known as the cambering effect (El-Hacha et al. 2001). The RC beam strengthened by the prestressed strengthening material has various advantages, such as reducing both deflection and crack width, increasing load-carrying capacity, and resistance of fatigue failure (El-Hacha et al. 2001; Woo et al. 2008). Among the PSMs, the NSM technique using prestressed FRP material, referred to as prestressed FRP NSM, has been studied by many researchers failure (El-Hacha et al. 2001; Nordin 2003; Hong et al. 2006; Woo et al. 2008). It has been reported that the prestressed FRP NSM technique increases cracking and yielding loads and reduces deflection at mid-span and crack width for the strengthened RC beams. However, this technique faces the critical problem of reduced ductility of the strengthened RC beam (Badawi and Soudki 2009). The ductility of the strengthened RC beam is reduced with higher prestressing level of the prestressed FRP material, which finally causes failure at a smaller deflection. The reason for this is that a large part of the strain capacity of the FRP reinforcement is already used during prestressing. The deformability of the RC beam strengthened by prestressed FRP material is greatly reduced, resulting in all specimens being strengthened by the prestressed FRP material failing by rupture of the FRP material (Rezazadeh et al. 2015; Kara et al. 2016). The decreased ductility of the strengthened RC beam is because of increased tensile reinforcement and the prestressing effect, which leads to less energy dissipation. Furthermore, in the prestressed FRP NSM technique, it is difficult to assign and secure the FRP material in the groove and to apply a pre-tension force in the groove (Shahverdi et al. 2016). This is the reason why the prestressed FRP NSM technique is not widely used in practice.

The NSM technique using shape-memory alloys (SMAs) can be an alternative way to solve the abovementioned problems of the prestressed FRP NSM technique. SMAs are very widely known unique materials which have the ability to return to a pre-defined (memorized) shape when heated to a certain temperature, which is called the shape-memory effect (SME). An NiTi-based SMA (NiTi-SMA) having the SME and super elasticity is used in various fields such as the aerospace and medical industries (Miller and Lagoudas 2000). However, it is not feasible to use the NiTi-SMA as the strengthening material for retrofitting civil structures because of its high production cost. Fe-based SMAs (Fe-SMAs) were developed by Sato et al. in 1982, and their wide shape-memory capacity was subsequently studied by many researchers (Sato et al. 1982; Kajiwara et al. 2001; Farjami et al. 2004; Dong et al. 2009; Lee et al. 2013). Since the 2000s, Fe-SMA material to strengthen civil structures has been researched (Abdulridha et al. 2013; Cladera et al. 2014; Czaderski et al. 2014; Shahverdi et al. 2016). Deformation recovery of an embedded Fe-SMA strip in concrete is restrained, resulting in compressive force—namely prestressing force.

The most attractive advantage of using the Fe-SMA NSM technique is that no frictional loss at initial prestressing stage occurs because uniform compression is generated along the entire length of the Fe-SMA strip, and the prestress loss due to creep and drying shrinkage can be easily recovered by re-applying electric resistance heating to the Fe-SMA strip (Shin and Andrawes 2010).

This paper presents a study on the feasibility of Fe-SMA strips as an NSM strengthening material for civil structures. The purpose of this paper is to acquire greater flexural capacity and ductility of RC beams by employing the Fe-SMA NSM technique. The flexural behavior of seven RC beams was investigated with four-point bending tests. The type of reinforcement material, the number of Fe-SMA strips, and the pre-straining level of the Fe-SMA strips were considered as experimental variables.

2 Experimental Program

2.1 Test Specimens

A total of seven RC beams were produced to evaluate the flexural behavior of RC beams strengthened with the Fe-SMAs using the NSM technique. The cross-section of the specimens was 300 mm × 200 mm, and the depth of concrete cover was consistently 30 mm. All specimens had a total length and a net length of 3000 and 2700 mm, respectively. Three deformed steel bars with a nominal diameter of 10 mm were embedded in the RC beam as tensile reinforcements for restraining the opening of flexural cracks. For shear, no stirrup was required because of a sufficient shear-loading capacity by the concrete web member. Figure 1 presents specimen details.
Fig. 1
Fig. 1

Specimen details.

The type of strengthening, the number of the Fe-SMA strips, and the pre-straining levels of the Fe-SMA strips were considered as experimental variables. A carbon fiber reinforced polymer (CFRP) strip and the Fe-SMA strip were used as the strengthening materials. The cross-sectional areas of the Fe-SMA strips were 30, 60, and 90 mm2, respectively. The Fe-SMA strips were stretched by up to 0.0, 2.0, and 4.0% of the pre-straining levels. In Table 1, the specimens were named accordingly: the first term “SL” represents the slab beam, the second term “60S” refers to the cross-sectional area of the Fe-SMA strip, and the CFRP strip was denoted as “60C”. The third term “2” represents the pre-straining level of the Fe-SMA strip. For example, “SL-60S-2” denotes the slab beam strengthened with the NSM method using the Fe-SMA strip which was pre-strained of 2.0%. All test variables are given in Table 1. Furthermore, an un-strengthened beam with the strengthening material was fabricated and named as “SL-CTRL.”
Table 1

Test variables.

Specimen ID

Strengthening material

Strengthening material area (mm2)

The number of strengthening materials

Pre-strain (%)

SL-CTRL

SL-60C-0

CFRP strip

60

2

0

SL-30S-4

Fe-SMA strip

30

1

4

SL-60S-0

Fe-SMA strip

60

2

0

SL-60S-2

Fe-SMA strip

60

2

2

SL-60S-4

Fe-SMA strip

60

2

4

SL-90S-4

Fe-SMA strip

90

3

4

2.2 Materials Used

The Fe-SMA used in this study was manufactured by R-Company (Switzerland). The Fe-SMA plate had a width and a thickness of 100 mm and 1.5 mm, respectively. The Fe-SMA plate was cut into tensile specimens with a width of 10 mm and a length of 330 mm. Figure 2 shows the stress–strain responses of the Fe-SMA strip from the direct tensile tests. In Fig. 2, 0.2% offset yielding point method was applied to define the modulus of elasticity since a yield point on the stress–strain response of the Fe-SMA strip was not easily defined. In Table 2, the mechanical properties of the Fe-SMA strip are summarized.
Fig. 2
Fig. 2

Stress–strain curves from direct tension test for Fe-SMA.

Table 2

Mechanical properties of Fe-SMA.

Modulus of elasticity (MPa)

Strain corresponding to yield strength (mm/mm)

Yield strength (MPa)

Ultimate strength (MPa)

Elongation (%)

1.33 × 105

0.00547

463

863

12.4

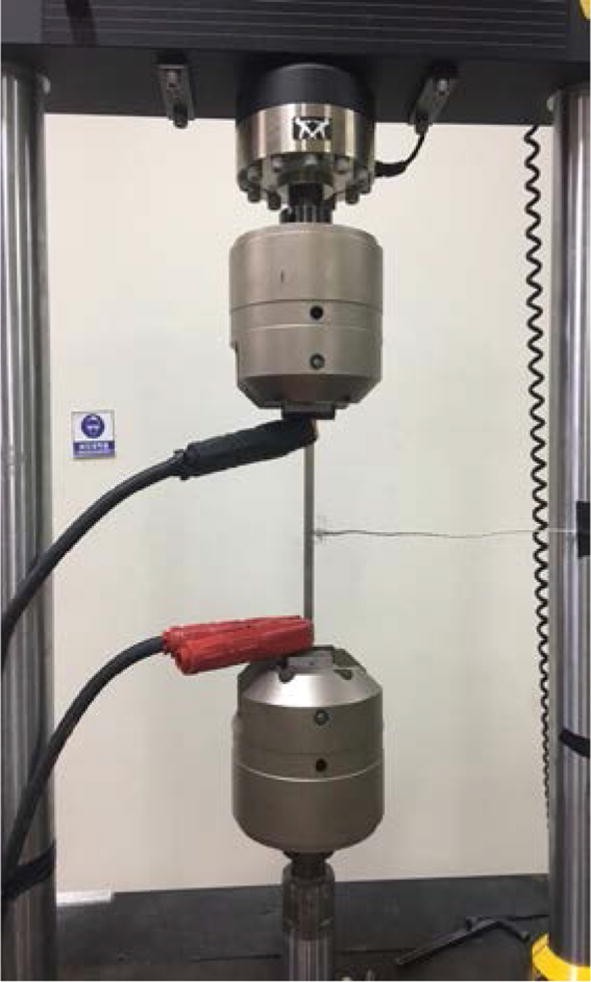

Fig. 3
Fig. 3

Electric resistance heating of exposed Fe-SMA.

To evaluate the recovery stress of the exposed Fe-SMA strip, the Fe-SMA strips were stretched to 2.0 and 4.0% of the pre-straining level (Fig. 3). After the strain of this strengthening material reached the target strain value, the tensile load was totally removed. In order to avoid buckling failure due to the thermal expansion effect on the Fe-SMA strip, a pre-tensile stress of 50 MPa, conservatively calculated using the coefficient of thermal-expansion on it, was applied. An electric pulse with a density of 2 A/mm2 was applied to create electric resistance heating on the Fe-SMA strip. After the applied temperature by electric resistance heating reached 160 °C, the electric resistance heating system was turned off to cool the heated Fe-SMA strip to ambient temperature. The temperature on the mid-length of the Fe-SMA strip was assessed with an insulating K-type thermocouple, and the recovery stress was calculated with the tensile force divided by the nominal area of the Fe-SMA strip. The tensile force was measured with a load cell in the tensile test machine. Figure 4 shows a diagram of the recovery stress on the temperature of the exposed Fe-SMA strip. The recovery stresses of the exposed Fe-SMA strip with 2.0 and 4.0% pre-straining level were 308 and 348 MPa, respectively. With this result, it could be concluded that an insignificant correlation was shown between the pre-straining level and the recovery stress of the exposed Fe-SMA strip.

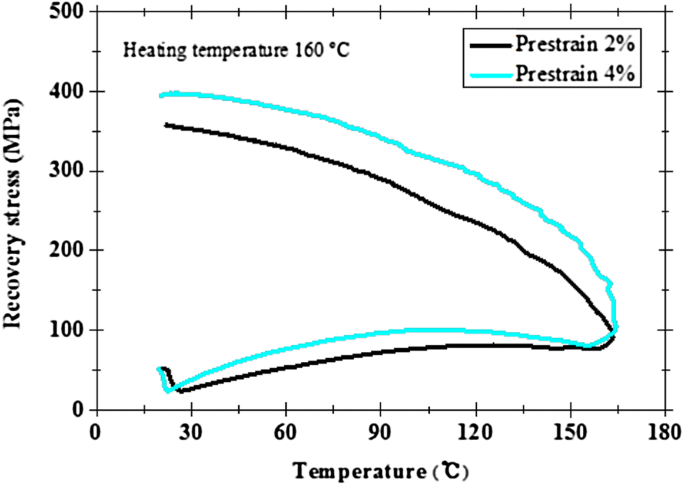

Fig. 4
Fig. 4

Recovery stress–temperature curve of exposed Fe-SMA.

The RC beam specimens were fabricated with a ready-mixed concrete. Table 3 presents the mixture properties of the concrete used in terms of water–cement ratio (W/C), sand percent of total aggregate by volume (S/a), water (W), cement (C), sand (S), gravel (G), and water-reducing admixture (Ad). The maximum aggregate size of the concrete mixture was 25 mm, and the slump and the compressive strength were 150 mm and 28 MPa, respectively. To confirm the compressive strength of the concrete, three cylinders of 100 mm were cast in accordance with ASTM C39/39 M (ASTM 2001) at the time of the RC beam casting. The cylinders were cured with identical curing conditions to the RC beams. The averaged compressive strength of the cylinder specimens was 32.3 MPa at 28 curing days.
Table 3

Mixture design of concrete used.

W/C (%)

S/a (%)

Gmax (mm)a

Slump (mm)

Unit weight (kg/m3)

W

C

S

G

Adb

42.3

50.4

25

150

164

388

954

908

3.1

aMaximum gravel size.

bWater-reducing admixture.

Mechanical properties of the steel rebar as the tensile reinforcement were investigated by a direct tensile test. The direct tensile tests with three deformed steel rebars with a nominal diameter of 10 mm were conducted in accordance with ASTM A370 (ASTM 2016b), resulting in 200 GPa, 480 MPa, and 590 MPa of modulus of elasticity, yielding strength, and ultimate strength, respectively. The mentioned mechanical properties of the steel rebar are given in Table 4.
Table 4

Mechanical properties of the steel rebar used.

Modulus of elasticity (MPa)

Nominal diameter (mm)

Yield strength (MPa)

Ultimate strength (MPa)

Elongation (%)

2.0 × 105

9.53

480

590

17.1

In this paper, a rapid hardening cement was used to bond the Fe-SMA strengthening material to the concrete. Additionally, it was used as a filler for the groove on the concrete cover. According to ASTM C1329 (ASTM 2016a), the compressive strength of the rapid hardening cement was measured, resulting in 25 MPa at 2 h, 30 MPa at 3 h, 40 MPa at 24 h, and 80.5 MPa at 28 days.

2.3 Strengthening Procedure

2.3.1 Pre-strain

The Fe-SMA strip was cut with a size of 1.5 mm thickness, 20 mm width, and 3000 mm length. To avoid structural damage of the Fe-SMA strip caused by frictional resistance heating, a water-jet cutting machine was employed. As an additional step, mechanical sandblasting on the surface of the Fe-SMA strip was performed to increase the bonding strength between the Fe-SMA strip and the rapid hardening cement mortar. In order to maximize the recovery stress on the Fe-SMA strip, the cut Fe-SMA strip was stretched up to 2.0 and 4.0% by using a tensile machine, as shown in Fig. 5. This machine consists of two parts: the end anchor to fasten the Fe-SMA strip and the hydraulic tensioning system to apply the pre-tensile stress on the Fe-SMA strip. The applied pre-tensile force was maintained for 30 s to make the Fe-SMA strip stable, and then removed until the residual stress on the Fe-SMA strip reached zero. Residual strains of 2.0 and 4.0% of the pre-strained Fe-SMA strip, after the tension force was completely removed, were 1.07 and 2.92%, respectively, which were close to the residual strains estimated by Yeon’s equation (Yeon 2017). The Fe-SMA strip was punched with a 10 mm diameter hole which was 20 mm away from both ends to connect copper clips for supplying the electricity (see Fig. 7a). As well as the copper clips, insulating K-type thermocouples for assessing the temperature on the surfaces of the Fe-SMA strip at mid-length were used.
Fig. 5
Fig. 5

Overview of the pre-straining system.

2.3.2 Embedding Fe-SMA Strip

The Fe-SMA strengthening material was inserted in a groove fabricated in the concrete cover with the rapid hardening cement mortar. The groove with a size of 15 × 30 mm was fabricated along the length of the RC beam in the tension region by a grooving machine. As shown in Figs. 6 and 7, the Fe-SMA strip was embedded with a length of 2430 mm, which is 90% of the net length in the groove with the cement mortar. This means that the prestressing force was applied on 90% of the net length to prevent crack developments at the tension region due to excessive negative moment at the mid-span during prestressing.

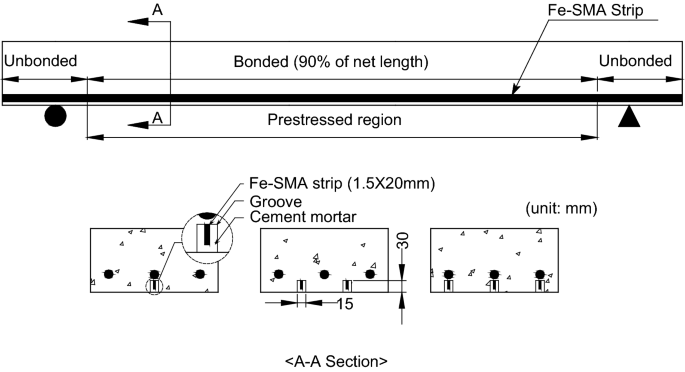

Fig. 6
Fig. 6

Details of the bonded Fe-SMA inside the concrete beam.

Fig. 7
Fig. 7

Embedding Fe-SMA strip for the NSM method.

2.3.3 Activation of Fe-SMA

To activate the Fe-SMA strip embedded in the RC beam, the RC beam was placed at the center of the reaction frame, and the cables of the electric power supply were connected in series to the copper clips. Figure 8a shows the process to activate the SME of the embedded Fe-SMA strip with an electric density of 10 A/mm−2. When heating the embedded Fe-SMA strip, a restrained longitudinal displacement of the embedded Fe-SMA strip by the rapid hardening cement mortar induced recovery stress, which was introduced into the RC beam as the prestressing force. The temperature generated by electrical resistance heating was measured by the insulating K-type thermocouples attached to the surface of the embedded Fe-SMA strip, and the temperature at the bottom surface of the RC beam was measured by employing an infrared thermometer (see Fig. 8b). During heating of the Fe-SMA strip, to assess upward displacements induced by the prestressing force, linear variable differential transformers (LVDTs) with a capacity of 50 mm were placed at the mid-span of the RC beams. Furthermore, strain values at the tension region corresponding to the upward displacement were measured with a strain gauge installed 30 mm away from the top mid-surface. The electrical resistance temperature was applied to 160 °C of the planned temperature and then stopped. The RC beam specimen was cured indoors until the upward displacement caused by the cambering effect was stable.

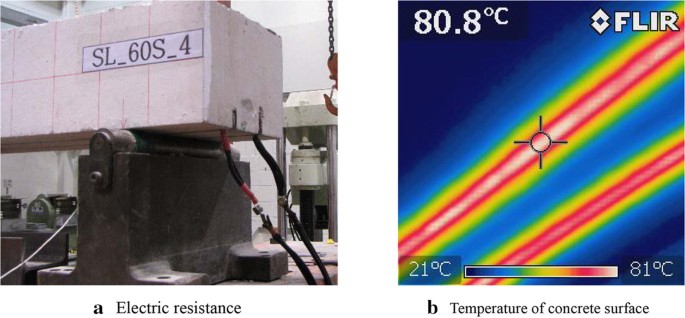

Fig. 8
Fig. 8

Activation of embedded Fe-SMA in a concrete beam.

2.4 Test Setup

The RC beam specimens were loaded with 2000 kN of an actuator capacity at a stroke speed of 3 mm/min, and were tested under a four-point loading system. The net length and the distance between two loading points were 2700 and 500 mm, respectively. Two LVDTs were placed on the lower surface of the specimen to measure the deflection at mid-span. To assess the strain values of the concrete and the tensile reinforcements, strain gauges were attached on them at the mid-span section. The measured data such as load, mid-deflection, and strains from the concrete and tensile reinforcements were recorded at a frequency of 1 s by a data logger. Figure 9 shows the overview of the test setup.

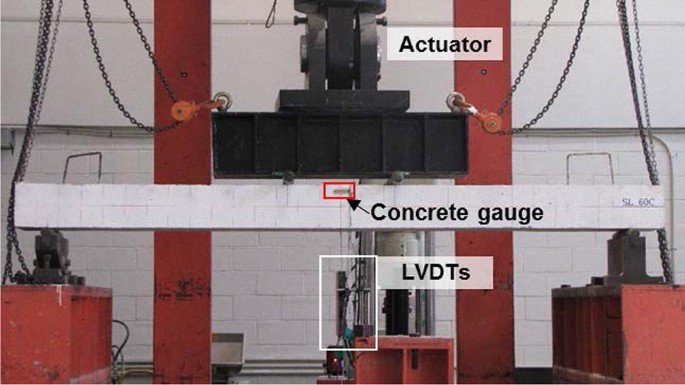

Fig. 9
Fig. 9

Test setup.

3 Result and Discussion

3.1 Cambering Effect by Prestressing Force

As aforementioned, electric resistance heating was used to activate the SME of the embedded Fe-SMA strip, which induces recovery stress under the restrained Fe-SMA strip by the cement mortar. The recovery stress referred to as the prestressing force can be introduced as compression into the bottom of the RC beam, which causes upward displacement (cambering effect). The electric resistance heating temperature and the corresponding vertical displacement diagrams across heating time are shown in Fig. 10 and Table 5. The embedded Fe-SMA strips in all the RC beams were equally heated to the target temperature of 160 °C with the electric density of 10 A/mm2. A different heating time was required (45, 75, and 122 s) depending on the Fe-SMA strip’s cross-sectional area (30, 60, and 90 mm2). After reaching the target temperature of 160 °C, the RC beam specimens strengthened, with the Fe-SMA strips cooled until the surface temperature of the embedded Fe-SMA strips reached ambient temperature to acquire sufficient prestressing force from the embedded Fe-SMA strip. The RC beams strengthened by the prestressed Fe-SMA NSM technique showed two different behaviors of deflection. At the beginning of heating the Fe-SMA strip, the downward displacements of SL-60S-2, SL-30S-4, SL-60S-4, and SL-90S-4 were 0.097, 0.114, 0.134, and 0.151 mm at the mid-span, respectively, due to the thermal expansion effect of the embedded Fe-SMA strips in the RC beams. The downward displacements were restored after the completely activated SME of the Fe-SMA strips, and then upward displacement occurred due to the cambering effect by the prestressing force for about 250 min. The final upward displacements of SL-60S-2, SL-30S-4, SL-60S-4, and SL-90S-4 were 0.205, 0.218, 0.443, and 0.625 mm, respectively.

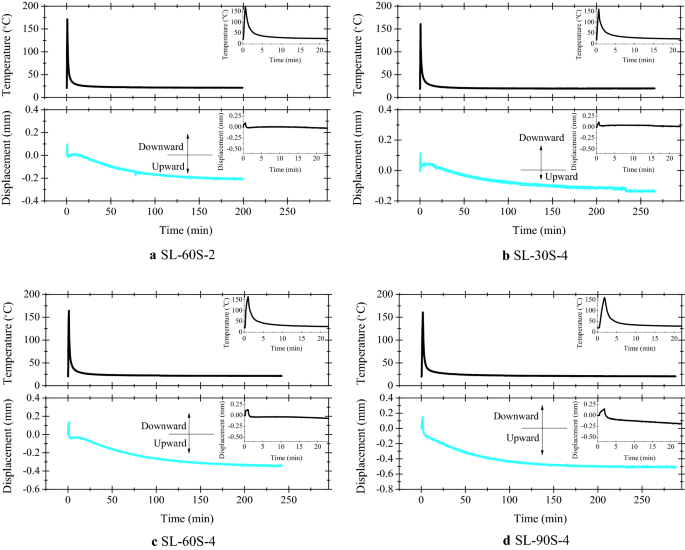

Fig. 10
Fig. 10

Activation temperature and displacement curves across time.

Table 5

Summary of displacement by activation.

Specimen

SL-60S-2

SL-30S-4

SL-60S-4

SL-90S-4

Downward (mm)

0.097

0.114

0.134

0.151

Upward (mm)

0.205

0.218

0.443

0.625

The strain value of the Fe-SMA strips using the strain gauge was not directly acquired because of the higher surface temperature of 160 °C and the high voltage passing through the Fe-SMA strip during the activation for the SME. Therefore, the prestressing strength was calculated with the upward displacement and flexural rigidity and modulus of elasticity of the RC beams. The equations for the prestressing strength are expressed in Eqs. (1)–(8) below. The bonding length with the rapid hardening cement mortar was taken into account in Eqs. (1)–(8). The effects of shrinkage, creep, and self-weight of the RC beam specimen for calculating the prestressing strength were ignored. As shown in Fig. 11, the embedded Fe-SMA strip at the bottom of the concrete beam causes the recovery stress due to the SME, which induces the compression force (prestressing force). This compressive force generates a constant negative moment along the bonding length of the Fe-SMA strip.
$$ \delta = \frac{{Ml_{0} \left( {l - l_{0} } \right)}}{4EI} + \frac{{Ml_{0}^{2} }}{8EI} $$
(1)
$$ M = 8EI\delta \frac{1}{{l_{0} \left( {l - l_{0} } \right) + l_{0}^{2} }} $$
(2)
$$ M = P_{recovery} e = A_{SMA} \sigma_{recovery} e $$
(3)
$$ \sigma_{{re\text{cov} ery}} = \frac{8EI\delta }{{A_{SMA} e\left[ {l_{0} \left( {l - l_{0} } \right) + l_{0}^{2} } \right]}} $$
(4)
where \( l_{0} \): length of embedded Fe-SMA strip with cement mortar (mm); \( l \): net span of reinforced beam (mm); \( M \): moment induced by prestressing force (kN m); \( \sigma_{recovery} \): Recovery stress induced by shape-memory effect of Fe-SMA (MPa); \( e \): eccentric distance (mm); \( P_{recovery} \): recovery force induced by prestressing force (kN); \( \delta \): deflection at mid-length of beam (mm); \( A_{SMA} \): nominal area of Fe-SMA (mm2); \( EI \): flexural rigidity of reinforced beam (kN m2).
$$ E_{c} = 8500\sqrt[3]{{f_{cu} }} $$
(5)
$$ n = \frac{{E_{s} }}{{E_{c} }} $$
(6)
$$ c = \frac{{0.5bh^{2} + \left( {n - 1} \right)A_{s} d}}{{bh + \left( {n - 1} \right)A_{s} }} $$
(7)
$$ e = d_{SMA} - c $$
(8)
where \( E_{c} \): modulus of elasticity of concrete (MPa); \( E_{s} \): modulus of elasticity of steel (MPa); \( n \): modulus of elasticity transformation coefficient for steel to concrete; \( c \): distance from the top to the neutral axis of a concrete beam (mm); \( d \): effective depth from the top of a reinforced concrete beam to the centroid of the tensile steel (mm); \( d_{SMA} \): effective depth from the top of a reinforced concrete beam to the centroid of the Fe-SMA strip (mm); \( \delta \): deflection at mid-length of beam (mm).
Fig. 11
Fig. 11

Schematic of camber deflection by prestressing force.

The ratio of the recovery stress of the exposed Fe-SMA strip, \( \varvec{\sigma}_{{\varvec{re},\varvec{ ex}}} \), to that of the embedded Fe-SMA strip, \( \varvec{\sigma}_{{\varvec{re},\varvec{em}}} \), is shown in Table 6. The ratio of the recovery stresses ranged from 0.992 to 1.191, which indicates that the recovery stress of the embedded Fe-SMA strip was effectively transferred to the RC beam as the prestressing force. Therefore, it is worth mentioning that the Fe-SMA strip activated with electric resistance heating can easily introduce prestressing force in the concrete member rather than the conventional mechanical prestressing technique which requires additional equipment such as a hydraulic jack and an end anchor. However, the increase of the number of Fe-SMA strips requires more heating time for the activation of the SME, resulting in the concrete member and Fe-SMA strip expansion. This phenomenon might reduce the recovery stress of the strengthened RC beam.
Table 6

Comparison of recovery stresses of Fe-SMA strips.

Specimen

\( \sigma_{re, ex} \) (MPa)

\( \sigma_{re,em} \) (MPa)

\( \sigma_{re, ex} /\sigma_{re,em} \)

SL-60S-2

347.5

354.93

0.98

SL-30S-4

401.5

366.82

1.09

SL-60S-4

401.5

372.71

1.08

SL-90S-4

401.5

348.44

1.17

3.2 Flexural Behavior of RC Beam

3.2.1 Failure Mode

Figure 12 shows the failure modes of the specimens after the tests. For the specimen strengthened by the CFRP strip, a slippage failure occurred before reaching yielding load. The reason for this is that the bonding strength at the interface between the CFRP strip and the cement mortar was not sufficient to endure the slippage. Except for the specimen strengthened with the CFRP strip, all other specimens failed by forming cracks at mid-span and the yielding of tensile steel rebar followed by the concrete crushing of the compression zone. Initial cracks were observed at the mid-span and developed toward the compression zone. With the increase of the quantity of the Fe-SMA strengthening materials, the number of developed cracks increased, and the averaged width of cracks decreased.
Fig. 12
Fig. 12

Flexural failures with crack patterns.

3.2.2 Responses of Load and Displacement

Table 7 and Fig. 13 show the responses of load and displacement at the mid-span of all specimens. Figure 13a is a comparison of the load–displacement responses depending on the type of reinforcement. RC beam specimens strengthened with no strengthening material (SL-CTRL), CFRP strip (SL-60C-0), and Fe-SMA strip (SL-60S-0), respectively. The pre-straining was not applied on these Fe-SMA strips. It was observed that the change of stiffness, after initial cracks, occurred in all specimens. For cracking loads, initial cracks of SL-CTRL were shown at 7.42 kN, whereas SL-60C-0 started to crack at approximately 10.03 kN, and SL-60S-0 showed initial cracking at 9.94 kN. The cracking loads of SL-60C-0 and SL-60S-0 increased by 35.17 and 33.96%, respectively, compared to that of SL-CTRL. This might be because the larger modulus of elasticity of strengthening can effectively control the crack developments. The yielding load of SL-60S-0 was increased by 34.89% compared to that of SL-CTRL. Unfortunately, for SL-60C-0, the premature slippage failure at 31.05 kN occurred before the tensile reinforcement yielded, and no significant increase of the load was shown thereafter. In contrast, the Fe-SMA strip with the sandblasted surface showed sufficient bonding strength to the cement mortar. The ultimate load of SL-60S-0 is approximately 52.98% higher than that of SL-CTRL.
Table 7

Summary of experimental test results.

Specimen

Pcrack (kN)

Pyield (kN)

Pultimate (kN)

SL-CTRL

7.42

23.79

29.56

SL-60C-0

10.03

31.05

34.73

SL-60S-0

9.94

32.09

45.22

SL-60S-2

11.52

33.12

44.23

SL-60S-4

13.46

34.02

46.64

SL-30S-4

9.42

28.48

36.78

SL-90S-4

14.04

41.42

55.41

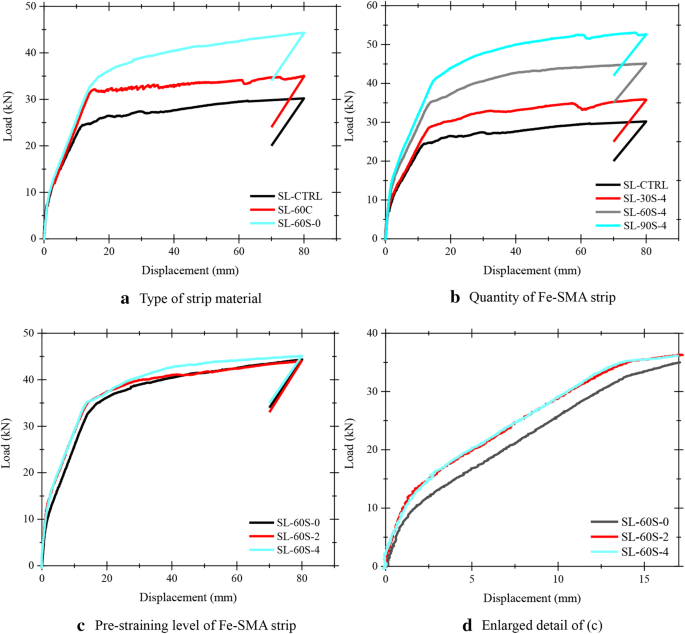

Fig. 13
Fig. 13

Comparison of load–displacement curves.

Figure 13b is a comparison of the load–displacement responses of SL-30S-4, SL-60S-4, and SL-90S-4, which are specimens with different cross-sectional areas of Fe-SMA strip: 30, 60, and 90 mm2. In Fig. 13b, SL-CTRL was plotted and compared with other specimens. The cracking loads of SL-30S-4, SL-60S-4, and SL-90S-4 increased by 26.95, 81.40, and 89.22%, respectively, compared to that of SL-CTRL. With such results, it can be concluded that the increase in quantity of the strengthening materials showed a positive crack control effect. The yielding loads of SL-30S-4, SL-60S-4, and SL-90S-4 increased by 19.71, 43.0, and 74.11%, respectively, compared to that of SL-CTRL. The reason for this is that the increased area of 30 mm2 increased the stiffness after initial cracking occurred. The ultimate loads showed a similar trend with the yielding loads. The ultimate loads of SL-30S-4, SL-60S-4, and SL-90S-4 increased by 24.42, 57.78, and 87.45%, respectively, compared to that of SL-CTRL. The ultimate load increased by an average of 30.0% by increase of the area of 30 mm2.

Figure 13c shows a comparison of the load–displacement curves of the specimens strengthened with different pre-straining levels on 60 mm2 area of the Fe-SMA strip. The Fe-SMA strips were pre-strained to 0.0, 2.0, and 4.0% of SL-60S-0, SL-60S-2, and SL-60S-4, respectively. The cracking loads of SL-60S-2 and SL-60S-4 increased by 15.89 and 35.41%, respectively, compared to that of SL-60S-0. This result might be because the introduced prestressing force to the tension region of the concrete increased the flexural rigidity and delayed initial crack development. However, the yielding loads of SL-60S-2 and SL-60S-4 increased slightly by 3.21 and 6.01% compared to the yielding load of SL-60S-0. However, it would be noted that similar to the characteristic of conventional prestressed RC beams with strengthening materials, the RC beam strengthened with the Fe-SMA NSM technique showed an insignificant increase of the ultimate loads with higher pre-straining levels of the Fe-SMA strips. Additionally, the RC beam strengthened with the Fe-SMA NSM technique did not show a reduction of ductility by introducing prestressing force to the concrete compared to the RC beam strengthened by the prestressed FRP NSM technique. Based on those results, it would seem that the prestressing technique using the recovery stress of the Fe-SMA strip can overcome the limitations of conventional strengthening techniques using prestressed FRP plates or steel strands such as difficult-to-apply pre-tension force, required equipment for anchoring, and reduced ductility of the strengthening material.

4 Conclusions

This paper investigated the flexural behavior of RC beams strengthened with the Fe-SMA NSM technique. The following conclusions are drawn from the results.
  1. 1.

    RC beams strengthened with Fe-SMA strips were deflected downward by thermal expansion of the heated Fe-SMA strip. However, after heating to the target temperature of 160 °C, the strengthened RC beam was cooled down to ambient temperature, resulting in the recovery stress—namely prestressing force. The prestressing force acted as compression to the tension region of the concrete, which generated the cambering effect. The ultimate upward displacements at mid-span of the strengthened RC beams by the cambering effect were 0.205, 0.218, 0.443, and 0.625 mm, respectively, for SL-60S-2, SL-30S-4, SL-60S-4, and SL-90S-4.


  2. 2.

    The ratios of the recovery stress of the exposed Fe-SMA strip to that of the embedded Fe-SMA strip were 0.979–1.169, which indicates that the recovery stress of the embedded Fe-SMA strip was effectively transferred to the concrete beam as prestressing force. Therefore, it is worth mentioning that the activated Fe-SMA strip by electric resistance heating can easily introduce the prestressing force in the concrete member rather than the conventional mechanical prestressing technique which requires additional equipment such as a hydraulic jack and an end anchor.


  3. 3.

    Cracking loads of the RC beams strengthened with 2.0 and 4.0% pre-strained Fe-SMA strips, SL-60S-2 and SL-60S-4, increased by 15.89 and 35.41% compared to that of the specimen with non-activated Fe-SMA, SL-60S-0. Additionally, the flexural rigidity of SL-60S-2 and SL-60S-4 significantly increased compared to that of SL-60S-0.


  4. 4.

    Similar to the general characteristic of the RC beam strengthened with steel strands, the RC beam strengthened by the prestressed Fe-SMA NSM technique showed insignificant increase of ultimate loads. Furthermore, the prestressed Fe-SMA NSM technique did not reduce the ductility of the strengthened RC beams by introducing the prestressing force to the concrete compared to the RC beam strengthened by the prestressed FRP NSM technique.


  5. 5.

    Finally, the strengthening technique using the recovery stress of the Fe-SMA strip as the prestressing force solves various problems with existing prestressing strengthening systems, meaning that Fe-SMA can be used as a substitute for conventional prestressing strengthening systems.
