Time-Dependent Deformations of Eccentrically Loaded Reinforced Concrete Columns

Abstract

If reinforced concrete columns and walls in high-rise buildings are subjected to axial load for a sustained duration, long-term lateral deformation (or curvature) as well as axial shortening increase over time due to the creep and shrinkage of concrete. In the present study, sustained load tests were performed to evaluate the time-dependent axial shortening and lateral displacement occurring in eccentrically loaded columns. A test set-up using post-tensioning steel rods was introduced for the sustained loading with or without eccentricity. The test results showed that the lateral displacement as well as the axial shortening increased over the sustained duration but the increasing rate of the long-term deformations rapidly decreased with increasing time. The time-dependent axial shortening and lateral displacement increasing with time were predicted by using the age-adjusted effective modulus method based on the creep and shrinkage models of ACI 209. The predictions agreed well with the test results.

1 Introduction

When reinforced concrete (RC) compression members in high-rise buildings are subjected to sustained loads, the creep and shrinkage of concrete increasing with time affect the structural behavior of the members and structures by redistributing stresses between concrete and longitudinal reinforcement. Therefore, current design codes such as ACI 318-14 (ACI Committee 318 2014), KCI (2012), and Eurocode 2 (European Committee for Standardization 2004) recommend that such concrete creep and shrinkage deformations be addressed in the analysis and design of the members and structures particularly in concrete high-rise buildings. As shown in Fig. 1, the columns and walls in irregular high-rise buildings are frequently subjected to bending moment as well as axial load. In such eccentrically loaded columns and walls, lateral displacement (or curvature) as well as axial shortening increase with time due to the creep and shrinkage of concrete. Such long-term lateral displacement can shortly influence differential shortening in buildings under construction and ultimately increase the second-order effects of columns and deflections in beams and slabs. For instance, the differential shortening occurring in compression members such as columns and walls may change initial positions of the beams, slabs, columns, walls, etc. under construction and consequently partitions, architectural finishes, and load transfer between adjacent structural elements are affected (Fintel et al. 1987; Kim and Abdelrazaq 2009; Maru et al. 2003). The moment demand on the columns and walls may be amplified further due to the second-order effects increased by the long-term curvature.

Fig. 1

Columns subjected to bending moment as well as axial compression.

For eccentrically loaded concrete columns, stress redistribution between concrete and reinforcement occurring over time due to sustained loading is more complicated than that in pure compression members. Previous studies were carried out to investigate the time-dependent behavior of such eccentrically loaded columns (Viest et al. 1955; Green and Breen 1969; Balaguru and Nawy 1982; Tatsa 1989; Mickleborough and Gilbert 1991; Bradford 1997). Viest et al. (1955) investigated the sustained load-carrying capacity of eccentrically loaded short columns under very high axial compressive load. From the sustained load tests of pin-ended columns without restraints, Green and Breen (1969) reported that the bending moments and curvatures increased with time. Balaguru and Nawy (1982) proposed an analysis method for eccentrically loaded columns based on the creep model of plain concrete. Tatsa (1989) proposed a numerical method for time-dependent analysis, based on the sustained tests on eccentrically loaded panels. Mickleborough and Gilbert (1991) investigated the creep instability of eccentrically loaded slender columns. Bradford (1997) theoretically investigated the flexural rigidity of eccentrically loaded columns under sustained loading.

In the present study, sustained load tests of eccentrically loaded reinforced concrete columns were performed to investigate deformations due to sustained eccentric moment. The test parameters were the magnitude of sustained loads and the presence of eccentricity. The lateral displacement (curvature) and axial shortening due to the sustained eccentric moment were measured through the tests, and the results were compared with the predictions. In addition, simplified methods for estimating the time-dependent deformations of eccentrically loaded columns were proposed, based on the creep and shrinkage models of ACI 209R-92 and the age-adjusted effective modulus method.

2 Test Program

Figure 2a, b show the configurations and reinforcement details of the column specimens. The column specimens were the cantilever with a height of 1460 mm including the pedestal: the heights of the column and pedestal were 1010 mm and 450 mm, respectively. Dimensions of the column and pedestal were 200 mm × 300 mm and 900 mm × 900 mm, respectively. As shown in Fig. 2b, six D16 bars were used as longitudinal reinforcement in the column. All longitudinal reinforcing bars were weld-connected to a 60 mm-thick bearing end plate at the top and were anchored in the pedestal with 90 degree anchorage hook. Tie hoops of D10 bars were placed with a spacing of 100 mm. The first tie hoop was placed at a height of 50 mm from the column base.

Fig. 2

Configurations and reinforcement details of column specimens.

Table 1 shows the test parameters. The magnitude of sustained load (P_sus) and the presence of eccentricity (e) were considered as the test parameters. Concentrically and eccentrically loaded column specimens were named as C-xx and E-xx-y, respectively. xx (= 15 and 30) denotes the magnitude of sustained load, P_sus, applied to each specimen and y (= 1, 2, and 3) denotes the sequential number used for the eccentrically loaded column specimens. C-15 and E-15 were subjected to P_sus = 421 kN (= 0.15 $A_{g} f^{\prime}_{c}$) and C-30, E-30-1, E-30-2, and E-30-3 were subjected to P_sus = 842 kN (= 0.30 $A_{g} f^{\prime}_{c}$). A_g= cross section area of column (= 60,000 mm²), and $f^{\prime}_{c}$= concrete strength at 28 days (= 47.3 MPa). For the eccentrically loaded column specimens E-15, E-30-1, E-30-2, and E-30-3, the sustained loads P_sus were applied with an eccentricity of e = 50 mm from the geometrical center of the cross section. Therefore, in addition to P_sus, E-15, E-30-1, E-30-2, and E-30-3 were subjected to the sustained bending moment M_sus = P_sus e. As shown in Fig. 2b, the sustained moment M_sus was uniform along the column height. The magnitude of the eccentricity was carefully taken as e = 50 mm from a section analysis for short-term loading of P_sus and M_sus so that the neutral axis lies at the edge of the cross-section (i.e., no tensile stress and no cracking). Note that E-30-1, E-30-2, and E-30-3 were tested under the same sustained load condition in order to improve the reliability of long-term measurement.

Table 1 Test parameters of column specimens.

Figure 2a shows the test set-up for sustained loading. The compression load P_sus was applied by using two external post-tensioning high-strength steel rods (diameter = 38 mm) and a steel block placed on top of the column. At the bottom, the post-tensioning steel rods were pin-jointed to the steel blocks embedded in the concrete pedestal. Twelve shear studs (diameter = 19 mm and extension = 125 mm) were used in each embedded steel block to transfer the post-tensioning loads of the steel rods to the concrete of the pedestal (see Fig. 2a). In order to exclude the contribution of the steel rods to the lateral stiffness of the column, the steel rods were pin-jointed at a height of 90 mm from the column base.

To prevent concrete spalling due to high compressive stress, a steel cap consisting of 60 mm-thick bearing plate and 10 mm-thick side plates was used at the top of the column specimens. (see Fig. 2). In order to let shrinkage deformation of the concrete occur without restraint during curing, the steel cap was not installed for 2 days before the sustained loading. After the steel cap was placed, the gap between the steel cap and the concrete surface of the columns was filled with high-strength epoxy mortar (see Fig. 2). The epoxy mortar was hardened for 2 days.

Figure 3 shows the strain gages used to measure the long-term strains of the concrete and reinforcing bars during the sustained load tests. The strain gages were placed at three heights, i.e. 100, 400, and 700 mm high from the column base. At each height, four steel and four concrete uniaxial strain gages were used (refer to the section view of Fig. 3). The steel strain gages attached to the reinforcing bars inside concrete while the concrete strain gages were attached to the concrete surface. For eccentrically loaded column specimens, lateral displacement would occur at the top of the columns due to the eccentric moment M_sus and continuously increase with time due to the creep and shrinkage of concrete. Therefore, LVDTs were placed at the height of 900 mm from the column base to measure the long-term lateral displacement (see Fig. 3).

Fig. 3

Measurement of long-term deformations during sustained load tests.

3 Sustained Load Test

3.1 Testing Method

The sustained load tests had been performed for 64 days after the initial loading. During the tests, the time-dependent increase in the axial shortening and lateral displacement of the eccentrically loaded columns due to the creep and shrinkage of concrete were measured. Figure 4 shows a photograph of the column specimens placed in the basement laboratory. The sustained loads were applied at the age of 37 days after concrete placement (i.e. t₀ = 37 days). The tests were carried out during winter season in Korea. As shown in Fig. 4, the column specimens were placed in the basement laboratory where the variation of temperature and relative humidity between day and night was relatively insignificant. The average temperature and relative humidity of the basement laboratory during the sustained load tests were approximately 8 degrees Celsius and 40%, respectively.

Fig. 4

Sustained load tests.

As shown in Fig. 2a, the sustained axial loads were applied by using external post-tensioning high-strength steel rods. The post-tensioning steel rods were stressed by using the oil jacks at the top. Once the target posttensioning force (= 0.5P_sus) was attained by the oil jacks, the steel nuts were tightened in order for the post-tensioning steel rods to be in place by without loss of the posttensioning force. For precise post-tensioning, the post-tensioning force acting on the steel rods was measured with the load cells. The loss of the post-tensioning force of the steel rods during the sustained load tests were monitored using the strain gages attached to the steel rods.

3.2 Results of Sustained Load Tests

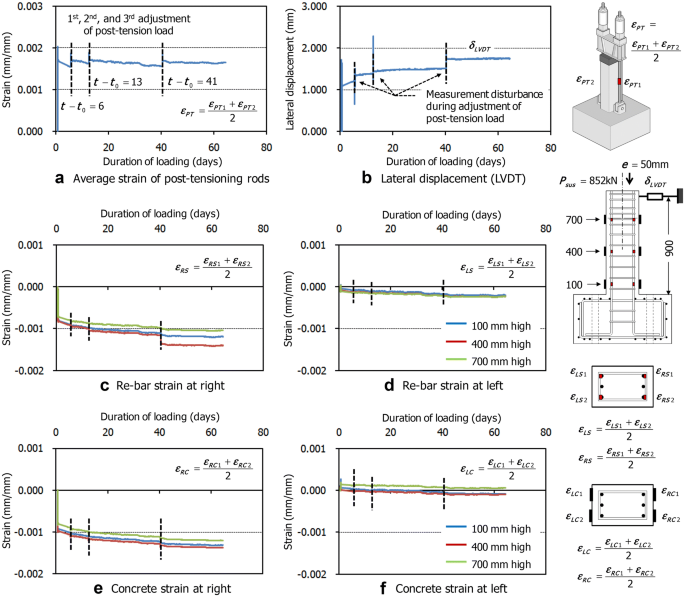

Figures 5 and 6 show the time-dependent deformations of the concentrically and eccentrically loaded column specimens C-30 and E-30-1, respectively. The deformations were measured for the sustained duration of 64 days. In each figure, (a) is the strains of the post-tensioning steel rods, ɛ_PT; (b) is the lateral displacements measured at the top of the column specimens by LVDTs, δ_LVDT; (c) and (d) are the compressive strains of the right and left reinforcing steel bars, ɛ_RS and ɛ_LS, respectively; and (e) and (f) are the compressive strains at the right and left concrete faces, ɛ_RC and ɛ_LC, respectively. The measured strains of the post-tensioning steel rods, reinforcing steel bars, and concrete surface, ɛ_PT, ɛ_RS, ɛ_LS, ɛ_RC, and ɛ_LC, are the mean of two measured strains. In Figs. 5c–f and 6c–f, the blue, red, and green lines indicate the strains of the reinforcing bars and concrete at 100, 400, and 700 mm heights from the column base, respectively. As shown in Figs. 5a and 6a, the strains of the posttensioning steel rods decreased over time due to loss of the post-tensioning force. Therefore, when 6, 13, and 41 days passed after the initial posttensioning (i.e. t − t₀ = 6, 13, and 41 days), the posttensioning force of the steel rods were restored to the target force by re-tightening the steel nut using a hand wrench. During the re-tightening process, the measurements of the LVDTs at the top of the columns were disturbed due to the impact of the wrench (see Figs. 5b and 6b). The measurements of the strain gages attached to reinforcing bars and concrete surface were also disturbed during the re-tightening process of the post-tensioning loads (see Figs. 5c–f and 6c–f).

Fig. 5

Long-term measurements of concentrically loaded column specimen C-30.

Fig. 6

Long-term measurements of eccentrically loaded column specimen E-30-1.

Figures 5 and 6 clearly show the difference in the time-dependent deformations between the concentrically and eccentrically loaded column specimens. As shown in Figs. 5c–f, for concentrically loaded column specimen C-30, the compressive strains of the reinforcing bars and concrete measured at the left and right ends of the cross section were almost identical. Furthermore, the compressive strains increased with time due to creep and shrinkage of the concrete. However, as shown in Fig. 5b, the lateral displacement measured by the LVDT at the top did not increase during the sustained duration. Although sudden changes in the lateral displacement were detected by the LVDT during the re-tightening process, substantial increase in the lateral displacement with time was not observed.

For eccentrically loaded column specimen E-30-1, however, the lateral displacement occurred on applying the axial load (see Fig. 6b). Furthermore, as shown in Fig. 6c–f, the strains of concrete and reinforcing bars were different at the right and left ends of the cross section. The compressive strains of concrete and reinforcing bars continuously increased with time, but the increasing rates differed. The compressive strains of concrete and reinforcing bars measured at three different heights were nearly identical, which indicates that E-30-1 with an aspect ratio 3.0 (i.e. the ratio of the shear span-to-overall section depth) was subjected to uniform bending moment M_sus over the height (compare blue, red, and green lines in Fig. 6c–f).

3.3 Creep and Shrinkage of Concrete Cylinders

Figure 7 shows the developments of creep and shrinkage in the concrete ($f^{\prime}_{c}$ = 47.3 MPa) with time. For the creep and shrinkage tests, six concrete cylinders with a diameter 150 mm and a height 300 mm were cured inside a water tank for 28 days, and then mounted on the test devices for 90 days. Three concrete cylinders were subjected to compressive stress 14.2 MPa (= 0.3 $f^{\prime}_{c}$) for 90 days but the other three were free from compressive stress. The former three concrete cylinders experienced both creep and shrinkage deformations over time while the latter three concrete cylinders were subjected only to shrinkage. By comparing the time-dependent strains measured from the two groups of concrete cylinders, the creep and shrinkage characteristics of the concrete were evaluated. The room temperature and relative humidity were kept constant with 22.5 °C and 45.3%, respectively.

Fig. 7

Creep and shrinkage tests of concrete.

Figure 7a, b show the creep and shrinkage strains measured for 90 days. The creep and shrinkage strains of one concrete cylinder were significantly deviated from those of the other two concrete cylinders. Therefore, only the results measured from the latter two cylinders were used for the investigation. From a regression analysis, the ultimate creep coefficient and ultimate shrinkage strain of the plain concrete corresponding to the standard conditions of ACI 209R-92 (ACI Committee 209 1992) were determined as $\phi^{\prime}_{u}$ = 2.25 and $\varepsilon^{\prime}_{shu}$ = 0.000672, respectively. Note that $\phi^{\prime}_{u}$ and $\varepsilon^{\prime}_{shu}$ are the modified values corresponding to the loading age of 7 days and the relative humidity of 40%, though the actual loading age and relative humidity during the tests were 28 days and 45.3%, respectively.

4 Evaluation of Time-Dependent Deformations

Long-term deformations occurring in eccentrically loaded reinforced concrete columns can be evaluated in terms of the axial shortening due to sustained axial compression P_sus and the lateral displacement (or curvature) due to sustained eccentric moment M_sus. The eccentrically loaded column specimens of the present study were subjected to compressive stress and strain over the entire cross section without significantly tensile cracking (refer to Fig. 6c–f). Therefore, the long-term axial shortening and curvature were evaluated based on an un-cracked section analysis.

4.1 Axial Shortening

Figure 8a shows the strain distribution at the column section caused by combined axial compression P_sus and eccentric moment M_sus. The strain distributions due to the immediate loading (i.e. t = t₀) and long-term loading are presented as the dotted and thick solid lines, respectively. If the immediate and long-term strain distributions are assumed as linear over the section, the axial shortening strain of eccentrically loaded column can be represented as the strain at the geometrical center of the section (i.e. ɛ_a and ɛ_a0 of Fig. 8a). Furthermore, since the compressive stress–strain relationship of concrete can be approximated as a linear elastic behavior if the compressive stress is not greater than 0.4 $f^{\prime}_{c}$ (European Committee for Standardization 2004), the axial shortening of eccentrically loaded column is the same as that of concentrically loaded column (see Fig. 8b).

Fig. 8

Evaluation of axial shortening of eccentrically loaded columns.

When reinforced concrete columns are subjected to an axial compression load for a period of time, additional compressive stress and strain develop in the longitudinal reinforcement due to creep while the stress of concrete decreases. According to McGregor (1997), such redistribution of compressive loads between the concrete and reinforcement can be modeled using an age-adjusted effective modulus E_caa (t, t₀) and an age-adjusted transformed area A_traa as follows.

$$\varepsilon_{cr} (t,t_{0} ) = \left( {\frac{{P_{sus} }}{{A_{traa} }}} \right)\frac{1}{{E_{caa} (t,t_{0} )}}$$

(1)

$$E_{caa} (t,t_{0} ) = \frac{{E_{ct} (t_{0} )}}{{1 + \chi (t_{0} )[E_{ct} (t_{0} )/E_{ct} (28)]\phi (t,t_{0} )}}$$

(2)

$$A_{traa} = A_{c} + n_{aa} A_{s}$$

(3)

where ɛ_cr (t, t₀) = creep shortening of reinforced concrete at time t; t₀ = time at loading from concrete placing; E_ct (28) = elastic modulus of the concrete at the age of 28 days; χ(t₀) = aging coefficient addressing the reduction of compression load in the concrete due to creep; ϕ(t, t₀) = creep coefficient at time t; A_c and A_s= areas of the concrete and longitudinal reinforcement, respectively; n_aa= age-adjusted modular ratio between the reinforcement and concrete (= E_s/E_caa (t, t₀)); and E_s= elastic modulus of the reinforcement (= 200 GPa). The aging coefficient χ(t₀) and creep coefficient ϕ(t, t₀) of concrete are defined as follows [McGregor (McGregor 1997) and ACI 209R-92 (ACI Committee 209 1992)].

$$\chi (t_{0} ) = \frac{{t_{0}^{0.5} }}{{1 + t_{0}^{0.5} }}$$

(4)

$$\phi (t,t_{0} ) = \frac{{(t - t_{0} )^{0.6} }}{{10 + (t - t_{0} )^{0.6} }}$$

(5)

The creep shortening of Eq. (1) can be rewritten as the function of the elastic shortening ɛ_a0 at loading age t₀ as follows.

$$\begin{aligned} \varepsilon_{cr} (t,t_{0} ) &= \left( {\frac{{P_{sus} }}{{E_{ct} (t_{0} )A_{tr} }}} \right)\left( {\frac{{A_{tr} }}{{A_{traa} }}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \hfill \\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, &= \varepsilon_{a0} \left( {\frac{{1 + n\bar{\rho }}}{{1 + n_{aa} \bar{\rho }}}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \hfill \\ \end{aligned}$$

(6)

where ɛ_a0 = elastic shortening of reinforced concrete at time t₀; A_tr = transformed area of the column section at time t₀ (= A_c + [E_s/E_ct (t₀)]A_s); n = modular ratio between the reinforcement and concrete (= E_s/E_ct (t₀)); and $\bar{\rho }$ = reinforcement-to-concrete area ratio (= A_s/A_c). According to ACI 209R-92 (ACI Committee 209 1992) and Fintel et al. (1987), the elastic modulus E_ct (t₀) at time t₀ of normal-weight concrete can be defined as follows.

$$E_{ct} (t_{0} ) = 5000\sqrt {f^{\prime}_{ct} (t_{0} )}$$

(7)

$$f^{\prime}_{ct} (t_{0} ) = \left( {\frac{{t_{0} }}{{4.0 + 0.85t_{0} }}} \right)f^{\prime}_{ct} (28)$$

(8)

where $E_{ct} (t_{0} )$ and $f^{\prime}_{ct} (t_{0} )$ = time-dependent elastic modulus and compressive strength of concrete, respectively, and $f^{\prime}_{ct} (28)$ = compressive strength of concrete at the age of 28 days (= $f^{\prime}_{c}$).

Since the age-adjusted effective modulus E_caa (t, t₀) of Eq. (1) accounts only for the creep effects, the shrinkage shortening needs to be additionally addressed. As shown in Fig. 8b, the shrinkage shortening ɛ_sh (t, t₀) of reinforced concrete column at time t is smaller than the shrinkage shortening ɛ_cs (t, t₀) of plain concrete column, because the longitudinal reinforcement restrains shrinkage in concrete. From the force equilibrium, the increase in the compression force of the longitudinal reinforcement due to the shrinkage shortening, ɛ_sh (t, t₀) E_sA_s, should be equal to the decrease in the compression force of the concrete, [ɛ_cs (t, t₀) − ɛ_sh (t, t₀)] E_caa (t, t₀) A_c (refer to Fig. 8b). Therefore, ɛ_sh (t, t₀) can be calculated as follows.

$$\varepsilon_{sh} (t,t_{0} ) = \varepsilon_{cs} (t,t_{0} )\left( {\frac{1}{{1 + n_{aa} \bar{\rho }}}} \right)$$

(9)

In Eq. (9), the shrinkage shortening ɛ_cs (t, t₀) of the plain concrete at time t from loading age t₀ can be determined as follows [ACI 209R-92 (ACI Committee 209 1992)].

$$\varepsilon_{cs} (t,t_{0} ) = \varepsilon_{shu} \left[ {\frac{{\left( {t - t_{s} } \right)}}{{35 + \left( {t - t_{s} } \right)}} - \frac{{\left( {t_{0} - t_{s} } \right)}}{{35 + \left( {t_{0} - t_{s} } \right)}}} \right]$$

(10)

where t_s = age of the concrete in days when shrinkage begins. t_s, which is earlier than t₀, can be taken as the age of the end of moisture curing.

The total axial shortening ɛ_a (t, t₀) of concentrically and eccentrically loaded column is then calculated by adding the creep and shrinkage shortenings in Eqs. (6) and (9).

$$\begin{aligned} \varepsilon_{a} (t,t_{0} ) = & \, \varepsilon_{cr} (t,t_{0} ) + \varepsilon_{sh} (t,t_{0} ) \hfill \\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, =& \, \varepsilon_{a0} \left( {\frac{{1 + n\bar{\rho }}}{{1 + n_{aa} \bar{\rho }}}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \\ & + \varepsilon_{cs} (t,t_{0} )\left( {\frac{1}{{1 + n_{aa} \bar{\rho }}}} \right) \hfill \\ \end{aligned}$$

(11)

Figure 9 compares the axial shortenings of the column specimens predicted by Eq. (11) with the test results. The predictions and test results are presented as the circles and solid lines, respectively. The solid lines are the mean of ɛ_RC and ɛ_LC measured at the three heights, 100, 400, and 700 mm (see Figs. 5 and 6). For the predictions, P_sus = 421 and 842 kN, A_c = 58,800 mm², A_s = 1200 mm², and $\bar{\rho }$ = 0.0204 (see Fig. 2b) were applied. For the creep and shrinkage of the concrete increasing with time, t₀ = 37 days, t_s= 7 days, χ(t₀) = 0.859, $f^{\prime}_{c}$ = 47.3 MPa, and n = 5.69 were used. The ultimate creep coefficient ϕ_u and shrinkage strain ɛ_shu of concrete in the column specimens were modified considering the actual loading age and member size as follows. According to ACI 209R-92 (ACI Committee 209 1992), the creep correlation factor for loading age t_LA was taken as γ_LA = 1.25(t_LA)^−0.118 = 0.816 by using t_LA= t₀ = 37 days. The creep and shrinkage correlation factors for member size (i.e. the volume-to-surface ratio VS = 60 mm) were taken as $\gamma_{VS} = {\raise0.5ex\hbox{$\scriptstyle 2$} \kern-0.1em/\kern-0.15em \lower0.25ex\hbox{$\scriptstyle 3$}}[1 + 1.13\exp ( - 0.0213\,VS)]$ = 0.877 and 1.2 exp (− 0.00472VS)] = 0.904, respectively. Therefore, the ultimate creep coefficient and shrinkage strain for the column specimens were determined as $\phi_{u}$ = $\gamma_{LA} \gamma_{VS} \phi^{\prime}_{u}$ = 0.816·0.877·2.25 = 1.61 and $\varepsilon_{shu}$ = $\gamma_{VS} \varepsilon^{\prime}_{shu}$ = 0.904·0.000672 = 0.000607. Since the sustained load tests of the column specimens were started at time t₀ = 37 days, the effects of the creep and shrinkage of concrete on the axial shortenings of the column specimens were predicted between t = 37 days and 101 days (duration = 64 days). The time-dependent creep coefficient ϕ(t, t₀) and shrinkage strain ɛ_cs (t, t₀) increasing with time were calculated by Eqs. (5) and (10), respectively. Note that the elastic shortening ɛ_a0 of each column specimen was used as the values measured by the strain gages so that uncertainty in the prediction of elastic shortening could not influence the prediction of long-term axial shortening. The elastic shortenings ɛ_a0 of the column specimens are presented in Fig. 9.

Fig. 9

Comparisons of predicted and measured axial shortenings of concentrically and eccentrically loaded column specimens.

As shown in Fig. 9a, the predicted axial shortenings of concentrically loaded column specimens C-15 and C-30 were greater that the measured shortenings. The low temperature of laboratory might affect discrepancies between the measured and predicted results. If the unexpected increase in the measured axial shortenings that occurred during the re-tightening process of posttensioning rods were taken into account (particularly at t − t₀ = 43 days), the correlations between the predictions and measurements were reasonable. Figure 9(b) compares the predicted and measured axial shortenings of eccentrically loaded column specimens E-15, E-30-1, E-30-2, and E-30-3. Despite non-uniform strain distributions, Eq. (11) based on the hypothesis of uniform strain distribution over the section predicted well the axial shortenings increasing with time.

4.2 Curvature (or Lateral Displacement)

For eccentrically loaded columns, the time-dependent creep curvature κ_cr(t, t₀) of the uncracked section can be defined based on the age-adjusted effective modulus E_caa (t, t₀) and an age-adjusted transformed moment of inertia I_traa as follows (see Fig. 10a).

$$\kappa_{cr} (t,t_{0} ) = \left( {\frac{{M_{sus} }}{{I_{traa} }}} \right)\frac{1}{{E_{caa} (t,t_{0} )}} = \left( {\frac{{M_{sus} }}{{E_{ct} (t_{0} )I_{traa} }}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right]$$

(12)

$$I_{traa} = I_{c} + n_{aa} I_{s}$$

(13)

where M_sus = sustained bending moment and I_c and I_s = moments of inertia of the concrete and reinforcement calculated about the geometrical center of the section. Figure 10 illustrates I_c and I_s of a rectangular section with asymmetric reinforcement arrangement. The creep curvature κ_cr (t, t₀) in Eqs. (12) and (13) are formulated similar to the creep shortening ɛ_cr (t, t₀) in Eqs. (1) to (3), based on the linear elastic behavior and reduced elastic modulus E_caa (t, t₀) of the concrete. By replacing ɛ_cr (t, t₀) and ɛ_c0 in Eq. (6) with κ_cr (t, t₀) and κ₀, respectively, the creep curvature κ_cr (t, t₀) can be defined as the function of the elastic curvature κ₀ at time t₀.

$$\begin{aligned} \kappa_{cr} (t,t_{0} ) =& \, \left( {\frac{{M_{sus} }}{{E_{ct} (t_{0} )I_{tr} }}} \right)\left( {\frac{{I_{tr} }}{{I_{traa} }}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \hfill \\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, =& \, \kappa_{0} \left( {\frac{{1 + n\bar{\eta }}}{{1 + n_{aa} \bar{\eta }}}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \hfill \\ \end{aligned}$$

(14)

where I_tr = transformed moment of inertia (= I_c + [E_s / E_ct (t₀)] I_s) and $\bar{\eta }$ = ratio between moments of inertia of reinforcing steel bars and concrete (= I_s/I_c). Equation (14) represents the curvature increasing with time by the creep of concrete.According to Park and Paulay (1975), shrinkage can also cause a long-term curvature increasing over time particularly in unsymmetrically reinforced columns. Figure 10b illustrates the long-term curvature κ_sh (t, t₀) caused by the shrinkage of concrete. For formulation, it is assumed that the column has different reinforcement areas A_st and A_sb at both ends and A_st is greater than A_sb (see Fig. 10a). Due to the unequal restraints of A_st and A_sb against the shrinkage of concrete, a shrinkage curvature κ_sh (t, t₀) as well as the shrinkage shortening ɛ_sh (t, t₀) increasing with time occur (see Fig. 10b). Since there is no gain or loss of moment at the section after the concrete shrinkage, the moment created by the concrete should be cancelled out that by the unequal reinforcements A_st and A_sb. Thus,

$$E_{caa} I_{c} \kappa_{sh} (t,t_{0} ) = E_{s} \left[ {\varepsilon_{sh} (t,t_{0} ) - \kappa_{sh} (t,t_{0} ) \cdot y_{t} } \right]A_{st} y_{t} - E_{s} \left[ {\varepsilon_{sh} (t,t_{0} ) + \kappa_{sh} (t,t_{0} ) \cdot y_{b} } \right]A_{sb} y_{b}$$

(15)

where y_b and y_t = distances of the reinforcements A_sb and A_st from the geometrical center of the section. In Eq. (15), the shrinkage shortening ɛ_sh (t, t₀) is calculated from Eq. (9). By using I_s ≈ A_sty ² _t  + A_sby ² _b , n_aa = E_s/E_caa, and $\bar{\eta } = I_{s} /I_{c}$, Eq. (15) can be rewritten as follows.

$$\kappa_{sh} (t,t_{0} ) = \varepsilon_{sh} (t,t_{0} )\left( {\frac{{A_{st} y_{t} - A_{sb} y_{b} }}{{I_{c} }}} \right)\left( {\frac{{n_{aa} }}{{1 + n_{aa} \bar{\eta }}}} \right)$$

(16)

The total time-dependent curvature κ (t, t₀) of eccentrically loaded column can be calculated by adding or subtracting the shrinkage curvature ɛ_sh (t, t₀) to the creep curvature ɛ_cr (t, t₀).

$$\begin{aligned} \kappa (t,t_{0} ) = \kappa_{cr} (t,t_{0} ) \pm \kappa_{sh} (t,t_{0} ) \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, \hfill \\ \,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\,\, = \kappa_{0} \left( {\frac{{1 + n\bar{\eta }}}{{1 + n_{aa} \bar{\eta }}}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right] \pm \varepsilon_{sh} (t,t_{0} )\left( {\frac{{A_{st} y_{t} - A_{sb} y_{b} }}{{I_{c} }}} \right)\left( {\frac{{n_{aa} }}{{1 + n_{aa} \bar{\eta }}}} \right) \hfill \\ \end{aligned}$$

(17)

In Eq. (17), the minus sign is used when the areas of the reinforcements are reversed (i.e. A_sb > A_st). Note that the shrinkage curvature κ_sh (t, t₀) of Eq. (17) is vanished in symmetrically reinforced sections because A_sb= A_st and y_b= y_t.The long-term curvatures of eccentrically loaded column specimens E-15, E-30-1, E-30-2, and E-30-3 were evaluated using Eq. (17). Since the column specimens were symmetrically reinforced, the effect of the shrinkage on the curvature was ignored: κ_sh (t, t₀) = 0. Furthermore, since the column specimens were subjected to uniform moment M_sus, the immediate curvature κ₀ and long-term curvature κ(t, t₀) of Eq. (17) can be replaced with the lateral displacements δ₀ and δ(t, t₀) at the top, respectively.

$$\delta (t,t_{0} ) = \delta_{0} \left( {\frac{{1 + n\bar{\eta }}}{{1 + n_{aa} \bar{\eta }}}} \right)\left[ {1 + \chi (t_{0} )\left[ {\frac{{E_{ct} (t_{0} )}}{{E_{ct} (28)}}} \right]\phi (t,t_{0} )} \right]$$

(18)

where δ₀ = elastic lateral displacement at time t₀ and δ(t, t₀) = long-term lateral displacement at time t.

Fig. 10

Time-dependent curvature of eccentrically loaded column specimens.

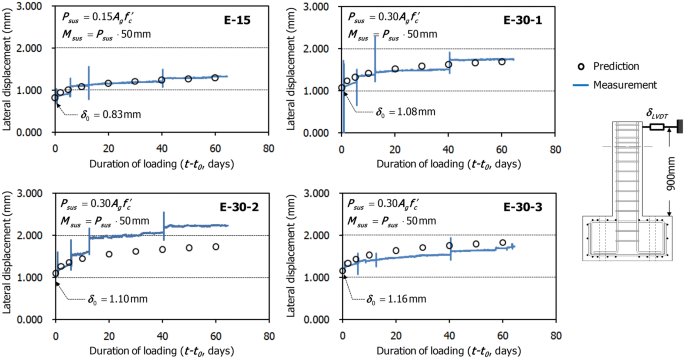

Figure 11 compares the predicted and measured lateral displacements δ (t, t₀) increasing with time. The predicted and measured are presented with the circles and solid lines, respectively. For the prediction of δ(t, t₀), ϕ_u= 1.61, ɛ_shu = 0.000607, t₀ = 37 days, t  = 37–101 days, χ(t₀) = 0.859, n  = 5.69, I_c = 4.37·10⁸ mm⁴, I_s = 1.26·10⁷ mm⁴, and $\bar{\eta }$ = 0.0287 were used. The creep coefficient ϕ(t, t₀) was calculated by Eq. (5). The elastic lateral displacement δ₀ of each column specimen was used as the values measured by the LVDTs, shown in Fig. 11. The lateral displacements measured by the LVDTs were disturbed at (t − t₀) = 42, 50, and 78 days during the re-tightening process of post-tensioning rods. If such measurement errors were taken into account, the agreements between the predicted and measured lateral displacements might be better.

Fig. 11

Comparisons of predicted and measured lateral displacements of eccentrically loaded column specimens.

The lateral displacement at the top of the eccentrically loaded column specimens can also increase due to the second-order effect (i.e. P-Δ effect). However, the specimens were the short columns where the slenderness effect can be neglected [ACI 318 (ACI Committee 318 2014)].

5 Summary and Conclusions

For eccentrically loaded columns subjected to combined moment and axial load, curvature (or lateral displacement) and axial shortening increase with time due to the creep and shrinkage of concrete. In this study, the time-dependent deformations in eccentrically loaded column were investigated. Six cantilever column specimens were concentrically or eccentrically loaded for 64 days and the long-term deformations depending on the magnitude of axial load and eccentricity were investigated. Such long-term deformations were predicted based on the age-adjusted effective modulus of concrete and transformed section properties. The results of the present study were summarized as follows.

• 1) For the eccentrically loaded column specimens, the lateral displacement due to eccentric moment and axial shortening due to axial compression increased with time. The increasing rates of such long-term deformations rapidly decreased with increasing time.

• 2) The axial shortenings of eccentrically loaded columns were the almost same as that of the concentrically loaded column. The axial shortenings of the eccentrically and concentrically loaded columns agreed well with the predictions based on the existing creep and shrinkage models of concrete specified in ACI 209R-92.

• 3) The curvature or lateral displacement of the eccentrically loaded columns, increasing with time, were also predicted based on the age-adjusted effective modulus of concrete and the concrete creep and shrinkage models in ACI 209R-92. The predicted long-term lateral displacements agreed reasonably with the test results.

As investigated in this study, the sustained moment and resulting long-term deformation increases differential shortening between compression members under construction and ultimately changes member forces by redistributing loads. Thus when designing compression members subjected to high axial load, the effects of the sustained moment and long-term deformation on the behavior of the compression members should be considered.
