Investigation of Bursting Stress and Spalling Stress in Post-tensioned Anchorage Zones

Abstract

Over the past decades, considerable efforts have been made to quantify the bursting forces in the post-tensioned anchorage zones based on the simplified model or fitting formulas, however reproducing the transverse stress distribution is still a challenging topic, which is also important to detail the reinforcing details in the anchorage zones, especially for cracking control. To address this issue, this paper is devoted to seeking an elasticity solution for transverse stresses in the anchorage zones, and providing a more rational equation for transverse distribution in anchorage zones. The sum function of normal stresses is employed to solve the stresses filed in the anchorage zones with concentric load and two eccentric loads. The bursting stresses in the concentric anchorage zones and spalling stresses in the eccentric anchorage zones are verified by the photoelastic tests. The transverse stresses along the symmetry axis of the eccentric anchorage zones can be handled as a concentric single anchorage zone with equivalent bearing plate width. Moreover, according to the concept of force stream tube, the profiles of isostatic line of compression (ILCs) are determined and validated, which confirms the existence of ILCs.

Introduction

The anchorage zone is defined as the portion of structure in which the concentrated post-tensioning forces are transferred from the anchorage device to the structure. In post-tensioned anchorage zones, the spread of the concentrated forces will produce transverse tensile stresses, usually referred to as bursting stresses, along the tendon path. The resultant of the bursting stresses is called bursting forces. Practically, both the bursting forces and the bursting stresses are used to detail the reinforcing details in the anchorage zone.

To date, a large number of studies of the prediction of bursting stresses and bursting forces in anchorage zone have been conducted, including linear elastic studies, finite element analysis, experimental studies and the strut-and-tie models.

Based on the theory of elasticity, Guyon (1953) studied the behavior of a concentric load applied over a rectangular body, and then provided a formulation to determine the bursting stress distribution ahead of a concentric end anchor for different bearing plate ratios. This relation was very influential in the design of anchorage zones. Yettram and Robbins (1970, 1971) reported that the location of uniform stress and the effect of Poisson’s ratio were insignificant to the stress distribution based on elastic finite element analysis. Moreover, the extension of bursting stresses of I-sections was further than in rectangular sections and the flanges played an important role in reducing the spalling stresses. Sanders and Breen (1997) conducted experimental studies of anchorage zones with 36 specimens tested. By assuming that the resulting force at the end of the specimen would be shifted in the direction of the crack, the dispersion angle of the compressive strut should be reduced, then a modified strut-and-tie model was proposed to predict the ultimate load of the anchorage zones. Wollmann (1991) conducted three experimental tests of concentric anchorage zones to study the influence of reaction forces on bursting stresses. For small tendon eccentricity, the influence of reaction forces on linear-elastic bursting forces and the resulting bursting force is conservative and can be neglected. Besides, the reaction forces have little influence on the failure mode of anchorage zones. Based on the results of those tests and finite element analyses, a fitting formula was proposed for calculating the bursting forces for typical anchorage zones (Breen et al., 1994), which had been adopted in the AASHTO-LRFD Bridge Design Specifications (2014) since 1994. Foster and Rogowsky (1997) studied the bursting stress distributions in the case of service load behavior, and distributions in the case of ultimate load behavior of anchorage zones by using rotating crack finite element model. They stated that the bursting stress distribution was flatter than that of the linear analysis due to the stress redistribution after cracking, which led to a conservative estimation of the bursting forces, and then a modified equation was proposed to estimate the load capacity of the anchorage zones. After analyzing the stress magnitudes and distributions of rectangular post-tensioned anchorage zones using ultra-high performance concrete (UHPC), Kim and Kim (2017) concluded that the use of UHPC gives significant reduction of anchorage zone size and no reinforcements are required. Yun (2005) proposed the nonlinear strut-and-tie model approach to predict the behavior of structural concrete, and then extended this study to the ultimate strengths of post-tensioned anchorages by checking the occurrence of a nodal zone failure mechanism, geometric compatibility condition, and the structural instability of the model struts and ties. Following the concept of isostatic line of compression (ILCs) initialed by Guyon (1953), Sahoo et al. (2009) presented an analytical equation for estimating the bursting stress and bursting forces by introducing certain boundary conditions of ILCs. However, this model was imperfect due to some questionable assumptions on the boundary conditions (Windisch, 2010). He and Liu (2011) proposed the compression dispersion model (CDM) by excluding the unreasonable assumptions in Sahoo's model. Nevertheless, the CDM failed to reproduce the bursting stresses along the tendon path due to insufficient boundary conditions. Based on the equilibrium condition at the far-end of the anchorage zones, Zhou et al. (2015) updated the CDM by incorporating two more boundary conditions, and verified by finite element analysis. However, in this updated model, the location of interface section of compressive and tensile stress was assumed to be constant, what is in contradiction with reality.

Over the past decades, considerable efforts have been made to quantify the bursting forces in the post-tensioned anchorage zones based on the simplified model or fitting formulas, however reproducing the transverse stress distribution is still a challenging topic, which is also important to detail the reinforcing details in the anchorage zone. To address this issue, this paper is devoted to seeking an analytical solution for transverse stresses in the anchorage zones, and providing a more rational equation for transverse distribution in anchorage zones.

Stress Solution of Anchorage Zones

Sum Function Method

According to the theory of elasticity (Timoshenko & Goodier, 1951), the equilibrium equation of the plane stress problem can be presented by

$$ \frac{{\partial \sigma_{x} }}{\partial x} + \frac{{\partial \tau_{xy} }}{\partial y} = 0, $$
(1a)
$$ \frac{{\partial \sigma_{y} }}{\partial y} + \frac{{\partial \tau_{xy} }}{\partial x} = 0, $$
(1b)

and then, the equilibrium differential equation can be given by

$$ \nabla^{2} \tau_{xy} = - \frac{{\partial^{2} I}}{\partial x\partial y}, $$
(2)

in which \(\nabla^{2} = \frac{{\partial^{2} }}{{\partial x^{2} }} + \frac{{\partial^{2} }}{{\partial y^{2} }}\); \(I = \sigma_{x} + \sigma_{y}\) is the sum function of normal stresses.

The stress solution should satisfy the harmonious equation, that is

$$ \nabla^{2} I = 0. $$
(3)

As can be seen, the sum function, \(I\), can be figured out from harmonious equation; and then the shear stress can be obtained by substituting \(I\) into Eq. (2); finally, the stress components will be solved based on the equilibrium equations and boundary conditions.

Solution of Stress Components

For the problem as illustrated in Fig. 1, prescribed forces, \(q(y)\), are symmetrically loaded on the plate. According to symmetries, the sum function, \(I\), can be assumed as

$$ I = \sum {f(x)} {\kern 1pt} \cos \beta y, $$
(4)

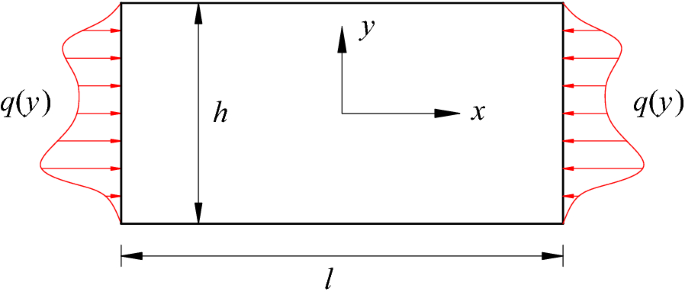

Fig. 1
figure 1

Plate with symmetrically prescribed forces.

in which \(\beta = n\pi /h\), \(f(x)\) is the undetermined functions, and \(h\) is the height of the plate.

Substituting Eq. (4) into Eq. (3) yields

$$ \sum {[f^{\prime\prime}(x) - \beta^{2} f(x)]\cos \beta y} {\kern 1pt} = 0. $$
(5)

Then, the sum function, \(I\), can be solved by

$$ I = \sum {(a_{n} ch\beta x + b_{n} sh\beta x){\kern 1pt} \cos \beta y} , $$
(6)

in which coefficients \(a_{n}\) and \(b_{n}\) can be determined by boundary conditions.

Substituting sum function into Eq. (2), the shear stress can be derived by

$$ \tau_{xy} = \sum {(c_{n} ch\beta x + d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x + \frac{{b_{n} }}{2}\beta xsh\beta x)\sin \beta y} {\kern 1pt} , $$
(7)

where \(c_{n}\) and \(d_{n}\) are constraints determined by boundary conditions.

According to the relationship of normal stress and shear stress illustrated in equilibrium equation, we have

$$ \frac{{\partial \sigma_{x} }}{\partial x} = - \frac{{\partial \tau_{xy} }}{\partial y} = - \sum {\beta (c_{n} ch\beta x + d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x + \frac{{b_{n} }}{2}\beta xsh\beta x)\cos \beta y} {\kern 1pt} , $$
(8a)
$$ \begin{gathered} \frac{{\partial \sigma_{y} }}{\partial y} = - \frac{{\partial \tau_{xy} }}{\partial x} = - \sum {\beta (c_{n} sh\beta x + d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{b_{n} }}{2}\beta sh\beta x} {\kern 1pt} \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + \frac{{a_{n} }}{2}\beta xsh\beta x + \frac{{b_{n} }}{2}\beta xch\beta x)\sin \beta y. \hfill \\ \end{gathered} $$
(8b)

Finally, the stress components can be derived by integrating the above equations:

$$ \begin{gathered} \sigma_{x} = - \sum {(c_{n} sh\beta x + d_{n} ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x - \frac{{a_{n} }}{2}ch\beta x + \frac{{b_{n} }}{2}\beta xch\beta x} \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} - \frac{{b_{n} }}{2}sh\beta x)\cos \beta y + D_{1} (y), \hfill \\ \end{gathered} $$
(9a)
$$ \begin{gathered} \sigma_{y} = \sum {(c_{n} sh\beta x + d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x + \frac{{b_{n} }}{2}\beta xch\beta x} {\kern 1pt} \hfill \\ {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} + \frac{{b_{n} }}{2}sh\beta x)\cos \beta y + D{}_{2}(x), \hfill \\ \end{gathered} $$
(9b)
$$ \tau_{xy} = \sum {(c_{n} ch\beta x + d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x + \frac{{b_{n} }}{2}\beta xsh\beta x)\sin \beta y} {\kern 1pt} , $$
(9c)

in which function \(D_{1} (y)\) and \(D{}_{2}(x)\) are determined by the stress boundary conditions.

Transverse Stress in Concentric Single Anchorage Zone

According to Huang (2012), the anchorage shape and duct hole have little effect on bursting stresses and bursting forces, thus the concentric anchorage zone can be modeled as a plane stress problem as depicted in Fig. 2. The concentric anchor force, \(P\), loaded on the bearing plate can be expressed by the Fourier series,

$$ q(y) = A_{0} - \sum {A_{n} \cos \beta y} , $$
(10)
Fig. 2
figure 2

Concentric anchorage zone.

in which

$$ A_{0} = \frac{aq}{h}, $$
(11a)
$$ A_{n} = \frac{2q}{{h\beta }}\sin a\beta , $$
(11b)

where \(q = P/(at)\); \(a\) is the bearing plate width; and \(t\) is the thickness of the anchorage zone.

From the above equation, the anchor force can be treated as two parts, one of which is a uniform load, \(q_{11} (y) = A_{0}\), and the other a polynomial distributed load, \(q_{12} (y) = \sum {A_{n} \cos \beta y}\).

For the case of uniform load, the stress components in the anchorage zone can be given by

$$ \sigma_{x} = - q_{11} = - aq/h, $$
(12a)
$$ \sigma_{y} = 0, $$
(12b)
$$ \tau_{xy} = 0. $$
(12c)

While for the case of distributed load, the stress boundary conditions can be presented by

$$ \left. {\tau_{xy} } \right|_{x = \pm l} = 0, $$
(13a)
$$ \left. {\sigma_{x} } \right|_{x = \pm l} = \sum {A_{n} \cos \beta y} , $$
(13b)
$$ \int_{ - l}^{l} {\sigma_{y} dx} = 0, $$
(13c)
$$ \int_{ - h}^{h} {\sigma_{x} dy} = P. $$
(13d)

Imposing the stress boundary equations into Eq. (9), we have

$$ a_{n} = A_{n} \frac{2sh\beta l}{{\beta l + sh\beta lch\beta l}} \approx \frac{{2A_{n} }}{sh\beta l}, $$
(14a)
$$ b_{n} = c_{n} = 0, $$
(14b)
$$ d_{n} = - A_{n} \frac{\beta lch\beta l}{{\beta l + sh\beta lch\beta l}} \approx - \frac{{A_{n} \beta l}}{sh\beta l}, $$
(14c)
$$ D_{1} (y) = D_{2} (x) = 0. $$
(14d)

Therefore, the stress induced by the distributed load can be presented by

$$ \sigma_{x} = - \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x - \frac{{a_{n} }}{2}ch\beta x} )\cos \beta y, $$
(15a)
$$ \sigma_{y} = \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x} )\cos \beta y, $$
(15b)
$$ \tau_{xy} = \sum {(d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x)\sin \beta y} {\kern 1pt} . $$
(15c)

Finally, the stress components in the concentric anchorage zone can be derived by

$$ \sigma_{x} = - \frac{aq}{h} - \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x - \frac{{a_{n} }}{2}ch\beta x} )\cos \beta y, $$
(16a)
$$ \sigma_{y} = \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x} )\cos \beta y, $$
(16b)
$$ \tau_{xy} = \sum {(d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x)\sin \beta y} {\kern 1pt} . $$
(16c)

According to Eq. (16b), the transverse stress along the tendon path, i.e., \(y = 0\), can be obtained by

$$ \sigma_{y} = \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x} ) \approx \sum {\frac{{a_{n} }}{2}(1 + \beta x - \beta l)ch\beta x} . $$
(17)

Representing the above equation by the fourth-order Taylor series expansion, that is,

$$ \sigma_{y} = \sum {\frac{{A_{n} }}{sh2n\pi }(\frac{\pi x}{h} - 5.28)(1 + \frac{{\pi^{2} x^{2} }}{{2h^{2} }} + \frac{{\pi^{4} x^{4} }}{{24h^{4} }})} . $$
(18)

Cartesian coordinate system is established in the anchorage zone as shown in Fig. 3, the direction parallel to the load is set to be the x-axis. Therefore, the bursting stress in the concentric anchorage zone can be approximated by the first two terms:

$$ \sigma_{Tc} = - \frac{{12P\sqrt {\sin (\pi a/2h)} (h - a)}}{{h^{6} t}}(x - \frac{{h\sqrt {\sin (\pi a/2h)} }}{4})(x - h)^{3} . $$
(19)
Fig.3
figure 3

Concentric anchorage zone with single load.

It can be seen that the interface section of compressive and tensile stress is located at \(x_{0} = \frac{{h\sqrt {\sin (\pi a/2h)} }}{6}\), where the transverse stress is equal to zero. And the transverse stress reaches its maximum value \(\sigma_{T,\max }\) at \(x = (h + 3x_{0} )/4\)

$$ \sigma_{Tc,\max } \approx \frac{0.57P(h - a)}{{h^{2} t}}. $$
(20)

Thus, the bursting force along the tendon axis \(T_{b}\) can be written as

$$ T_{b} = \int_{{x_{0} }}^{h} {\sigma_{Tc} } tdx \approx 0.24P(1 - \frac{a}{h}). $$
(21)

It can be seen that the bursting forces in concentric anchorage zones agree well with the formulas given by current design codes (ACI 318-08 2008, AASHTO, 2014, CEB-FIP 1990)

$$ T_{b} = 0.25P(1 - \frac{a}{h}). $$
(22)

Transverse Stress in Anchorage Zones with Two Anchors

As for the problem illustrated in Fig. 4, the two anchor forces, having their centers at a distance \(e\) in the x-direction, can be expressed by

$$ q(y) = B_{0} + \sum {B_{n} \cos \beta y} , $$
(23a)
Fig. 4
figure 4

Anchorage zone with two anchor forces.

in which

$$ B_{0} = \frac{2aq}{h}, $$
(23b)
$$ B_{n} = \frac{4q}{{\beta h}}\cos e\beta \sin a\beta . $$
(23c)

Similarly, the anchor forces can be divided into two parts, that is, a uniform load, \(q_{21} (y) = B_{0}\), and a polynomial distributed load, \(q_{22} (y) = \sum {B_{n} \cos \beta y}\).

Following the similar method as mentioned before, the stress solution of the anchorage zone with two eccentric anchor loads can be given by

$$ \sigma_{x} = - \frac{2aq}{h} - \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x - \frac{{a_{n} }}{2}ch\beta x} )\cos \beta y, $$
(24a)
$$ \sigma_{y} = \sum {(d_{n} ch\beta x + \frac{{a_{n} }}{2}ch\beta x + \frac{{a_{n} }}{2}\beta xsh\beta x} )\cos \beta y, $$
(24b)
$$ \tau_{xy} = \sum {(d_{n} sh\beta x + \frac{{a_{n} }}{2}\beta xch\beta x)\sin \beta y} {\kern 1pt} , $$
(24c)

in which

$$ a_{n} = B_{n} \frac{2sh\beta l}{{\beta l + sh\beta lch\beta l}} \approx \frac{{2B_{n} }}{sh\beta l}, $$
(25a)
$$ d_{n} = - B_{n} \frac{\beta lch\beta l}{{\beta l + sh\beta lch\beta l}} \approx - \frac{{B_{n} \beta l}}{sh\beta l}. $$
(25b)

Then, the transverse stress, \(\sigma_{y}\), in the Cartesian coordinate system as shown in Fig. 5, can be approximated by

$$ \sigma_{y} \approx \frac{4q}{{\pi sh2\pi }}\cos \frac{e\pi }{h}\sin \frac{a\pi }{h}(1 + \frac{\pi }{h}x)ch(\frac{\pi }{h}x - 2\pi )\cos \frac{\pi }{h}y. $$
(26)
Fig. 5
figure 5

Anchorage zone with two anchor forces.

As can be seen, the magnitude of transverse stress is mainly dependent on the eccentricity \(e\). When the anchor devices are placed at the quarter points, that is \(e = h/2\), no transverse stress will be produced in the anchorage zone. While for the case of the anchor forces acting over half of the depth, that is, \(e > h/2\), strain compatibility will produce spalling stress between the anchors, and the dispersion of concentric loads will generate bursting stress. Similarly, the spalling stress along the x-axis, \(\sigma_{Ts}\), and the transverse bursting stress along the tendon path, \(\sigma_{Tb}\), can be approximated by

$$ \sigma_{Ts} = \frac{{26P\sqrt {\sin \pi a_{s} /2h} (h - a_{s} )}}{{h^{6} t}}\left[x - \frac{{h\sqrt {\sin \pi a_{s} /2h} }}{6}\right](x - h)^{3} , $$
(27a)
$$ \sigma_{Tb} = - \frac{{6P\sqrt {\sin \pi a/2h^{\prime}} (h^{\prime} - a)}}{{h^{{\prime}{6}} t}}\left[x - \frac{{h^{\prime}\sqrt {\sin \pi a/2h^{\prime}} }}{6}\right](x - h^{\prime})^{3} , $$
(27b)

in which \(a_{s} = 2e - h\); and \(h^{\prime} = h - e\).

Equation (27) shows that the bursting stress along the tendon path in the anchorage zone with two eccentric anchor loads is equal to the bursting stress in the concentric anchorage zone with the depth \(h^{\prime} = h - e\), which is the principle of symmetrical prism proposed by Guyon (1953).

The corresponding spalling forces, \(T_{s}\), and bursting forces, \(T_{b}\), can be given by

$$ T_{s} \approx 0.12\frac{{P(h - a_{s} )}}{h}, $$
(28a)
$$ T_{b} \approx 0.12P(1 - \frac{a}{h - e}). $$
(28b)

While for the case of \(e < h/2\), the transverse stress along the x-axis, \(\sigma_{Tb}\), can be rearranged by

$$ \sigma_{T} = - \frac{{12P\sqrt {\sin \pi a_{b} /2h} (h - a_{b} )}}{{h^{6} t}}\left[x - \frac{{h\sqrt {\sin \pi a_{b} /2h} }}{6}\right](x - h)^{3} , $$
(29)

where \(a_{b} = 2e\).

Then, the bursting forces, \(T_{b}\), can be obtained by

$$ T_{b} \approx 0.24P(1 - \frac{e}{h}). $$
(30)

It can be seen that when the multi-anchors are placed inside the quarter points, that is, the anchor spacing is less than \(0.5h\), the multi anchorage zone can be handled as a concentric anchorage zone with the bearing plate width \(a_{b} = 2e\); while the two anchors are placed outside the quarter points, the spalling stress will be produced between the anchors, and its distribution can be approximated by the negative value of the bursting stress in the concentric anchorage zone with bearing plate width \(a_{s} = 2e - h\). Thus, a unified equation can be presented to express the transverse stress along the centerline of anchorage zone

$$ \sigma_{Tb} = \mp \frac{{12P\sqrt {\sin \pi a_{e} /2h} (h - a_{e} )}}{{h^{6} t}}[x - \frac{{h\sqrt {\sin \pi a_{e} /2h} }}{6}](x - h)^{3} , $$
(31)

in which \(a_{e}\) is the equivalent bearing plate width and can be defined by

$$ a_{e} = \left\{ \begin{gathered} e{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} e < h/2 \hfill \\ e - h/2{\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} {\kern 1pt} e > h/2 \hfill \\ \end{gathered} \right.. $$
(32)

Validation

Test Program

In order to verify the accuracy of the proposed equations, 10 photoelastic tests (Timoshenko & Goodier, 1951) have been carried out. All the test specimens are made of polycarbonate, and have the rectangular cross section \(b \times t = 80 \times 8{\kern 1pt} {\kern 1pt} {\kern 1pt} mm\). Young’s modulus of polycarbonate is taken to be \(E = 3200MPa\), Poisson’s ratio as \(\nu = 0.37\), and photoelastic material fringe value as \(f = 308N/order/m\). Details of the test specimens are listed in Table 1. All of the test specimens are monotonically loaded over the full thickness so that the specimen would behave as two-dimensional as possible. Specimens C1–C5 were tested to investigate the effect of the bearing plate ratio to the transverse bursting stress in concentric anchorage zones as shown in Fig. 6; while M1–M5 were tested to study the influence of eccentricities on transverse stress.

Table 1 Details of the test specimens.

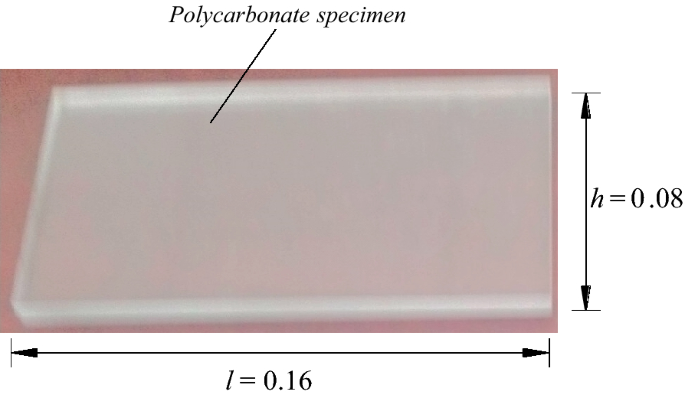

Fig. 6
figure 6

Test specimen (unit: m).

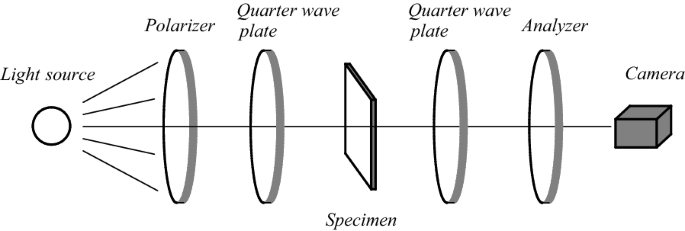

Fig. 7 illustrates the experimental setup to obtain photoelasticity images, which consists of light source, polarizer, quarter wave plate, analyzer and camera. Two setups were used, one for employing white light and the other for monochromatic light, the use of which will be explained later.

Fig. 7
figure 7

Setup for analysis by photoelasticity.

Test Procedure

During the test, the light will be linearly polarized by the polarizer and circularly polarized by the first quarter wave plate. After passing through the test specimen, the light is linearly polarized by the second quarter wave plate and passes through the analyzer, which creates dark or bright regions, i.e., the fringe pattern. The fringe pattern is then captured by the camera. The brief test can be illustrated as following:

  1. 1.

    Apply load gradually to the test specimen in the circular polariscope system obtained from the white light source. Capture the isochromatic patterns (see Figs. 8a and 9a).

  2. 2.

    In the dark-field orthogonal linear polarization system obtained from the monochromatic light, make sure that the polarization axis of the polarizer is parallel to the ground and that of the analyzer is vertical to the ground. Capture the isoclines patterns.

  3. 3.

    Rotate polarizer and analyzer by 5 degrees simultaneously. Capture the isoclines patterns.

  4. 4.

    Repeat step 3 until the a complete rotation of 90 degrees. Capture the isoclines patterns (see Figs. 8b and 9b).

Fig. 8
figure 8

Photoelasticity images for the concentric anchorage zones with a/h = 0.1; a isochromatic pattern; and b isocline patterns at 30 degrees.

Fig. 9
figure 9

Photoelasticity images for the multi concentric anchorage zones with anchor spacing e/h = 0.6; a isochromatic pattern; and b isocline patterns at 10 degrees.

Stress Solution

According to the photoelasticity images captured by camera, the isochromatic and isocline patterns can be sketched as shown in Fig. 10a. Following the shear difference method (Frocht 1941), the stress components in the desired integration path MN (see Fig. 10b) can be given by

$$ (\sigma_{x} )_{i} = (\sigma_{x} )_{i - 1} - \left. {(\Delta \tau_{xy} )} \right|_{i - 1}^{i} \frac{\Delta x}{{\Delta y}}, $$
(33a)
$$ (\sigma_{y} )_{i} = (\sigma_{x} )_{i} \pm \left| {m\cos 2\alpha } \right|, $$
(33b)
$$ \tau_{xy} = \frac{m}{2}\sin 2\alpha , $$
(33c)
Fig. 10
figure 10

Photoelasticity images for concentric anchorage zones with a/h = 0.1: a isochromatic and isocline sketches; and b path of integration.

in which

$$ \Delta \tau_{xy} = (\tau_{xy} )_{AB} - (\tau_{xy} )_{CD} , $$
(34a)
$$ \left. {(\Delta \tau_{xy} )} \right|_{i - 1}^{i} = \frac{{(\Delta \tau_{xy} )_{i - 1} + (\Delta \tau_{xy} )_{i} }}{2}, $$
(34b)

where \(m\) is the order isochromatic, \(\alpha\) is the inclination of the isocline with respect to x-axis.

Table 2 lists the stress solution of the section MN, at a depth of 0.5 h below the loading plate, in the concentric anchorage zone with a/h = 0.1. Fig. 11a, b show the test normal stress components in anchorage zone with single concentric load and two eccentric anchor loads.

Table 2 Stress components calculated by shear difference method.

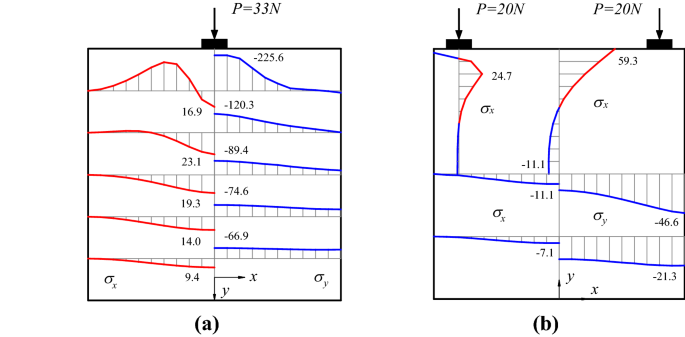

Fig. 11
figure 11

Test stress isoline of the anchorage zones (unit kPa): a concentric anchorage zone with a/h = 0.1; and b multi anchorage zone with e/h = 0.8.

Concentric Anchorage Zones

Fig. 12 shows the comparisons of the bursting stresses in the concentric anchorage zones calculated by different methods. It can be seen that the proposed equation can predict the transverse tensile stress accurately, and the maximum relative error is only 3.2%. It also should be noted that the interface section of compressive and tensile stress, where transverse stress \(\sigma_{b} = 0\), varies with the bearing plate ratio. In recent previous analytical studies of the bursting stresses (He et al., 2011; Zhou et al., 2015), the interface section was assumed to be constant. Actually, as early as 1950s, Guyon (1953) presented a fitting formula to capture the location of this section as shown in Fig. 13. It is clear that both Eq. (19) and Guyon's formula (1953) produce a good agreement with the test results, and the predicted values of Eq. (19) are on average 96.4% of the test values, with a standard deviation of 2.7%; these two numbers are 104.8% and 3.7%, respectively, for Guyon equation (1953).

Fig. 12
figure 12

Transverse stress in the concentric anchorage zones with different bearing plate ratio.

Fig. 13
figure 13

The interface section of compressive and tensile stress.

Fig. 14 illustrates the comparison of bursting force with different bearing plate ratios. As can be seen, both Eq. (21) and AASHTO (2014) equation agree well with the test results. The average relative deviations are only 5.7 and 3.8%, respectively.

Fig. 14
figure 14

Bursting forces in concentric anchorage zones.

Two Anchorage Zones

The transverse stress along the centerline of specimen for the anchorage zone with two eccentric anchor loads with different anchor spacing is illustrated in Fig. 15. It can be seen that the proposed Eq. (30) give very close results to the test transverse stress. The average relative deviation is only 4.8%. Fig. 16 shows the influence of the anchor spacing on the transverse tensile forces in anchorage zones (the size of anchor plate is kept constant at a = 0.1 h). It indicates that the proposed equation produces a good agreement with the test results, the average relative deviation is only 4.0%.

Fig.15
figure 15

Transverse stress in multi anchorage zone.

Fig. 16
figure 16

Transverse tensile forces in the multi anchorage zones.

Towards the Existence of ILCs

As early as 1953, Guyon (1953) used the ILCs to visualize the flow of forces in post-tensioned anchorage zones as shown in Fig. 17. Each individual ILC transfers an equal share of the force, which induces a certain amount of transverse stress depending on its curvature. However, this is just a conceptual model, and the existence of ILCs is presently unproven.

Fig. 17
figure 17

ILCs in anchorage zones.

Although the longitudinal compressive stress in anchorage zones will be effected by the duct hole significantly (Park et al., 2020), it has little effect on the distribution of transverse bursting stress (Huang, 2012). Thus, the anchorage zone can be idealized as a concrete block without hole. According to the concept of Guyon (1953), there must exist an ILC along the centerline of the anchorage zone. Referring to Fig. 18a, the force stream tube (Kelly & Elsley, 1995) bounded by two ILCs is considered. The force over flow tube should satisfy

$$ F_{j} = F_{j - 1} = P\Delta a/a, $$
(35)

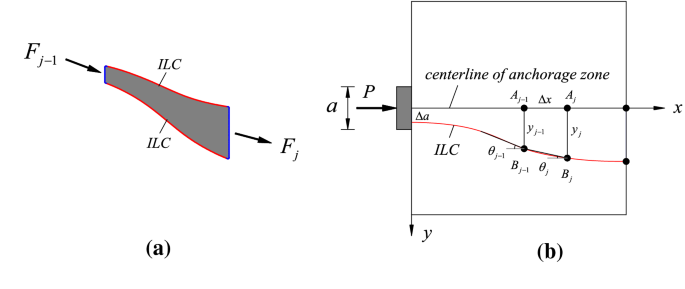

Fig. 18
figure 18

Determination the profile of ILC in concentric anchorage zone: a force stream tube; and b location of ILC.

in which \(P\) is the anchor force; and \(a\) is width of anchorage zone; \(\Delta a\) is the vertical distance between the centerline line and ILC; \(F_{j}\) is the force in the stream tube in the arbitrary section and can be defined by

$$ F_{j} = \frac{{(\sigma_{x,Aj} + \sigma_{x,Bj} )t}}{{2\cos \frac{{\theta_{j} }}{2}}}y_{j} , $$
(36)

in which \(\sigma_{y,Aj}\) and \(\sigma_{y,Bj}\) are the x-direction normal stresses of the centerline and ILC at \(x = A_{j}\), respectively; \(t\) is the thickness of anchorage zone; \(y_{j}\) is the vertical distance between the centerline line and ILC at \(x = A_{j}\); and \(\theta_{j}\) is the local angular orientation of the force tube wall.

Substituting Eq. (35) into Eq. (36) leads to

$$ y_{j} = \frac{2P}{{(\sigma_{x,Aj} + \sigma_{x,Bj} )t}}\frac{\Delta a}{a}\cos \frac{{\theta_{j} }}{2}. $$
(37)

According to the geometrical condition of the ILC as illustrated in Fig. 18b, we have

$$ y_{j} = y_{j - 1} + \Delta x\tan \theta_{j - 1} . $$
(38)

As can be seen from the above equation, if \(y_{1} = \Delta a\) and \(\Delta x\) is specified, the vertical location of the ILCs will be determined by an iterative solution. Fig. 19 illustrates the shapes of ILCs in concentric anchorage zone with different bearing plate ratios, in which only a single ILC is plotted for the sake of simplification.

Fig. 19
figure 19

ILCs in the concentric anchorage zones with different bearing plate ratio.

Thus, the bursting forces can be derived by

$$ T = \int {\sigma_{tran} } tdx = \int { - \frac{P}{t}\frac{{d^{2} y}}{{dx^{2} }}} tdx = - P\left. {\frac{dy}{{dx}}} \right|_{{x = x_{0} }}^{{}} . $$
(39)

According to the geometrical condition as shown in Fig. 19, the slope of the ILCs at the inflection point can be approximated by

$$ \left. {\frac{dy}{{dx}}} \right|_{{x = x_{0} }}^{{}} = \tan \theta \approx 2m/(1 - m^{2} ), $$
(40)

in which \(m = (\Delta h - \Delta a)/l\); \(\Delta h\) and \(\Delta a\) are the vertical value of ILCs at starting point and ending point, respectively.

Table 3 lists the bursting forces in the concentric anchorage zone predicted by the proposed equation and ILCs. As can be seen, the predictions of ILCs agree well with the test results. The average discrepancy between the ILCs predictions and test results is only 13%, which is mainly induced by iterative process. Therefore, the ILCs found by proposed method can reveal the load transfer mechanism in anchorage zones. That is, ILCs are real existence in the anchorage zones and transmit the anchor loads to the far-end section.

Table 3 Bursting forces calculated by different methods.

Conclusions

To clear the stress field in the anchorage zones, an elasticity solution of the transverse stress is derived based on the sum function method. The sum function of normal stresses can be figured out from harmonious equation, and then the stress field in the anchorage zone can be determined by equilibrium equations and boundary conditions. According to the photoelastic test results and their comparison with the proposed equations, the following conclusions can be drawn:

  1. (1)

    The proposed equations can reproduce the transverse stress in concentric anchorage zones, and is verified to have good accuracy by comparisons with test results. On the other hand, the other existing analytical models cannot predict the transverse stress distribution accurately, due to the incorrect location of the interface section of compressive and tensile stress.

  2. (2)

    The transverse stress along the symmetry axis of the anchorage zone with two eccentric anchor loads can be handled as a concentric single anchorage zone with equivalent bearing plate width.

  3. (3)

    It is very interesting that the bursting stress along the tendon path in the anchorage zone with two anchors is equal to the bursting stress in the concentric anchorage zone with the depth \(h^{\prime} = h - e\), which is the principle of symmetrical prism.

  4. (4)

    The major significance of this investigation not only lies in reproducing the transverse stress in anchorage zones, but also in confirming the existence of the ILCs.

Availability of data and materials

All data, models, or code that support the findings of this study are available from the corresponding author upon reasonable request. All data, models, and code generated or used during the study appear in the submitted article.

Abbreviations

\(a\) :

Width of the bearing plate along the direction of the beam height

\(h\) :

Height of the beam

\(t\) :

Thickness of the anchorage zone

\(P\) :

Anchor force

\(e\) :

Eccentricity of the anchoring point to the centroid anchorage zone

\(\sigma_{x}\), \(\sigma_{y}\), \(\tau_{xy}\) :

Normal stresses and shear stress

\(I = \sigma_{x} + \sigma_{y}\) :

Sum function of normal stresses

\(\sigma_{Tc}\) :

Bursting stresses distribution of concentric anchorage zone

\(\sigma_{T,\max }\) :

Maximum bursting stresses in concentric anchorage zone

\(T_{b}\) :

Bursting force in concentric anchorage zone

\(\sigma_{Tb}\) :

Bursting stresses distribution of eccentric anchorage zone

\(\sigma_{Ts}\) :

Spalling stresses of eccentric anchorage zone

\(T_{b}\) :

Bursting force in eccentric anchorage zone

\(T_{s}\) :

Spalling force in eccentric anchorage zone

\(\sigma_{T}\) :

Transverse stress along the centerline of anchorage zone

\(a_{e}\) :

Equivalent bearing plate width

\(F_{j}\) :

Force in stream tube at arbitrary section

\(y_{j}\) :

Vertical distance between the centerline line and ILC

\(\theta_{j}\) :

Local angular orientation of the force tube wall

\(\Delta h\), \(\Delta a\) :

Vertical value of ILCs at starting point and ending point, respectively

References

  • AASHTO. (2014). AASHTO LRFD bridge design specifications. American Association of State Highway and Transportation Officials.

    Google Scholar

  • ACI committee 318, (2008). Building Code Requirements for Structural Concrete (ACI 318–08) and Commentary (ACI 318R-08). Farmington Hills (MI), American Concrete Institute.

  • Breen, J. E., Burdet, O., Roberts, C., Sanders, D., & Wollmann G. (1994). Anchorage zone reinforcement for post-tensioned concrete girders, National Cooperative Highway Research Program Report 356, Washington, D. C., p. 8–11.

  • Comité Euro-International du Béton, Fédération International de la Précontrainte (CEB-FIP), (1990). Practical design of structural concrete. London, UK.

  • Foster, J., & Rogowsky, M. (1997). Bursting forces in concrete panels resulting from in-plane concentrated loads. Magazine of Concrete Research, 180, 231–240.

    Article  Google Scholar

  • Frocht, M.M. (1941). Photoelasticity. John Wiley & Sons, Inc.

    Google Scholar

  • Guyon, Y. (1953). Prestressed concrete. John Wiley and Sons Inc.

    Google Scholar

  • He, Z., & Liu, Z. (2011). Investigation of bursting forces in anchorage zones: Compression-dispersion models and unified design equation. ASCE Journal of Bridge Engineering, 16(6), 820–827.

    Article  Google Scholar

  • Huang, H. Q. (2012). Reinforcement design for anchorage zone in post tensioned end block based on strut and tie model. Master thesis, Southeast University.

  • Kelly, D., & Elsley, A. (1995). Procedure for determining load paths in elastic continua. Engineering Computations, 5, 415–424.

    Article  Google Scholar

  • Kim, J. S., & Kim, T. H. (2017). A stress analysis of the post-tensioned anchorage zones using UHPC. Key Engineering Materials, 737, 500–504.

    Article  Google Scholar

  • Park, Y. H., Kim, M. Y., Park, J. M., & Jeon, S. J. (2020). An improved equation for predicting compressive stress in posttensioned anchorage zone. Advances in Civil Engineering, 2020, 5635060.

    Google Scholar

  • Sahoo, D. K., Singh, B., & Bhargava, P. (2009). Investigation of dispersion of compression in bottle-shaped struts. ACI Structural Journal, 106, 178–186.

    Google Scholar

  • Sanders, D., & Breen, J. E. (1997). Post-tensioned anchorage zones with single straight concentric anchorages. ACI Structural Journal, 2, 146–158.

    Google Scholar

  • Timoshenko, S., & Goodier, J. (1951). Theory of elasticity. Mcgraw-Hill book company.

    MATH  Google Scholar

  • Windisch, A. (2010). Investigation of dispersion of compression in bottle-shaped struts-discussion. ACI Structural Journal, 107, 124–126.

    Google Scholar

  • Wollmann, G. (1991). Design of anchorage zones in post-tensioned concrete structures. PhD dissertation, University of Texas at Austin.

  • Yettram, A. L., & Robbins, K. (1970). Anchorage zone stresses in post-tensioned uniform members with eccentric and multiple anchorages. Magazine of Concrete Research, 73, 209–218.

    Article  Google Scholar

  • Yettram, A. L., & Robbins, K. (1971). Anchorage zone stresses in axially post-tensioned I-section members with end-blocks. Magazine of Concrete Research, 74, 37–42.

    Article  Google Scholar

  • Yun, Y. M. (2005). Evaluation of ultimate strength of post-tensioned anchorage zones. Journal of Advanced Concrete Technology, 3, 149–159.

    Article  Google Scholar

  • Zhou, L., Liu, Z., & He, Z. (2015). Further investigation of transverse stresses and bursting forces in post-tensioned anchorage zones. Structural Concrete, 16, 84–92.

    Article  Google Scholar

Download references

Acknowledgements

The research team for new long-span bridges in Southeast University, Nanjing, China, is gratefully acknowledged for the test program in this paper.

Funding

This study was supported by the National Natural Science Foundation of China (Grant No. 51808208) and the fundamental research funds for the central universities (Grant No. 2242021R20011).

Author information

Authors and Affiliations

Authors

Contributions

The author has contributed substantially to all aspects of this article. The author read and approved the final manuscript, and has the appropriate permission and rights to the reported data. All authors read and approved the final manuscript.

Authors' information

Linyun Zhou is a post-doc in Southeast University, School of Transportation. His research interest included strut-and-tie model, bridge engineering, and UHPC.

Corresponding author

Correspondence to Linyun Zhou.

Ethics declarations

Competing interests

The authors declare that there have no competing interests in this paper.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Journal information: ISSN 1976-0485/eISSN 2234-1315

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Zhou, L. Investigation of Bursting Stress and Spalling Stress in Post-tensioned Anchorage Zones. Int J Concr Struct Mater 15, 51 (2021). https://doi.org/10.1186/s40069-021-00490-9

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40069-021-00490-9

Keywords

  • prestressed concrete
  • anchorage zone
  • bursting stress
  • spalling stress
  • photoelastic test
  • isostatic line of compression
