Analytical Performance Assessment of Deteriorated Prestressed Concrete Beams
International Journal of Concrete Structures and Materials volume 17, Article number: 59 (2023)
Abstract
In this paper, a new approach is developed to numerically evaluate the structural performance of deteriorated prestressed concrete beams using the finite element analysis application RCAHEST (Reinforced Concrete Analysis in Higher Evaluation System Technology). A prestressing steel element was modified to represent the interaction between deteriorated concrete and prestressing steel. Considering the corrosion effects—as shown by the reduction of the prestressing steel section and loss of bond—a nonlinear material model was proposed for deteriorated prestressed concrete behavior. The modified damage index is intended to provide a numerical method for quantifying the structural performance of deteriorated prestressed concrete beams. The analytical procedure developed for the performance evaluation of deteriorated beams was validated by comparison with the credible test results, thereby enabling a more reliable and rational prestressed concrete beams design process.
1 Introduction
Prestressed concrete (PSC) structures often reside in corrosive environments—including oceans and salinized or deicing salt environments—where the prestressing system corrodes easily. Numerous resources have been devoted to the repair and rehabilitation of deteriorating PSC members.
Carbonation of concrete, alkalisilica chemistry, and corrosion of steel reduce the strength and stiffness of PSC structures due to longterm environmental effects. As corrosion processes, not only does the mass of the steel decrease, but the ductility of the material decreases, leading to brittle failure (Du et al., 2005; Franceschini et al., 2022; Hanjari et al., 2011; Jeon et al., 2019; Shaikh, 2018; Tapan, 2007; Xu et al., 2021, 2022; Yanaka et al., 2016).
In addition, many efforts have been made in understanding the deterioration of PSC structures. However, only limited studies (Coronelli et al., 2009; Dai et al., 2016; Ramseyer & Kang, 2012) have been done on the performance assessment of deteriorated PSC beams.
In PSC structures, the potential consequences of steel corrosion are severe than in reinforced concrete (RC) structures because prestressing steel is subjected to high stresses, when combined with crosssection reductions and notch effects can be fatal to safety. Pitting corrosion typically occurs in the case of natural corrosion, which results in the localization of strain and stress, leading to strand breakage. In particular, the bond loss between prestressing steel and concrete can decrease the prestressing force, the deterioration of the steel leading to the brittle failures (ACI 222.2R01, 2001; Li et al., 2017; MacDougall & Bartlett, 2002; Rinaldi et al., 2010; Wang et al., 2014).
This study aims to provide insight into the numerical performance assessment, as experimental assessment of their structural performance can be expensive and time consuming.
Consequently, the author developed a numerical evaluation method for deteriorated PSC beams using modified damage indices. RCAHEST, a nonlinear analysis application used for assessing concrete structures, was used (Kim, 2019, 2022; Kim et al., 2003, 2005, 2007).
To evaluate the ability of RCAHEST to forecast the structural performance of deteriorated PSC beams, computational results using the modified application were compared to reliable experimental results by Rinaldi et al. (2010).
2 Nonlinear Finite Element Analysis Application, RCAHEST
The modified computer application, RCAHEST (Kim, 2019, 2022; Kim et al., 2003, 2005, 2007), was developed around an application shell called FEAP (Taylor, 2000). FEAP features a modular structure, as well as facilities for introducing custom finite elements, input utilities, and procedures.
The authors tried to implement such RC plane stress element and prestressing steel element which is newly developed to represent the interaction between concrete and prestressing steel.

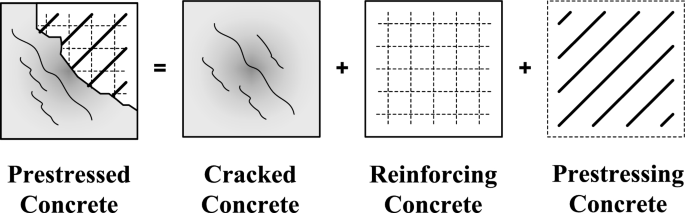

The finite element model for PSC consists models that describe the inelastic behaviors of concrete, reinforcing and prestressing steels (see Fig. 1).
Concrete models can be classified as cracked concrete models and isotropic uncracked concrete models. The elastoplastic and fracture model (Maekawa & Okamura, 1983), which is widely used for biaxial stress state, is used for uncracked concrete. For cracked concrete, three models were used to represent the concrete behavior (see Fig. 2), the basic model used to represent cracking is the nonorthogonal fixedcrack model using the concept of smeared crack.
By converting the tensile stresses of the concrete into a component perpendicular to the crack, an accurate tensile stiffening model can be obtained, especially when there is a significant difference in the ratio of reinforcing bar in the orthogonal direction or when the reinforcement is distributed in only one direction. A modified elastoplastic fracture model was used to represent the compression behavior of the concrete struts between cracks in the crack plane direction. The model represents the degradation of the compressive stiffness by modifying the fracture parameters with strain perpendicular to the crack plane. To account for the effect of shear stress transfer due to aggregate interlocking on the crack surface, a shear transfer model based on the density function of the contact surface was used, assuming that the contact surfaces react elastoplastically.
The stresses acting on rebar embedded in concrete are not uniform, with stress values being maximized at points where the rebar is exposed to the crack plane. If the stress–strain relation is in the elastic range, the constitutive law of bare reinforcement can be used. The postyield constitutive method for reinforcement in concrete considers the bond properties, and the model is bilinear.
3 Modified Nonlinear Finite Element Model
3.1 Model for Prestressing Steel
The stresses acting on the prestressing steel embedded in the concrete are not uniform, and the greatest stress values at locations where the steels are exposed to the crack plane. If the stress–strain relation is in the elastic range, the constitutive equation for bare prestressing steel can be used.
The postyield relation of the reinforcement in concrete is based on consideration of the bond properties (Kim et al., 2003). Bilinear diagrams used to describe the behavior of mild steel shows rough yielding, but cannot be immediately extrapolated to prestressing steel, and a multilinear approximation method may be required for prestressing steels without an explicit yield point. Therefore, the formulation was modified (see Fig. 3), the stress–strain relation for prestressing steel with bond effect was used, as follows:
where \({f}_{\mathrm{pt}}\) = the prestressing steel stress; \({f}_{\mathrm{py}}\) = the prestressing steel yielding strength; \({f}_{\mathrm{pu}}\) = the prestressing steel ultimate strength; \({\upvarepsilon }_{\mathrm{py}}\) = the prestressing steel yielding strain; \({\upvarepsilon }_{\mathrm{pu}}\) = the prestressing steel ultimate strain; and \({E}_{\mathrm{ph}1}, {E}_{\mathrm{ph}2}\)= the strain hardening rates.
Moreover, the author has provided a complete description of finite element model for concrete structures (Kim, 2019, 2022; Kim et al., 2003, 2005, 2007).
3.2 Deterioration Modeling in Prestressed Concrete
The deteriorated model proposed considered both localized and uniform corrosion and included a reduction in the bond strength and crosssectional area (BastidasArteaga, 2018; Dai et al., 2016; Du et al., 2005; Fernandez & Berrocal, 2019; Franceschini et al., 2022; Jeon et al., 2019; Song et al., 2019).
The two main forms of corrosion in prestressing steels are stress corrosion cracking and pitting corrosion, the pits reducing the steel crosssectional area and increasing stress, which can lead to brittle fracture (Coronelli et al., 2009; Lignola et al., 2012; US Federal Highway Administration, 2000).
A model developed by Bhargava et al. (2007) was used in the nonlinear finite element model to evaluate corroded steel and concrete deterioration (Kim, 2022), the equations derived by conducting experimental tests on corroded RC specimens being modified as follows:
where \({R}_{p}\) = the ratio of the bond strength of corroded prestressing steel to that of noncorroded prestressing steel; \({C}_{p}\) = the corrosion level; \({\Delta W}_{p}\) = the average mass loss of corroded prestressing steel; and \({W}_{p}\) = the mass of noncorroded prestressing steel.
The area \({A}_{pc}\) of the corroded prestressing steel can be calculated by next equation:
where \({A}_{p}\) = the noncorroded prestressing steel area.
4 Analytical Performance Assessment of Deteriorated Prestressed Concrete Beams Using Modified Damage Indices
For the first time, an analytical performance assessment process using damage indices was proposed to evaluate the seismic performance levels of RC bridge piers. Explicit descriptions of the various performance levels are defined using the proposed criteria (Kim et al., 2007).
The widely used damage index such as Park and Ang (1985) is focused on the relation between the structural states and damage indices. Estimating damage indices at the structural level is a method to quantitatively assess structural damage, but it has an additional calculation process that is inconvenient. The elementlevel damage indices are calculated from the strain at the point of Gaussian integration calculated by the nonlinear analysis of each element, thus reducing inconvenience.
Damage indices were modified from a numerical parametric study of deteriorated PSC beams using nonlinear analysis. The analytical parametric study was done to examine the effects of the concrete strength, reinforcing and prestressing steel strength, size and tie spacing.
Figure 4 provides descriptions of the three structural performance levels that may be associated with deteriorated PSC beams. At the fully operational level, almost no damage exists and no repair is required. At the delayed operational level, full utilization could be compromised, which could require repair. Finally, at the stability level, considerable damage requires a full or partial replacement. Kim et al., (2007) and Kim, (2019) provided a full description of analytical performance evaluation using the damage indices.
5 Numerical Examples
The experimental data for the deteriorated PSC beams obtained by Rinaldi et al., (2010) were used to verify the developed assessment method.
5.1 Description of Deteriorated Prestressed Concrete Beam Specimens

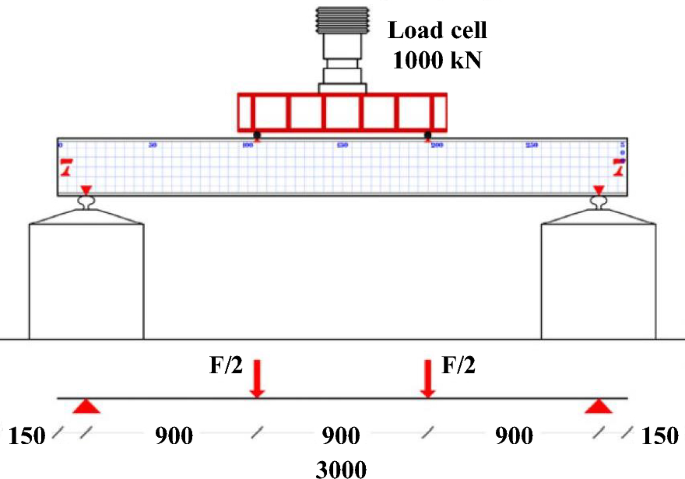

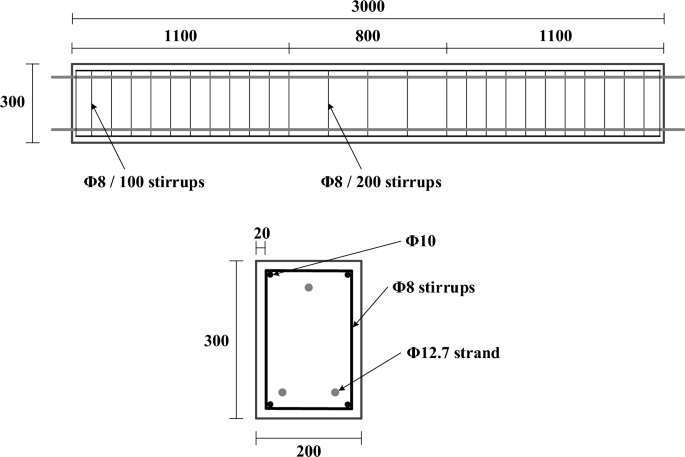

Six prestressed beams were artificially corroded and subjected to fourpoint bending test. Figure 5 shows the beam specimen details and steel arrangement. Prestressing is provided by 12.7 mm sevenwire strands, one located at the top of the section and two located at the bottom. Epoxycoated reinforcing steels are used for corrosion, with Table 1 listing the properties of the prestressing steels and concrete.
Two bottom prestressing steels were subjected to artificial corrosion as these prestressing steels were in the tension zone. Special handmade polystyrene containers were filled with a 5% NaCl saline solution (see Fig. 6).
In each series, one beam was used as a reference and maintained under normal environmental conditions (Beam Nos. 2 and 4). Three levels of corrosion were employed: low level, mild level, and severe level (7%, 14% and 20% steel mass loss, respectively). All specimens were subjected to a 1000kN electromechanical jack, as shown in Fig. 7. Specifically, strands located in areas of the beam where corrosion was advanced (approximately 700 mm) were cut, removed from the specimen, and cleaned. Finally, it was weighed and compared to the noncorroded specimen to find the mass loss (Rinaldi et al., 2010).
5.2 Description of the Finite Element Model and Analytical Results

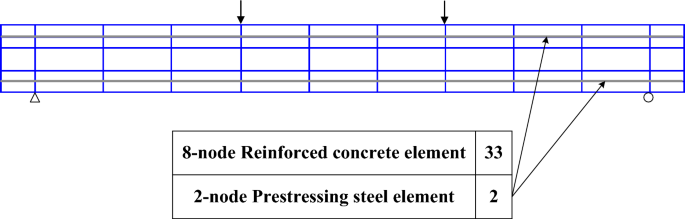

Figure 8 represents the boundary conditions and finite element discretization of the specimen. The finite element model comprises an eightnode RC plane stress element and a twonode prestressing steel element. By assuming a uniform corrosion model for the prestressing steel and a penetration depth, the crosssectional area of the corroded steel can be calculated.
Figures 9a and 10a show the load–displacement curve at the midspan of the undamaged beam. The developed nonlinear model successfully predicts the load–displacement relation of a nondamaged beam. Figures 9 and 10 also show the analytical and experimental load–displacement relationships of damaged beams exhibiting flexural failure with rupture of the prestressing steels.
The predicted results for the beam specimens showed that the ratios of experimental to numerical ultimate strength averaged 0.98 and the CV was 4% (see Table 2).
5.3 Design Parameter Studies
The load–displacement curves for Series 2 are presented in Fig. 11. The peak load sharply decreases from Beam No. 2 to Beam No. 3 and No. 1. In Beams No. 3 and No. 1, the gradual breaking of the wires is characteristic of postpeak behavior. Both the numerical and experimental results indicate that mild and severe levels of corrosion result in shear strength losses of approximately 55% and 65%, respectively.
The load–displacement relation for Series 3 is shown in Fig. 12. Baseline Beam No. 4 fails under a load of 210.0 kN. This value is higher than that of Beam No. 2, owing to its higher concrete strength. Beam No. 6 fails under a load of 200.0 kN with minor corrosion. For modest corrosion loss, Beam No. 5 has an ultimate strength of 70.0 kN (a 66.0% reduction). The analytical results are 207.9, 198.1 and 70.6 kN, respectively. Severe corrosion loads greatly reduce the ultimate strength of the corroded PSC beam. Owing to the limited level of corrosion, Beam No. 6 exhibits a unique behavior, the test results indicating that brittle failure occurs because of concrete and wire breakages. The ductility is questionable as the load–displacement curve flattens, and the pretensioning reinforcement partly breaks and plasticizes.
The sample of crack mode at failure is characterized by nearvertical cracks with branches (see Fig. 13a, b). Figure 13c also shows the trend of the modified damage index, which indicates a gradual progression of damage.
Failure modes for PSC beams are different. For example, the failure modes of Beam No. 6 are similar to those of Beams No. 2 and No. 4, their failure being due to the concrete crushing in the extreme compression fibers rather than via wire breakages. While the corrosion levels are severe, the failure of Beam Nos. 3, 1 and 5 is initiated by wire rupture at the position of maximum corrosion loss, accompanied by a decrease in the loadcarrying capacity. In other words, the failure mode of PSC beams changes from concrete crushing to corrosion wire rupture as the corrosion level increases.
The ultimate behavior of beams with severe corrosion due to wire rupture was found to be equivalent to conventional reinforcement with only one wire. This result is consistent with experimental results showing that among strands removed from beams with 20% corrosion, only the inner strands were not damaged and very often the outer strands were damaged.
The agreement between the analytical and experimental results verifies the developed method and its ability to encapsulate the corrosion degradation mechanisms. Moreover, the structural performance level of deteriorated PSC beams can be accurately predicted using the proposed analytical assessment procedure, thereby enabling a more reliable and rational PSC beams design process.
6 Conclusions
A numerical study was performed to quantify structural performance of deteriorated PSC beams with modified damage indices. The following conclusions were drawn from the results of the numerical study:

(1)
A prestressing steel element and 2D RC plane stress element for the nonlinear analysis of concrete structures exposed to corrosion were presented. The proposed formulation permits modeling the damage effects of uniform and pitting corrosion in terms of a reduction in the crosssectional area of corroded steel, reduction of ductility of steel, deterioration of concrete strength and spalling of concrete cover.

(2)
The developed analytical method and detailed investigation results of deteriorated PSC beams can improve our understanding of the deterioration effects. The finite element model also gives a tool that could be used to develop a better understanding of the damage propagation mechanisms caused by deterioration.

(3)
The corrosion of prestressing steels greatly affects the behavior of simply supported PSC beams in terms of both failure modes and loadbearing capacity. The effects of prestressing steel corrosion on the load–displacement behavior and failure modes also depend on the corrosion levels.

(4)
The modified damage indices provide a quantitative prediction of the shear strength of deteriorated PSC beams, which could assist in establishing of costeffective repair and rehabilitation system. The proposed analytical procedure could be used to assess the actual structural performance of the deteriorated PSC structures.

(5)
Additional parametric studies are needed to confirm the design under practical conditions for use in the field. Further developments are needed to incorporate the bondslip of prestressing steel and reinforcing steel, including the stirrups corrosion and deterioration of bond strength.
