Potential Use of Calcined Silt of Dam as a Pozzolan in Blended Portland Cement

Abstract

This paper presents results of an experimental study which investigates the effect of industrial pozzolan made from calcined silt of dam at 750 °C for 5 h, on mechanical properties and durability of ordinary mortar, compared to the silica fume. Mortar specimens prepared with 5, 10 and 15 % of calcined silt to substitute cement were evaluated for their compressive and flexural strength, sulfate, acid and penetration of chloride ions resistance. The results were compared with ordinary mortar (without addition) and mortar containing 10 % of silica fume. The results obtained showed that the calcined silt of dam has a high potential to be used as a pozzolanic material, it improves the strength and the durability of mortar and compete the silica fume.

Introduction

A large number of studies (Mehta 1981; Ramezanianpour 1987; Massazza 1993; Kouloumbi et al. 1995; Rodriguez-Camacho 1998; Tagnit-Hamou et al. 2003) have shown that natural pozzolana have been widely used as a substitute for Portland cement in many applications because of their advantageous properties which include cost reduction, reduction in heat evolution, decreased permeability and increased chemical resistance. However, they are often associated with shortcomings such as the need to moist-curing for longer time and a reduction of strength at early ages and up to 28 days.

The use of calcined clay as a pozzolanic material for mortar and concrete has received considerable attention in recent years (Ambroise et al. 1992; Sabir et al. 2001; Al Rawas et al. 2001; Shvarzman et al. 2002). This interest is part of the widely spread attention directed towards the utilization of wastes and industrial byproducts in order to minimize Portland cement consumption, whose the manufacture whether harmful to the environment (Nkinamubanzi and Aitcin 2000).

Another reason is that mortar and concrete, which contain pozzolanic materials exhibit considerable enhancement in durability properties (Kostuch et al. 1993; Bager et al. 2001).

It has been reported that the concrete incorporating 10 % of metakaolin (MK) had a higher compressive strength than the control Portland cement concrete at all ages up to 180 days (Sabir et al. 1996; Zhang and Malhotra 1995).

Siltation of dams can have the most dramatic erosion consequences; it takes a sufficient extent in Algeria. The spill is an effective way to fight, nevertheless, it creates another problem which is; “where we put the evacuated silt?”, without causing an ecologic problem!. This problem is always aroused the interest of researchers in the field of water resources. The purpose of this study is focused to this issue in recovery view, which makes it possible to valorize this silt by use in the field of civil engineering.

Experimental Investigation

Materials

The mortar mixtures investigated in this study were prepared with Portland cement (PC) CEMI.42.5R. Natural sand having a fineness modulus of 1.5 with 2 mm maximum aggregate size was used. The specific gravity and water absorption values were obtained as 2.62 and 0.8 % respectively.

Two additions were used in this work:

• Calcined silt (CS): silt used in this study was taken from stockpiles of dredged material (Dam of CHOURFA in the North–West Algeria). It was calcined at a temperature of 750 °C for 5 h. The calcined silt (CS) are crushed and then further pulverized in a ball mill until the particles could pass through an 80 μm.

• Silica fume (SF) named MEDAPLAST HP from the Granitex Company (Algeria), containing 94 % SiO₂, it is a pozzolanic addition with gray color, used in the formulation of high performance concrete (HPC).

Chemical composition and specific gravity of the PC, CS and SF are given in Table 1.

Table 1 Chemical composition (% in mass) and specific gravity of starting materials.

Preparation of Metakaolin

We prepared metakaolins in the following steps (Fig. 1):

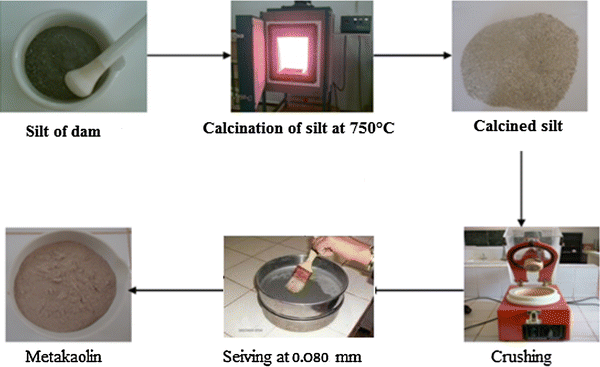

Fig. 1

Preparation of metakaolin (calcined silt).

After drying in an oven at 105 °C, the clay (silt of dam) was crushed and sieved. The calcination temperature is about 750 °C for 5 h (Aquino et al. 2001; Guneyisi et al. 2008; Safi et al. 2011, 2012), Generally, an optimum for kaolin clay calcinations recognized in literature is between 600 and 900 °C (Ambroise et al. 1986; Sayanam et al. 1989). The product obtained (calcined silt) was kept away from air and humidity. Particles passing 80 μm are recovered for later use in the preparation of mortars.

Figure 2, shows the granulometric distribution of materials established by a Laser-granulometer of Malvern instrument—MASTERSIZER 2000.

Fig. 2

Particle size distribution of additions used.

The size analysis of the all additions using a Laser grain size indicates that the fraction of grains lower than 80 μm is 80 %.

Mixture Proportions

The different mortars were elaborated by using normal mortars, according to the norm NFP 15-403 (NF P 1996), of comparison. The water–binder ratio used is to keep constant (W/B = 0.5) and the sand-cement ratio is also to keep constant (S/C = 3). The normal mortar describes previously is produced using a mixer HOBART, in a tank of five liters spreading with the characteristics of standard NFP 15-411 (NF P 1996). The calcined silt was introduced by substitution of a variable percentage of cement such as: 5, 10 and 15 % and that, to better see their influence on the mechanical and physical properties as well as behavior of these mortars with the chemical attacks. The different compositions of mortars studied and their notations are presented in Table 2.

Table 2 Mix proportions of the mortars (kg/m³).

Casting, Curing and Testing Specimens

All the mortar were mixed and prepared using a mortar mixer with a vertical axis and a capacity of 5 l. The Curing and Testing of different specimens used in this study are summarized in the following organization chart (Fig. 3). From each mortar mixture, five (5) prismatic molds of (4 × 4 × 16) cm³ and six (6) cubic samples of (10 × 10 × 10) cm³ are prepared, in totality seventy five (75) samples of (4 × 4 × 16) cm³ and thirty (30) samples of (10 × 10 × 10) cm³ are elaborated. One part of the samples (4 × 4 × 16) cm³ were conserved in the water for the flexural and compressive strength tests at 7, 28 and 60 days, other part of this samples were conserved 28 days in water they were then conserved in two medium H₂SO₄ and Na₂SO₄ for the durability tests. The samples (10 × 10 × 10) cm³ were conserved 28 days in water saturated with lime, after that they were conserved in NaCl medium for the determination of penetration chloride ions at 28 and 60 days.

Fig. 3

Testing program.

Results and Discussions

Pozzolanic Reactivity of Additions Used

The study of the pozzolanic reactivity of the additions used was inspired by the test Chapelle (Chinje and Billong 2004; Bénoît 1969), which is to determine the difference between the initial and final concentration of lime solution and allowing determining the rate of CaO fixed by the additions. The results of the pozzolanic reactivity of all additions are shown in Table 3 and Fig. 4. The pozzolanic reactivity is indicated by the amount of CaO fixed by calcined clays and additions. All results of the samples show a decrease of the concentration of CaO in the lime solution. This decrease is more advanced in the case of silica fume is of the order of 95 %. The silica fume is a material known by its reactivity with pozzolanic its contains more than 98 % of amorphous silica that will react with the portlandite Ca(OH)₂ released during the hydration of cement.

Table 3 Amount of lime fixed by the additions.

Fig. 4

Pozzolanic reactivity of the additions.

Metakaolin obtained from calcined silt (CS), has a pozzolanic reactivity relatively high (75 %) which has the value closest to that of silica fume.

The calcinations of silt at 750 °C allows the departure of the water content (the dehydroxylation) and the formation of metakaolin (Samet et al. 2007; Michel 1989) with an amorphous structure which makes it more reactive than the starting clay. It is an acid–base reaction, which explains the strong decrease in CaO concentration of the solution. The heat treatment causes the transition of the crystalline phase ordered (kaolinite) to a disordered phase (metakaolinite) by a collapse of the crystal lattice. Metakaolinite is considered a good synthetic pozzolans, through its particular reaction with lime in the presence of water to form compounds of the silicate and aluminate calcium hydrates (Wild and Khatib 1997; Frias et al. 2000; Poon et al. 2001).

Mechanical Strength

Compressive and flexural strength are determined according to standard NF-P-15-401 (NFP 1996) and NF-P-15-400 (NFP 1996), respectively. The results of the evolution of mechanical strength test specimens of mortars, kept in water for 14, 28 and 60 days are shown in Figs. 5 and 6. The compressive strength gain at 28 days for different compositions with additions of calcined silt (CS) compared to the reference mortar is shown in Fig. 7.

Fig. 5

Flexural strength of mortars at different ages.

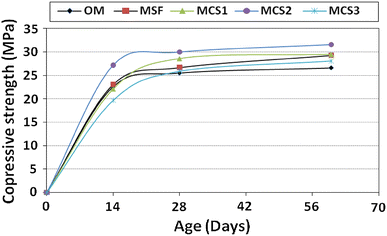

Fig. 6

Compressive strength of mortars at different ages.

Fig. 7

Compressive strength gain of at 28 days compared to the ordinary mortar.

For all the mortar compositions, we noted a continuous increase in the compressive and flexural strength according to the age 14, 28, and 60 days. This phenomenon is due to hydration of cement which causing changes in the compactness over time, because the hydration of cement constituents C₃S and C₂S lead to the formation of CSH which increased the strength (Chinje and Billong 2004; Baronio and Binda 1997). An improvement for about 18 % of the compressive strength at 28 days is identified relative to the reference mortar for the addition of 10 % of calcined silt, despite the partial replacement of a cement part, responsible of the much strength of the mortar as it has been demonstrated in several studies (Janotka 1999; Said-Mansour et al. 2005; Rossignolo and Agnesini 2004). The strength augmentation is mainly due to the pozzolanic property of the silt of dam that acquires a certain pozzolanic activity after the calcinations at a temperature of 750 °C where some clay minerals such as Kaolin, which processed that lead to disordered phase (Metakaolin). This phase has an amorphous structure or partially amorphous in the presence of Ca(OH)₂ and water give birth to new formations (CSH, CAH), with similar properties to those formed based on mineral cement. At 28 days, all mortars with additions of calcined silt or silica fume, show evidence of pozzolanic activity (Table 4) more than 100 %, this confirms the strong pozzolanicity of these additions while the ASTM C 618 (ASTM C 618 2000) standard requires a minimum pozzolanic activity index of 75 % at 28 days with Portland cement artificial (Butler 1982).

Table 4 Strength activity index during 28 days.

Durability of Mortars

Sulfuric Acid Effect

To characterize the chemical resistance in acidic medium, mortars were cast into prismatic molds (4 × 4 × 16) cm³. 24 h later, samples were removed from the molds and kept in cleansed water. After 28 days of treatment, the samples are immersed in a solution of 5 % of a strong acid sulfuric (H₂SO₄): the change in weight of specimens was examined after 7, 14, 21 and 28 days. The chemical solution is renewed every 7 days. In the examination day, affected parts of mortar are cleanse with water, and the samples were dried for half an hour (ASTM C 267-96 2001), and finally chemical resistant were assessed by measuring the mass loss of the specimen.

Table 5 represent the evolution of the weight loss depending on time of various mortars conserved in the strong acid solution (H₂SO₄).

Table 5 Evolution of the weight loss of mortars conserved in H₂SO₄.

Figure 8 shows the change in aspect of the various mortars (OM, MSF, MCS1, MCS2 and MCS3) after 28 days of immersion in a solution of 5 % of strong acid (H₂SO₄).

Fig. 8

State of specimens after immersion for 28 days in 5 % of H₂SO₄.

The weight loss of mortars increases with the immersion period. Also note that the weight loss of the mortar with additions is significantly lower than the ordinary mortar, and it reduces especially with 5 and 10 % of calcined silt and silica fume. Silica fume mortar showed 42.76 % weight loss compared to 29.21 and 38.47 % for mortar with 5 and 10 % of calcined silt, respectively. This is can certainly be related to the presence of high lime content in calcined silt (17 %) compared to the low content lime (1 %) in silica fume, the lime contribute to conserve the basic PH of specimens witch improve their durability in acid medium, consequently the weight loss is limited.

Sulfuric acid (H₂SO₄) is an inorganic acid. These are more harmful to concretes and mortars than the organic acids. Inorganic acids come into reaction with Ca(OH)₂ contained in the hardened cement paste formed compounds readily soluble in water.

It is useful to note that after 7 days of conserving in the solution of sulfuric acid, we have recorded a loss in mass.

This loss is due to deposit gypsum, which is formed following to the reaction between the portlandite [Ca(OH)₂] and sulfuric acid by chemical reaction:

$$\text{Ca}{\left(\text{OH}\right)}_2{\text{+ H}}_2{\text{SO}}_4\to {\text{CaSO}}_4{\text{+ 2H}}_2\text{O}.$$

The gypsum formed is then washed, which gives us a whitish solution, at the age of 14 and 28 days, for all types of mortars the weight loss increases but with different speeds. It is also noted that the mass loss is less important for mortars with additions to the reference mortar; which confirms the good behavior of these mortars in sulfuric attacks (Zivika and Bajz 2002; Ghrici et al. 2007).

Sulfatic Solution Effect

To assess the durability of mortars in the sulfates attacks, we have determined the compressive strength according to the duration of exposure to sulfates.

To characterize the chemical resistance in sulfatic solution, mortars were cast into prismatic molds (4 × 4 × 16) cm³. 24 h later, samples were removed from the molds and kept in clean water. After 28 days of treatment, the samples are immersed in a solution of 5 % Na₂SO₄. The change in weight of specimens was examined after 7, 14, 21 and 28 days. The chemical solution is renewed every 7 days. In the examination day, affected parts of mortar are cleansed with water, and the samples were dried for half an hour.

Figures 9 and 10, presents the variation of flexural and compressive strength of the different types of mortar based on the duration of immersion in sulfate solution, after 28 and 60 days. Table 6 shows the gain or loss in compressive strength compared to the reference mortar for 60 days of immersion in solution of Na₂SO₄.

Fig. 9

Flexural strength of mortars at different ages kept in Na₂SO₄.

Fig. 10

Compressive strength of mortars at different ages kept in Na₂SO₄.

Table 6 Gain or loss of compressive strength.

Figure 11, shows the state of various mortars immersed in sulfuric solution Na₂SO₄ after 60 days.

Fig. 11

State of the samples after 60 days of immersion in Na₂SO₄.

In the purpose of a comparative analysis of the mechanical properties of various mortars in the sulfate attack, we determined the rate of change of compressive strength at the age of 60 days. The rate of change in resistance (τ) is given in % by the following formula:

$$\mathit{\tau }=\left(R_{cs}-R_{cw}\right)/R_{cw}\left(\%\right),$$

where R _cw is the compressive strength of mortar conserved in water; R _cs is the compressive strength of mortar conserved in sulfatic medium.

The results obtained showed a gain of strength for all mortars except the mortar with 15 % of calcined silt (Fig. 12). We observe an increase of the strength that appears to be due to the reaction of Na₂SO₄ with Ca(OH)₂ to form gypsum according to the following reaction (Fig. 13):

$$\text{Ca}{\left(\text{OH}\right)}_2+{\text{Na}}_2{\text{SO}}_4+{\text{2H}}_2\text{O}\to {\text{CaSO}}_4·2{\text{H}}_2\text{O}+2\text{NaOH}.$$

Fig. 12

Gain or loss in compressive strength of mortars with additions compared to OM after immersion in Na₂SO₄ during 60 days.

Fig. 13

Rate of compressive strength variation of mortars kept in Na₂SO₄ during 60 days compared to those kept in water.

NaOH: has a high alkalinity which promotes stabilization of CSH, while the gypsum is formed only in the internal spaces of the hydrated cement paste (little or no expansion) which helps to increase the compactness of concrete and mechanical resistance in the Middle Ages therefore the compressive and flexural strength have increased at the age of 28 and 60 days. We should increase the age of specimens’ immersion in the sulfate to see the effect of this latter.

The second reaction is between the gypsum formed and calcium aluminate of cement (C₃A), forming ettringite: C₃A CaSO₄.32H₂O by the following reaction:

$${\text{C}}_3\text{A}+3{\text{CaSO}}_4·2{\text{H}}_2\text{O}+26{\text{H}}_2\text{O}\to {\text{C}}_3\text{A}·3{\text{CaSO}}_4·32{\text{H}}_2\text{O}.$$

The ettringite is an expansive element which creates a physical and mechanical damage (changes in transport properties and porosity, cracks, loss of strength and cohesion). This leads to the ruin of the cementitious material, more or less long-term function of the attack (nature, content and concentration of sulfates in contact).

Chloride Ions Penetration Effect

The resistance to chloride ions penetration in the mortar and the concrete is one of the most important questions concerning the durability of the concrete structures. When the chloride concentration exceeds a certain threshold, a depassivation of steel occurs and there is a beginning of corrosion for reinforced steel (Thomas 1996; Alonso et al. 2000). Consequently, the development of protection materials with a resistance to chloride ions penetration is required for the concrete structures. For the tests we used cubic specimens (10 × 10 × 10) cm³. The mortars were made in accordance with the standard NFP 15-403 NF P (1996). Then the specimens are introduced into a concentrated NaCl solution with 5 %. To evaluate the durability of the mortars from the chloride ions penetration, we followed the penetration depth evolution of the ions chlorides to 28 and 60 days. The solutions were changed every 7 days until the age of 28 days and every 28 days until the age of 60 days. Each test specimen is divided into two parts and then solution of silver nitrate AgNO₃ was poured on each section according to the standard UNI 79287 (UNI 79287 1978). A whitish color appeared on the specimen surface, using a caliper measuring the chloride-ions penetration depth; the results are shown in Fig. 14. The test method followed in the present investigation to determine the chloride-ions penetration depth is reliable and accurate, and has also been recommended by other researchers (Erhan and Kasım 2007; Wee et al. 2000; Otsuki et al. 1992; Wee et al. 1999; Meck and Sirivivatnanon 2003).

Fig. 14

Chloride-ions penetration depth.

The chloride-ions penetration depth of mortars, increase with the immersion period. Also note that the chloride-ions penetration depth of the mortar with additions is significantly lower than the ordinary mortar, and it reduces especially with 10 % of calcined silt and silica fume. This is can certainly be related to the high pozzolanic reactivity of calcined silt and silicafume, can promote pozzolanic reaction of particles of this addition with the calcium hydroxide Ca(OH)₂ released from cement hydration leading to pore size and grain size refinement processes which can strengthen the microstructure and reduce microcracking. This is explained also by the great finesse of these additions, these additions fill the pores and capillaries, increasing the compactness of the mortar which hinders the penetration of chloride ions.

Conclusion

The use of metakaolin in cement has gained significant importance because of the requirements of environmental protection and sustainable construction in the future.

Depending on the results of the tests carried out on different mortars mixes, and based on the analysis, discussions, and comparisons with corresponding theoretical predictions, the following conclusions can be drawn:

• Metakaolin obtained from calcined silt (CS), has a pozzolanic reactivity relatively high (75 %) which has the value closest to that of silica fume.

• The study of mechanical performance showed retention of mechanical strength of mortars based on calcined silt and under certain conditions an improvement. The largest gain was obtained for a substitution rate of 10 % of cement with calcined silt; an improvement of about 18 % of the compressive strength at 28 days compared to the ordinary mortar is obtained.

• The substitution of cement by calcined silt has a beneficial effect on the durability, because this addition contributes to the densification of the hardened cement paste, by consumption of portlandite and forming CSH and CAH, also the presence of high lime content in calcined silt (17 %) have contributed to conserve the basic PH of mortars which improve their durability, consequently the weight loss is limited.

• An increase of the strength of all mortars exposed to sulfatic attack appears, due to the reaction of Na2SO4 with Ca(OH)₂ to form gypsum, that complete the micro pores leading to a denser structure, which increases the compactness and this positively affects the mechanical strength at 28 and 60 days. It should increase the age of specimens’ immersion in the sulfate to see the effect of this latter.

• The addition of calcined silt reduces the penetration of chloride ions in mortars.

• The composition which substituted 15 % of cement is not appeared the good performance; compressive, flexural strength and durability but it has a similar performance, what is beneficial economic viewpoint, since it was replaced a large quantity of cement having a high manufacturing cost.

Finally, we can say that this experimental work opens the way for the use of silt of dam as metakaolin in the cement industry and to improve the physico-mechanical properties and the durability of cementitious materials.
