Evaluation of Pozzolanic Activity for Effective Utilization of Dredged Sea Soil
© The Author(s) 2017
Received: 2 February 2017
Accepted: 5 September 2017
Published: 7 December 2017
In this work, pozzolanic activities of dredged sea soil from two different sources (South Harbor at Busan and Jangsaengpo Harbor at Ulsan) in Republic of Korea were investigated. Dredged sea soil used for this work has passed through a patented purification process, and particle size distribution, X-ray fluorescence, X-ray diffraction, and thermogravimetry/differential thermal analysis (TG/DTA) were utilized to understand its chemical and mineralogical characteristics. Temperature for heat treatment of dredged sea soil were determined using data obtained from TG/DTA, and pozzolanic activities of dredged sea soil samples were investigated by tracking the amount of calcium hydroxide spent for pozzolanic reaction as well as by monitoring the enhancement on 28 day compressive strength. According to the results, dredged sea soil samples from Jangsaengpo Harbor, which contains some amount of silt sized minerals, showed clear pozzolanic activity after heat treatment at 500 °C. However, dredged sea soil samples from South Harbor did not exhibit strong pozzolanic reaction due to its larger particle size. At least, it was found that dredged sea soil samples have possibility to be used as a pozzolanic material after proper heat treatment if the size distribution of the particle contains certain amount of silt.
The amount of dredged sea soil has been increasing due to the increase in maintenance and construction projects of harbors. The dredging project is a continuous work in nature due to importance of proper water depth maintenance for ships to safely move and anchor at harbors. However, the dredging project produces a large amount of dredged sea soil as a form of environmental waste. It is known that dredged sea soil includes a variety of contaminants, organic substances and heavy metals such as cadmium, arsenic, lead, etc. (Bae and Yoon 2011; Kim 2012). It was reported that only about 10% of dredged sea soil has been recycled due to the presence of organic matters and hazardous chemicals. Also, most of such wastes, approximately up to 90%, had been dumped into the coastal and offshore area (Kim et al. 2014).
Recently, disposal of dredged sea soil in such a traditional manner has become impossible due to the enforced environmental regulations, also in addition to the agreement by “London Convention on the Prevention of Marine Pollution by Dumping Wastes and Other Matters (adopted in 1996)”. For this reason, currently in Republic of Korea, dredged sea soil that was produced during various dredging works was simply sent to a storage site and buried. However, it was found that dredged sea soil has caused environmental problems at disposal site during storage period, such as bad odor and contamination of surrounding environment. Mostly these are related to contamination by organics matters and hazardous chemicals in dredged sea soil. Therefore, a strong drive was placed on dredging companies to develop a purification process to remove all organic matters as well as hazardous chemicals before storing it to the disposal site.
The purification process, developed by Sindaeyang Co. Ltd., was found to remove most of the organic matters, hazardous chemicals, and chlorides (Choi et al. 2014; Sindaeyang Co. Ltd 2014). Dredged sea soil, which was processed through such purification system, has various possibilities for recycling it as a construction material. Larger size dredged sea soil (often referred to as dredged sea sand) can be recycled as fine aggregates or be used for land reclamation (Tsuchida and Kang 2003; Watabe et al. 2004). Whereas, finer size dredged sea soil (particle sizes similar to those of silt or clay) is difficult to be used for such purposes because finer dredged sea soil can cause higher water demand in case of using it as a source of aggregate, and can cause ground subsidence if used for land reclamation (Gong et al. 2009). There is one way to effectively utilize finer dredged sea soil, which is to use it as a pozzolanic material with certain amount of heat treatment.
Various studies are being conducted for the recycling of dredged soil. As representative example clay bricks were produced using dredged soil by high temperature heat treatment above 1100 °C (Im et al. 2013). Wang et al. (2009) studied the possibility of utilizing silt-sized dredged soil obtained from reservoirs as lightweight aggregate by making it in the form of pellets. However, these studies did not mention about purification process of the dredged sea soil, and thus might cause potential environmental issue with the leakage of hazardous chemicals from dredged sea soil. In addition, these works (Im et al. 2013; Wang 2009) uses high temperature process that is not economical and environmentally friendly. It was noted that Samara et al. (2009) have utilized purification process and their purified dredged soil obtained from the industrial complex was used for partial replacement (up to 15%) of fine aggregate in cement brick. It is understood that most of the work related to the dredged sea soil focused on utilizing it as a source of fine aggregate. There was almost no literature that extensively studied the application of dredged sea soil as a pozzolanic material.
In this research, the pozzolanic activity of dredged sea soil was investigated in order to utilize it as a partial replacement material for cement. Utilizing dredged sea soil as a pozzolanic material is a possible approach because dredged sea soil may exhibit the structure that is similar to clay minerals, and thus proper heat treatment of dredged sea soil can develop pozzolanic activity. The properties of pretreated (purified) dredged sea soil will be first investigated, proper temperature range for heat treatment will be determined, and the pozzolanic activity of heat-treated dredged sea soil was evaluated using X-ray diffraction (XRD) and differential thermal analysis (DTA)/thermogravimetric analysis (TGA). Using dredged sea soil as a pozzolanic material can contribute to the environment issue by (1) reducing the amount of environmental waste and (2) reducing the use of cement that is responsible for the global warming.
2 Experimental Procedures
In this study, pozzolanic activities of dredged sea soil samples collected from South Harbor at Busan (SH) and Jangsaengpo Harbor at Ulsan (JH), both in Republic of Korea, were investigated. The dredged sea soil samples used in this work have passed through purification system patented by Sindaeyang Co. Ltd. (Choi et al. 2014; Sindaeyang Co. Ltd. 2014) because dredged sea soil without purification process cannot be used because of the secondary environmental pollution caused by heavy metals and organic substances. Details of the purification process can be found in earlier literatures (Choi et al. 2014; Sindaeyang Co. Ltd. 2014).
Chemical composition of portland cement.
2.2 Heat Treatment of Dredged Sea Soil

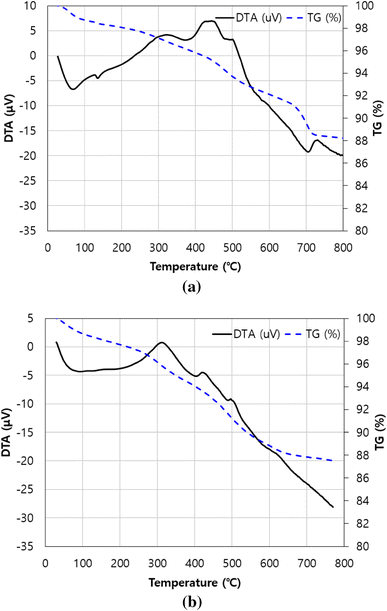

Thermogravimetric analysis/differential thermal analysis (TG/DTA) was performed using Bruker ASX TG–DTA 2020 model (Germany) to select proper temperature for heat treatment of dredged sea soil samples. Since the inflection points at DTA curve, as well as the weight loss associated with this thermal event, can be an indicative of dehydration in clay structure that can possibly bring pozzolanic activity from dredged sea soil, those points were selected as temperatures for heat treatment of dredged sea soil. Heat treatment of dredged sea soil was performed using SH-SK-MF MoSi2 box furnace (Samheung energy, Republic of Korea). Mineralogical analysis and crystal structure changes of dredged sea soil before and after heat treatment at specific temperatures were analyzed using Ultima IV X-ray diffractometer (Rigaku, Japan).
2.3 Pozzolanic Activity
Pozzolanic materials do not directly react with water. With the presence of calcium hydroxide, or with other alkali hydroxides, it reacts to form silicate or aluminosilicate structure (Le et al. 2014). Pozzolanic activity can be assessed by determining the amount of calcium hydroxide consumed by the pozzolanic reaction. However, in atmospheric condition, calcium hydroxide can also be consumed by carbonation process. To eliminate such problem, degassed nano-pure deionized (18.30 MΩ cm) water was used, and mixing and curing process were carried out in a glove box filled with N2 gas. For comparison of pozzolanic activity of heat treated dredged sea soil, metakaolin, a very well-known pozzolanic clay mineral, was used (Dinakar et al. 2013). Water to binder ratio was set at 0.5, and replacement ratio of heat treated dredged sea soil (or metakaolin) to cement was 10 wt%. The blended cement paste sample was poured into a 10 by 20 mm cylinder mold. After curing for 1 day in a glove box filled with N2, it was demolded and further cured in a lime saturated solution for 27 days, in a glove box filled with N2 gas. XRD analyses were performed to understand the mineralogical compositions of 28 day old cement paste samples with heat treated dredged sea soil.
Evaluating pozzolanic activity by electrical conductivity measurement (Luxán et al. 1989).
Variation in conductivity
Less than 0.4
Between 0.4 and 1.2
Greater than 1.2
In order to verify the results obtained from electrical conductivity measurement, TG/DTA analyses of 28 day old cement paste specimens were also performed to measure the amount of calcium hydroxide present in cement paste samples. Using the amount of calcium hydroxide present in each specimen, the pozzolanic activity of heat treated dredged sea soil was quantitatively evaluated.
2.4 Compressive Strength
The 28 day compressive strengths of mortar specimens were measured in order to verify beneficial effect on mechanical property by the pozzolanic reaction. Fine aggregate used for this experiment is standard sand that conforms to ISO-679. Water to binder ratio (w/b) was 0.5, and cement to fine aggregate ratio was 1:3, as specified in ISO-679. The amount of dredged sea soil in the mortar was 10% by weight of the cement. Metakaolin was also used as a reference pozzolanic material for dredged sea soil. The substitution rate of metakaolin was also 10% by the weight of cement.
The compressive strength was measured according to ASTM C 109 “Standard test method for compressive strength of hydraulic cement mortars (using 2-in or [50-mm] cube specimens)”. As soon as mortar was mixed, it was poured into 50 mm × 50 mm cube mold and stored in the 25 °C laboratory for a day. Specimens were demolded after a day, and placed in 25 °C lime saturated solution for addition 27 days, to ensure total of 28 day curing period. The compressive strength was measured at 28 days.
3.1 Basic Properties of Dredged Sea Soil
3.1.1 Chemical Compositions
Chemical composition of dredged sea soil and metakaolin.
Chemical analysis (wt%)
Loss on ignition (%)
3.1.2 Particle Size

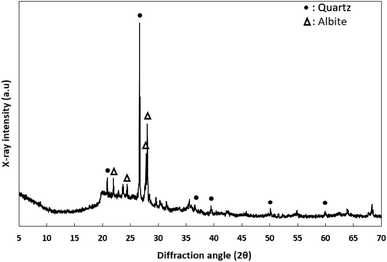

3.1.3 Mineral Composition
3.1.4 Heat Treatment
3.2 Pozzolanic Activity
3.2.2 Electrical Conductivity

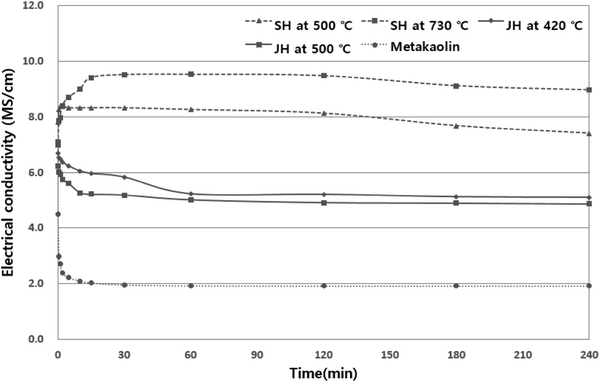

The difference between the initial value and the electric conductivity after 2 min of metakaolin and heat treated dredged sea soil.
Variation in electronic conductivity
SH at 500 °C
SH at 730 °C
JH at 420 °C
JH at 500 °C
According to Fig. 7, the electrical conductivities of both SH samples (at 500 and 730 °C) increased. This behavior seems to be associated with the presence of soluble salts that resides in the dredged sea soil. In addition, the conversion from calcite to lime (also note the thermal data in Fig. 4(a)) with SH at 730 °C sample has contributed to the increase in ionic concentration due to the hydration of lime (CaO + H2O → Ca(OH)2). For this reason, the pozzolanic activity of SH samples cannot be identified using electrical conductivity method.
Decomposition amount of calcium hydroxide.
Plain cement paste
Heat treated temperature
SH at 500 °C
SH at 730 °C
JH at 420 °C
JH at 500 °C
Weight before decomposition of CH (%)
Weight after decomposition of CH (%)
Amount of CH decomposition (%)

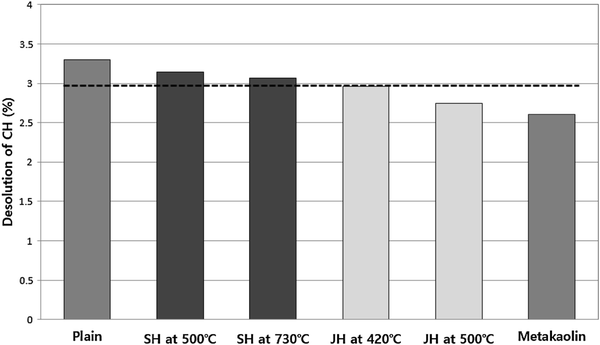

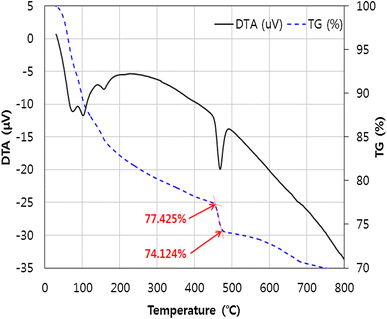

According to Fig. 9 and Table 5, weight loss of cement paste incorporating SH at 500 °C, SH at 730 °C, JH at 420 °C, JH at 500 °C, and metakaolin were 3.144, 3.067, 2.960, 2.727, and 2.605%, respectively. It should be noted that the dashed line in Fig. 9 represents 90% of the amount of calcium hydroxide in the plain specimen (since dredged soil and metakaolin were replaced by 10 wt% of cement), and thus specimens showing lower than these value should have consumed certain amount of calcium hydroxide by pozzolanic reaction. It was found that the weight loss of cement paste incorporating SH at 500 °C and SH at 730 °C were higher than the value of dashed line (2.97%) in Fig. 9, indicating that SH samples might be non pozzolanic by TG/DTA analyses. The weight loss of cement paste incorporating JH at 420 °C (2.96%) was similar to the value of dashed line (2.97%). The cement paste with JH at 500 °C showed 2.747% of weight loss, definitely indicating that JH at 500 °C is a pozzolanic material although reactivity is weaker than metakaolin which showed 2.605% weight loss.
3.3 Compressive Strength
In this work, pozzolanic activities of heat treated dredged sea soils from two different sources, SH (dredged sea soil samples from South Harbor in Busan) and JH (Jangsaengpo Harbor in Ulsan), were investigated. It was found that SH, mostly consisting of very fine sand, did not present pozzolanic activity by TG/DTA analysis. However, the 28 day compressive strength did not show significant decrease with replacement of SH, indicating that SH can still meet other criteria for pozzolanic material, such as strength activity index, etc. Thus, it should be noted SH can be weakly pozzolanic although it was found to be non-pozzolanic by TG/DTA analysis.
JH, which contains some amount of silt particle, was found to show pozzolanic activity by TG/DTA analysis. Analyses of pozzolanic activity using decomposition of calcium hydroxide and compressive strength showed that JH heat treated at 500 °C had clear pozzolanic activity. The weight loss before and after decomposition of calcium hydroxide at about 450 °C and the improvement in compressive strength by pozzolanic reaction was found to present a significant correlation. The same tendency was also observed from metakaolin, as expected and proved by other literatures (Poon et al. 2001; Sabir et al. 2001).
It was found that the pozzolanic activity of JH with 500 °C heat treatment was lower than that of metakaolin. It should be noted that both metakaolin and JH contains some amount of crystalline phases. It is known that the presence of crystalline phase in material is not beneficial in terms of pozzolanic reaction because they are more stable in highly alkaline environment than amorphous phases. The average particle size of the metakaolin was even higher than that of JH. Therefore, the lower pozzolanic activity of JH (with 500 °C heat treatment) than metakaolin can be only explained by the amount of amorphous clay mineral in the material which, in case, can be used for pozzolanic reaction. This means JH, although heat treated, has less amount of metakaolin component than reference metakaolin material used for this work. It should be noted that the 100 μm peak in the particle size distribution curve (Fig. 1) with JH and metakaolin might have been attributed to presence of crystalline minerals.
The incomplete pulverization of JH material might have also contributed to the larger particle size (100 μm peak in Fig. 1) of the JH. It was found that as received JH, which was in a partially wet condition, behaved much like a mud, and was found to solidify when JH was dried. For this reason, the additional process was required in order to make uniform distribution of the particles. A separate grinding was carried out at 1,500 rpm for 3 s using a Retsch RS200 (Germany) disc mill, but it is still not certain that such a short processing time is suitable to crush agglomerated clay materials.
According to the results presented in this work, the pozzolanic activity of dredged sea soil seems to be strongly related to the size of the particle, and it should have finer particle size similar to or smaller than that of silt. Heat treatment is definitely necessary for pozzolanic activity of dredged sea soil, but the amount of amorphous phases that can be a crucial part for pozzolanic reaction can vary depending on different sources of location. There should be an optimum method for dredged sea soil to be used as highly effective pozzolanic materials by controlling the particle size of the dredged sea soil and adjusting the temperature and time for heat treatment. It should be also noted that the amount of chloride must be monitored during purification process in order for heat treated dredged sea soil to be used as a pozzolanic material for reinforced concrete structure. At least, it is believed that heat treated dredged sea soil can be used as a solidifying agent in combination with lime because hydration of lime can provide necessary amount of calcium hydroxide for pozzolanic reaction of heat treated dredged sea soil.
Heat treated dredged sea soil from South Harbor in Busan (SH) did not show pozzolanic activity by TG/DTA analysis. Although there was no significant reduction in compressive strength with 10% replacement of SH, it was found that SH cannot be used as a pozzolanic material.
Heat treated dredged sea soil at 500 °C from Jangsaengpo Harbor in Ulsan (JH) did clearly present pozzolanic activity by TG/DTA analysis. The 28 day compressive strength also increased with 10% replacement of JH.
To present pozzolanic activity of dredged sea soil, smaller particle size is necessary. At least, the material should contain some portion of silt sized particles.
This research was supported by a Grant (13RDRP- B066470) from Regional Development Research Program funded by Ministry of Land, Infrastructure and Transport of Korean Government.
