Tensile Behavior of HighStrength Stainless Steel Wire Rope (HSSSWR)Reinforced ECC
International Journal of Concrete Structures and Materials volume 15, Article number: 43 (2021)
Abstract
Engineered cementitious composites (ECC) show the distinguished characteristics of high postcracking resistance and ductility. Highstrength stainless steel wire rope (HSSSWR) has been successfully used for restoring or strengthening of existing structures. By combining the advantages of these two materials, a new composite system formed by embedding HSSSWR into ECC was proposed and expected to be a promising engineering material for repair or strengthening of structures. To investigate the tensile failure mechanism and mechanical properties of HSSSWRreinforced ECC, an experimental study on 27 HSSSWRreinforced ECC plates was conducted considering the effects of the reinforcement ratio of longitudinal HSSSWRs, formula of ECC and width of the plate. Test results revealed that HSSSWRreinforced ECC exhibit superior postcracking resistance, deformation capacity and crackwidth control capacity. Increasing the reinforcement ratio of longitudinal HSSSWRs can effectively enhance the tensile strength, crackwidth control capacity, deformation capacity and tensile toughness of HSSSWRreinforced ECC. Adding thickener in ECC can significantly improve the crackwidth control capacity and deformation capacity of HSSSWRreinforced ECC due to enhancing uniform distribution of polyvinyl alcohol fibers, but would slightly reduce the cracking stress and maximum tensile stress by bringing small bubbles in the matrix. The tensile properties of HSSSWRreinforced ECC plates are almost not affected by varying the plate width. Besides, a tensile constitutive model was developed for charactering the stress–strain relationship of HSSSWRreinforced ECC in tension. Based on mechanical theories and failure characteristics of HSSSWRreinforced ECC, the model parameters were determined, and calculation equations of cracking stress and tensile strength were proposed. The accuracy of the developed model and calculation equations was verified by test results.
1 Instruction
Engineered cementitious composites (ECC) are developed by using performance driven design approach of short random fibers reinforced cementitious matrix composites, which have distinguished material properties such as remarkably high postcracking resistance, tensile ductility and toughness (Li, 2019; Li & Leung, 1992; Li et al., 1993, 1995, 2004; Zhou et al., 2015). Compared with traditional fiberreinforced concrete, ECC show the more excellent characteristics of pseudostrainhardening behavior and multiple cracking in tension (Li et al., 1995; Naaman & Reinhardt, 2006), and have been successfully applied to civil engineering (Esmaeeli et al., 2013; Fischer & Li, 2002a; Guan et al., 2018; Hung & Chen, 2016; Pan et al., 2020; Qi et al., 2018; Shang et al., 2019; Yuan et al., 2014; Zheng et al., 2016). Many scholars have carried out a lot of investigations on existing members strengthened with ECC (Esmaeeli et al., 2013; Hung & Chen, 2016; Shang et al., 2019; Zheng et al., 2016), which demonstrated that ECC can significantly increase the deformation capacity, energy absorption capacity and crack control capacity when used to strengthen existing masonry or reinforced concrete (RC) structures. However, the strengthening effect of ECC on bearing capacity of existing structural members is limited due to the limited tensile strength of ECC. Therefore, ECC still need to be used together with other highstrength reinforcing materials. Many researches have been conducted on ECC reinforced with steel reinforcements (Fischer & Li, 2002b; Kunieda et al., 2010) and fiberreinforced polymer (FRP) reinforcements (AlGemeel et al., 2019; Hossain, 2018; Hu et al., 2019; Li & Xiong, 2019; Zheng et al., 2016; Zhu et al., 2018).
Fischer and Li (Fischer & Li, 2002b) performed uniaxial tensile tests to investigate the influence of composite ductility on the deformation behavior of the steel reinforced ECC and its effects on the strain distribution in the reinforcement, composite matrix, and interfacial bond. The results revealed the good deformation combination of ECC and steel reinforcement which led to a more uniform strain distribution in reinforcement and ECC and controlled damage at relatively large inelastic deformations. Kunieda et al. (Kunieda et al., 2010) assessed the effect of different steel reinforcement ratios on crack distribution of ultrahigh performancestrain hardening cementitious composites (UHPSHCC) through the tensile tests. It was found that the increase of steel reinforcement ratio could lead to the increase of the number of cracks and the decrease of the averaged crack spacing, and the influence was insignificant when the reinforcement ratio was beyond 0.6%. Zhu et al. (Zhu et al., 2018) conducted an experiment study on the uniaxial tensile behavior of carbon fiberreinforced polymer (CFRP) gridreinforced ECC plates under both monotonic and cyclic loading. Test results indicate that the envelope of cyclic uniaxial tensile stress–strain curves followed the static stress–strain curves no matter which cyclic loading scheme was adopted. AlGemeel et al. (AlGemeel et al., 2019) investigated the tensile performance of ringshape specimens reinforced with basalt fiberreinforced polymer (BFRP) grids and ECC under apparent hoop tensile loading, and found that compared with ECC without BFRP grids and conventional mortar reinforced by BFRP grids, the first crack load, peak load and energy absorption ability of BFRP gridreinforced ECC were improved more notably. Although existing studies (AlGemeel et al., 2019; Fischer & Li, 2002b; Hossain, 2018; Hu et al., 2019; Kunieda et al., 2010; Li & Xiong, 2019; Zheng et al., 2016; Zhu et al., 2018) show that ECC reinforced by steel or FRP reinforcements were feasible reinforcement materials for strengthening or rehabilitation of concrete structures and can effectively improve ductility, anticracking ability and bearing capacity of RC structures, some deficiencies of these strengthening materials remained. Specifically, the ultrahigh deformation capacity of ECC cannot be fully utilized on account of the low tensile strength and early yielding of ordinary steel bars, when using ordinary steel bars to reinforce ECC. In addition, although FRP features the light weight, high tensile strength and good corrosion resistance, the rupture strains of FRP grids were much lower than the ultimate strain of ECC, which would cause the underutilization of ultrahigh deformation capacity of ECC. Moreover, FRP costs relatively more than other conventional reinforcing materials, which would be an impediment to their promotion and application in the common constructions. Therefore, a more appropriate reinforcing material with relatively high strength, low price and ultimate strain close to the ultimate strain of ECC needs to be used for reinforce ECC to provide better reinforcement effect.
Highstrength stainless steel wire rope (HSSSWR) features relatively high tensile strength, good anticorrosion performance and relatively low price (Kim & Kim, 2011). Steel wire ropes or steel wires in combination with epoxy resins, plain mortar or permeable polymer mortar have been successfully applied to restore or increase the capacity of existing masonry or concrete structures (Ghai et al., 2018; Kim & Kim, 2011; Li et al., 2018; Qeshta et al., 2015; Shermi & Dubey, 2017). Nevertheless, previous studies (Ghai et al., 2018; Huang et al., 2011; Kim & Kim, 2011; Shermi & Dubey, 2017) show that the ultimate strength of the steel wire ropes or steel wires cannot be effectively exerted due to the brittle fracture of mortar or permeable polymer mortar before the failure of steel wire ropes or steel wires. Moreover, the disadvantages of epoxy resins have been progressively observed by researchers, including high cost, poor performance on wet surfaces or after ultraviolet radiation, and poor fire resistance, etc. (Qeshta et al., 2016; Raoof et al., 2017). Therefore, HSSSWR needs to be used with a matrix material of good crackcontrol capacity and ductility to give full play to high strength of HSSSWR.
As discussed above, compared with mortar and permeable polymer mortar, ECC exhibit much more excellent ductility and crackcontrol capacity. Besides, the ultimate tensile strain of HSSSWR, which is characterized by high tensile strength, good anticorrosion performance and relatively low price, is about 3%, and is close to the ultimate tensile strain of ECC. Furthermore, good bond performance between HSSSWR and ECC has been revealed by Zhu et al. (Wang et al., 2020; Zhu et al., 2020). Therefore, HSSSWR could be appropriate reinforcing materials for ECC to give full play to the excellent performance of ECC, and ECC would be suitable matrix for HSSSWR to fully exert the high tensile strength of HSSSWR. Combining the advantages of both HSSSWR and ECC, a new composite system, namely HSSSWRreinforced ECC, which is formed by embedding HSSSWR into ECC, was proposed, and the flexural strengthening method with HSSSWRreinforced ECC was verified to result in a more significant increase in deformation capacity, crackwidth control capacity, stiffness, cracking strengths and ultimate strengths of RC beams, compared with strengthening method by using HSSSWR and polymer mortar (Yuan et al., 2020). Accordingly, HSSSWRreinforced ECC is expected to be a promising engineering material for repair or strengthening of structures.
In order to promote the applications of HSSSWRreinforced ECC in strengthening of existing structures which would often make this new composite material subjected to tension, it is of great need to comprehensively understand the tensile properties of HSSSWRreinforced ECC. Furthermore, it is essential to develop a tensile constitutive model of HSSSWRreinforced ECC which would be needed for finite element analysis of the mechanical behavior of existing structures strengthened by HSSSWRreinforced ECC, when HSSSWRreinforced ECC are considered to be a kind of composite material to simplify the calculation. Therefore, in this paper, a total of 27 specimens were designed to investigate the tensile behavior of HSSSWRreinforced ECC plates, considering the effects of reinforcement ratio of longitudinal HSSSWRs, formula of ECC and width of the test specimen. The experimental study aims to (1) evaluate the influences of the parameters mentioned above on the tensile behavior of HSSSWRreinforced ECC; (2) determine the prediction formulas for cracking stress and tensile strength of this composite material, and (3) develop a tensile constitutive model of this composite material and validate the accuracy of this model using the test results.
2 Experimental Program
2.1 Design of Specimens
In this study, a total of 27 specimens were designed to evaluate the effects of variables on tensile behavior of HSSSWRreinforced ECC by using uniaxial tensile tests. The test variables included the reinforcement ratio of HSSSWR, formula of ECC and width of HSSSWRreinforced ECC specimens. The design details of all test specimens are summarized in Table 1. In Table 1, b_{c} is the test section width of HSSSWRreinforced ECC specimens, n is the number of longitudinal HSSSWRs used in the specimen, and d and ρ_{w} represent the spacing and reinforcement ratio of longitudinal HSSSWRs. In the test, there were totally 9 groups of specimens with 3 identical specimens for each group. The tensile plate specimens are designed in the shape of dumbbell. In order to avoid failure caused by stress concentration in the specimen beneath the clamp during the loading process, two ends of each specimen were strengthened by CFRP sheets. The CFRP sheets were bonded to the both surfaces symmetrically of the specimens by epoxy resin. Furthermore, the curved sides of the specimen were applied to ensure a smooth transition to avoid stress concentration. Fig. 1 shows the detailed dimensions of the specimens.
2.2 Material Properties
ECC were manufactured using ordinary Portland cement (PO 42.5), fly ash, silica fume, silica sand, polyvinyl alcohol (PVA) fibers, water, superplasticizer and thickener. The two mix proportions of the specimens in this paper are given in Table 2. When casting the HSSSWRreinforced ECC plate specimens, three ECC cubes of 70.7mm side length and five ECC thin plates (with dimensions of 280 mm × 40 mm × 15 mm) are manufactured for uniaxial compression and tension tests, respectively, to determine the material properties of each kind of ECC used in the test. Table 3 lists the average values of key parameters for ECC material properties including initial crack stress in tension (f_{e,c}_{r}) and its corresponding strain (ε_{e}_{,}_{cr}), the ultimate tensile stress (f_{e,u}) and its ultimate tensile strain (ε_{e,u}), the compressive strength (f_{c}) and its corresponding strain (ε_{c}), and elastic modulus (E_{e}). Fig. 2 shows the tension test setup and the test results (including typical tensile stress–strain curves and crack patterns) of ECC, which indicated the characteristics of pseudo strainhardening and multiple cracking for ECC. The ECC of formula 2 exhibited higher deformation capacity and lower tensile strength, compared with the ECC of formula 1. In addition, tensile tests were performed on three HSSSWR specimens to determine the mechanical properties of the used HSSSWR with a diameter of 2.4 mm. The tested average elastic modulus (E_{s}), ultimate tensile strength (f_{y}) and its corresponding the tensile strain (ε_{u}) of the HSSSWR were 108.3 GPa, 1567 MPa and 0.0303, respectively. The tested typical stress–strain curve and crosssectional form of HSSSWR are shown in Fig. 3.
2.3 Test Setup and Instrumentation
To research the tensile behavior of HSSSWRreinforced ECC plates, a series of uniaxial tension tests were conducted by using a 100kN capacity electronic universal testing machine (Fig. 4). All tests were carried out under displacement control at the rate of 0.2 mm/min. For each specimen, two strain gauges were attached at the middle of the front and back surfaces of the specimen and two LVDTs were installed on both sides of the specimen. Load was measured by a load cell with a range of 100 kN. In addition, the crackwidth of the specimens was measured by a crack detector instrument.
3 Experimental Results and Discussion
3.1 Test Phenomenon and Results
The tensile failure process of HSSSWRreinforced ECC specimens is shown in Fig. 5. When the applied load reached a certain value (23%31% of the peak load), a tiny crack with a width of only 0.02 mm appeared on the surface near the middle of the specimens (Fig. 5(a)). As the load continued to increase, new cracks appeared continuously on the surface of the specimens, but the width of the existing cracks increased slowly. After reaching a certain load (84%96% of the peak load), the number of cracks stopped increasing, which is referred to as the saturation state, as shown in Fig. 5(b), and the surfaces of the specimens were covered with fine cracks almost parallel to each other. At this time, the maximum crack widths of the specimens were between 0.08 mm and 0.28 mm, which are much less than the crackwidth limits in the normal service limit state of 0.3 mm and 0.4 mm required by Chinese design specification of concrete structures (Ministry of Housing and Urban–Rural Development of the People’s Republic of China (MOHURD): Code for Design of Concrete Structures 2015) and ACI 224 (Committee, 2001), respectively. Then as the load increased, the widths of existing cracks grew steadily. When the peak load was reached, a few small cracks connected to form a main crack on the monitored zone of the specimen, accompanied by clear sounds of pulling out or fracture of PVA fibers, and one longitudinal HSSSWR ruptured at the main crack. Then the load fell rapidly, and the other longitudinal HSSSWRs ruptured as the width of the main crack quickly increased, after which the test was stopped. It can be observed that the HSSSWRs in the specimen did not rupture at the same time in the test. This may be because of the small differences between tensile stresses of longitudinal HSSSWRs in the specimen under axial tension due to the different tightness of HSSSWRs which may occur during manufacturing specimens. The maximum crack widths of the specimens at peak load were in the range of 0.5 mm1.13 mm. The typical failure mode of the specimens is shown in Fig. 5(c). Those phenomena indicate that HSSSWRreinforced ECC have good postcracking resistance and crackwidth control capacity due to multiple cracking characteristic of ECC and good bond property of the HSSSWR and ECC.
Table 4 shows average values of test results of cracking stress (f_{se}_{,}_{cr}), cracking strain (ε_{se,cr}), maximum tensile stress (f_{se}_{,}_{u}), the strain corresponding to f_{se,u} (ε_{se,u}), the tensile stress at the beginning of the saturation state(f_{ws}), the strain corresponding to f_{ws} (ε_{ws}), the maximum crackwidthat the beginning of the saturation state(w_{max,ws}), the maximum crackwidthat peak load(w_{max,u}), the elastic modulus before cracking(E_{se}), the peak tensile toughness index (TI_{p}) and the total tensile toughness index (TI_{t}) for each group of specimens.
3.2 Stress–Strain Curves
Fig. 6 describes the tensile stress–strain curves of ECC and HSSSWRreinforced ECC specimens. As shown in Fig. 6, three main stages can be obviously observed in the tensile stress–strain curves of ECC and HSSSWRreinforced ECC specimens, as follows: (1) linear elastic stage; (2) elastic–plastic stage and (3) falling stage. The linear elastic stage is from initial loading to cracking. The cracking load of HSSSWRreinforced ECC specimens is 23%31% of the corresponding peak load, while the cracking load of ECC is 56%62% of the corresponding peak load. This is attributed to the fact that adding HSSSWRs in ECC significantly enhanced the tensile strength. In this stage, both ECC and HSSSWRs are in the elastic state, and the stress increased linearly as the strain grew. The elastic–plastic stage is from the cracking to the peak load. In this stage, the tensile stress increased nonlinearly with an increase in the tensile strain. The small fluctuations of the curve in this stage were caused by initiation and development of the cracks of HSSSWRreinforced ECC specimens. The HSSSWRs and ECC can still carry the load together in the elastic–plastic stage due to the bridging role of PVA fibers after cracking and good bond performance between HSSSWRs and ECC. Since the first HSSSWR ruptured at the peak load, a falling stage can be observed after peak point in the stress–strain curve.
3.3 Cracking Stress and Strain
3.3.1 Effect of HSSSWRs Reinforcement Ratio on Cracking Stress and Strain
It can be seen from Table 4 that the cracking strains of HSSSWRreinforced ECC specimens are between 0.0172% and 0.0202%, which are close to those of the corresponding ECC shown in Table 3, which indicates that adding HSSSWRs in ECC hardly had effect on the cracking strain. Fig. 7 shows the comparison of test results of specimens with different reinforcement ratios of longitudinal HSSSWRs (ρ_{w}). As shown in Fig. 7, the cracking stress (f_{se,cr}) increased slightly with an increase in the reinforcement ratio of HSSSWRs (ρ_{w}). Specifically, as indicated in Table 4, the cracking stresses (f_{se,cr}) of specimens A1 A2, A3 and A4 increased by 1.4%, 2.7%, 10.0% and 16.9% compared with that of ECC of formula 1, respectively, and the cracking stresses of specimens B1 B2, B3 and B4 increased by 2.6%, 3.6%, 7.8% and 14.1% compared with that of ECC of formula 2, respectively. Moreover, the elastic modulus before cracking (E_{se}) of specimens increased with an increase in the reinforcement ratio of HSSSWRs (ρ_{w}). These results show that adding HSSSWRs in ECC can enhance the cracking stresses and elastic modulus of ECC. This is to be expected, because before cracking, the applied load was carried together by ECC and the internal HSSSWRs which were both in elastic stage.
3.3.2 Effect of ECC Formula on Cracking Stress and Strain
As shown in Table 4, under the condition of the same reinforcement ratio (ρ_{w}), the cracking stresses of specimens B1, B2, B3 and B4 decreased by 10.5%, 11.6%, 14.1% and 14.5%, compared with that of the corresponding specimen in group A, respectively, and the elastic modulus before cracking(E_{se}) of the specimen in group B was lower than that of the corresponding specimen of group A. The reason may be that the cracking stress and elastic modulus of ECC of formula 1 are relatively high compared with those of ECC of formula 2.
3.4 Tensile Strength and Its Corresponding Strain
3.4.1 Effect of HSSSWRs Reinforcement Ratio on Tensile Strength and Its Corresponding Strain

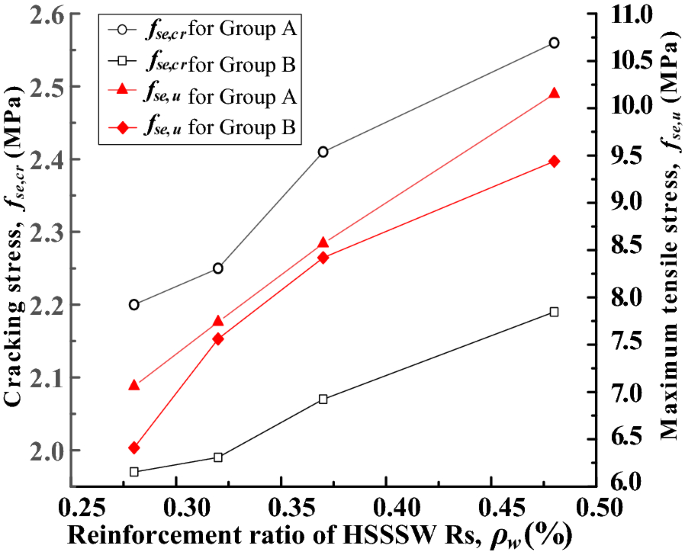

It can be seen from Fig. 7 and Table 4 that the maximum tensile stresses (f_{se,u}) of specimens A1 A2, A3 and A4 increased by 100.0%, 119.3%, 142.8% and 187.5%, respectively, compared with that of ECC of formula 1, and the maximum tensile stresses (f_{se,u}) of specimens B1 B2, B3 and B4 increased by 85.3%, 118.5% 143.4% and 172.8%, respectively, compared with that of ECC of formula 2. This indicates that the tensile strength (maximum tensile stress) of HSSSWRreinforced ECC increased significantly with an increase in the reinforcement ratio of HSSSWRs. The same phenomenon that the tensile strength would be increased by increasing reinforcement ratio was also observed in steel bars reinforced ECC (Kunieda et al., 2010) and CFRP gridreinforced ECC (Zhu et al., 2018). This is to be expected, because the applied peak load was carried by ECC and the internal reinforcing materials together. As shown in Table 4, the strains corresponding to the maximum tensile stresses (ε_{se,u}) of the specimens ranged from 3.087% to 3.418%, which were close to the maximum tensile strain of HSSSWR, and were larger than those of the corresponding ECC shown in Table 3. This indicates the deformation capacity of ECC can be effectively improved by adding HSSSWRs in ECC. The reason for enhancing deformation capacity may be that adding HSSSWRs can delay the development of cracks, which contributes to increasing ultimate deformation.
3.4.2 Effect of ECC Formula on Tensile Strength and Its Corresponding Strain
The maximum stresses of specimens B1, B2, B3 and B4 decreased by 9.2%, 2.3%, 1.8% and 7.0%, compared with that of the corresponding specimen with the same value of ρ_{w} in group A, respectively, which is attributed to the fact that the tensile strength of ECC of formula 2 is relatively low compared with that of ECC of formula 1. The strains corresponding to the maximum stresses of specimens in group B were larger than those of specimens in group A. This demonstrates that adding thickener can improve the deformation capacity of HSSSWRreinforced ECC by enhancing uniform distribution of PVA fibers.
3.5 Tensile Toughness
3.5.1 The Method Used to Evaluate Tensile Toughness
Toughness is an important property for evaluating the energy absorption capacity of a composite material before failure, which can be quantitatively described by the integration of the load–displacement curve of the composite material (Dong et al., 2019). In this paper, the tensile toughness of HSSSWRreinforced ECC (in MJ/m^{3}) was calculated by the integration of the stress–strain curve. The total integral area of the stress–strain curve of the HSSSWRreinforced ECC specimens was defined as the total tensile toughness (TI_{t}), and the integral area of stress–strain curve under peak stress was defined as the peak tensile toughness (TI_{p}). With this method, the total tensile toughness (TI_{t}) and the peak tensile toughness (TI_{p}) for each specimen are calculated and listed in Table 4. The peak tensile toughness and total tensile toughness of ECC with formula 1 calculated using the same method are 0.0890 MJ/m^{3} and 0.1043 MJ/m^{3}, respectively, and the peak tensile toughness index and total tensile toughness index of ECC with formula 2 are 0.0884 MJ/m^{3}and 0.1044 MJ/m^{3},respectively.
3.5.2 Effect of HSSSWRs Reinforcement Ratio on Tensile Toughness
The relationship between tensile toughness and reinforcement ratio of longitudinal HSSSWRs is shown in Fig. 8. As shown in Fig. 8, the peak tensile toughness and total tensile toughness of HSSSWRreinforced ECC specimens increased with an increase in the reinforcement ratio of HSSSWRs, and are much higher than those of ECC. This shows that increasing the reinforcement ratio of longitudinal HSSSWRs can effectively improve the energy absorption capacity of the specimens through delaying the development of cracks and enhancement of bearing capacity.
3.5.3 Effect of ECC Formula on Tensile Toughness
As indicated in Fig. 8, under the condition of the same reinforcement ratio (ρ_{w}), the peak tensile toughness of the specimen of group A was higher than that of the specimen of group B, but the total tensile toughness of group A was lower than that of group B. The reason may be that adding thickener would reduce the cracking stress and the maximum tensile stress of HSSSWRreinforced ECC caused by bringing small bubbles in the matrix of formula 2, which makes the peak tensile toughness of group B less than that of group A. However, adding thickener also can enhance uniform distribution of PVA fibers, which can improve the crackwidth control and deformation capacity of this composite material, so the total tensile toughness of group B was higher than that of group A.
3.6 Analysis of Crack Width
3.6.1 Effect of HSSSWRs Reinforcement Ratio on Crack Width

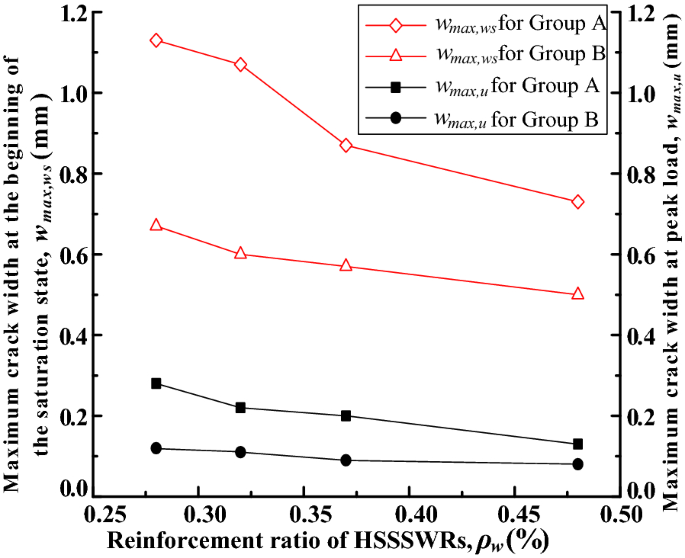

As indicated in Table 4 and Fig. 9, the maximum crackwidth at the beginning of the saturation state(w_{max,ws}) orat peak load (w_{max,u}) decreased with an increase in the reinforcement ratio longitudinal HSSSWRs (ρ_{w}). This demonstrates that increasing the reinforcement ratio contributes to improving crackwidth control capacity of HSSSWRreinforced ECC. The reason may be that the longitudinal HSSSWRs can delay the development of cracks through the good bond performance between HSSSWRs and ECC.
3.6.2 Effect of ECC Formula on Crack Width
It can be seen from Fig. 9 that under the condition of the same reinforcement ratio (ρ_{w}), the maximum crackwidth at the beginning of the saturation state(w_{max,ws}) orat peak load (w_{max,u}) for the specimen with ECC matrix of formula 2 is smaller than that of the specimen with ECC matrix of formula 1. In addition, it can be observed in the test that the specimen with ECC matrix of formula 2 had more cracks and smaller crack spacing compared with the specimen with ECC matrix of formula 1. The above phenomena demonstrate that adding thickener can improve the crackwidth control capacity of HSSSWRreinforced ECC due to enhancing uniform distribution of PVA fibers.
3.7 Effect of Specimen Width on Tensile Properties
A comparison between test results of specimens A3 and A5 (which are of the same test parameters except for specimen widths) in Fig. 6a and Table 4 shows that the tensile stress–strain curve and the test values of material performance indicators (including f_{se,cr}, ε_{se,cr}, f_{se,u}, ε_{se,u} f_{ws}, ε_{ws}, w_{max,ws}, w_{max,u}, E_{se}, TI_{p} and TI_{t}) for these two specimens are close. This demonstrates that changing specimen width has little effect on the tensile properties of HSSSWRreinforced ECC. This may be because the size effect on tensile properties of ECC can be negligible due to ductile nature of ECC material (Lepech & Li, 2003; Rokugo et al., 2007).
3.8 Comparison with ECC Reinforced with Steel Bars or FRP Grids
In order to compare the strengthening effect of HSSSWR on ECC with that of other reinforcing materials on ECC, a comparison was made with the previous studies on ECC reinforced with steel bars or FRP grids (Kunieda et al., 2010; Zhu et al., 2018). The comparison of test results of maximum tensile stress(f_{se}_{,}_{u}) and its corresponding strain (ε_{se}_{,}_{u}) of HSSSWRreinforced ECC specimens in this paper are compared with those of steel barreinforced ECC specimens in literature (Kunieda et al., 2010) and CFRP gridreinforced ECC specimens in literature (Zhu et al., 2018), as shown in Table 5. The comparison presented in Table 5 (S1–1 versus A1, S2–1 versus A4, MC1 versus A2, and MC2 versus A4) indicated that the tensile strength (f_{se,u}) and its corresponding strain to (ε_{se}_{,}_{u}) of HSSSWRreinforced ECC specimens are higher, compared with those of steel barreinforced ECC specimens or CFRP gridreinforced ECC specimens, even though both the tensile strength of ECC matrix (f_{e,u}) and reinforcement ratio (ρ_{w}) of the steel barreinforced ECC specimens or CFRP gridreinforced ECC specimens are higher than those of HSSSWRreinforced ECC specimens. This demonstrates that HSSSWR exhibits better reinforcement efficiency when used to reinforce ECC, compared with steel bars or CFRP grids. This is attributed to the fact that the low tensile strength and early yielding of ordinary steel bars lead to the relatively low tensile strength of ECC reinforced by ordinary steel bars. In addition, the rupture strain of CFRP grids was much lower than the ultimate strain of ECC, which would cause the underutilization of tensile strength and deformation capacity of ECC, so the tensile strength and ultimate strain of CFRP gridsreinforced ECC were relatively low.
4 Tensile Stress–Strain Model of HSSSWRReinforced ECC
4.1 Proposed Stress–Strain Model
As analyzed above, the tensile stress–strain curves of HSSSWRreinforced ECC can be divided into three stages. Only the first two stages (elastic stage and elastic–plastic stage) are discussed below considering that the third stage (falling stage) would not be used in practice. So a twostage model is proposed for describing stress–strain relationship of HSSSWRreinforced ECC in tension, as shown in Eq. (1) and Fig. 10. Fig. 10 shows a typical tensile stress–strain model curve for HSSSWRreinforced ECC. In this model, a linear stress–strain relationship is adopted in the elastic stage, and in the elastic–plastic stage, the total stress is shared by ECC and HSSSWR together. In addition, the strength utilization coefficient of HSSSWR (γ) is introduced in the elastic–plastic stage, considering the inadequate utilization of tensile strength of HSSSWR. This may be caused by the small differences between tensile stresses of longitudinal HSSSWRs in the reinforced ECC under axial tension because of the different tightness of HSSSWRs which may occur during construction. The other reason may be that the relative slip between HSSSWRs and ECC would cause stress hysteresis of longitudinal HSSSWRs:
where f_{se} and ε_{se} are the tensile stress of HSSSWR reinforced ECC and the strain corresponding to f_{se}, respectively; f_{s}and f_{e} are the tensile stresses of ECC and longitudinal HSSSWRs, respectively.
4.2 Analysis of Model Parameters
4.2.1 Elastic Stage
Before the cracking of HSSSWRreinforced ECC, the external load is carried by HSSSWR and ECC together, which are in the elastic stage. The slip between the HSSSWR and ECC was very small in this stage, which can be ignored (Zhu et al., 2020). According to the strain coordination between HSSSWR and ECC, the force equilibrium equation of HSSSWR reinforced ECC in tension can be expressed by Eq. (2a):
where ε_{se}, ε_{e} and ε_{s} are the tensile strain of HSSSWR reinforced ECC, ECC and HSSSWR, respectively; A_{se}, A_{e} and A_{s} are crosssectional areas of HSSSWR reinforced ECC, ECC and longitudinal HSSSWRs, respectively. The crosssectional areas of HSSSWR reinforced ECC and ECC can be assumed to be equal considering the small reinforcement ration of longitudinal HSSSWRs. The strains of HSSSWR reinforced ECC, ECC and HSSSWR can be considered to be the same according to the strain coordination between HSSSWR and ECC in the elastic stage. Thus, the elastic modulus of HSSSWRreinforced ECC (E_{se}) can be obtained as follows:
4.2.2 Elastic–Plastic Stage
In the elastic–plastic stage, the stress–strain relationship involved with the stress–strain relationships of both HSSSWRs and ECC. A function form of cubic polynomial is adopted to describe the tensile stress–strain relationship of the HSSSWR based on the regression analyses of the tensile test results of HSSSWRs. The proposed tensile stress–strain model of HSSSWRs is expressed as follows:
where f_{s,u} is the ultimate tensile stress of the HSSSWR; ε_{s} and ε_{s,u} are tensile strain and ultimate tensile strain of the HSSSWR, respectively; a is the material coefficient, which was determined to be 3.33 by regression analyses of test results.
The stress–strain model for ECC in tension proposed in our previous research (Liu, 2018) was adopted to express the tensile stress of ECC (f_{e}):
where ε_{e} is the strain corresponding to f_{e}. As discussed above, the cracking strain of HSSSWRreinforced ECC are close to those of ECC due to the strain coordination of these two materials, so ε_{se,cr} can be set to be equal to ε_{e,cr}.
4.2.3 Strength Utilization Coefficient of HSSSWR
By substituting Eq. (2), Eq. (3) and Eq. (4) into Eq. (1), the tensile constitutive model of HSSSWRreinforced ECC can be expressed as:
The failure mode of HSSSWRreinforced ECC is the rupture of the longitudinal HSSSWR, so the ultimate strain of HSSSWR reinforced ECC mainly depends on the ultimate strain of HSSSWR, which can be expressed by ε_{se,u} = ε_{s,u}. By regression analysis of test results of all specimens except for specimens A4, A5 and B4 using Eq. (5), the value of strength utilization coefficient of HSSSWR (γ) and the corresponding coefficient of determination (the square of correlation coefficient) for each specimen was obtained, as shown in Table 6. The values of γ for the specimens in Table 6 are very close to each other, so the value of γ in Eq. (5) was taken to be the average value (0.73).
According to the proposed constitutive model expressed by Eq. (5) and theory of mechanical equilibrium, the following equations for calculating the cracking stress (f_{se,cr}) and maximum tensile stress (f_{se,u}) of HSSSWR reinforced ECC can be obtained as follows:
4.3 Model Verification
In order to verify the accuracy of the proposed tensile constitutive model of HSSSWR reinforced ECC, Fig. 11 presents the comparison of the test stress–strain curves from initial loading to peak load of all specimens in Table 1 and the proposed model expressed by Eq. (5). The peak point of the stress–strain curve (the end of the stress–strain curve) in Fig. 11 indicates the first HSSSWR rupture point. As shown in Fig. 11, the proposed model agrees well with the test stress–strain curves in the elastic stage. In the elastic–plastic stage, the proposed model consists with the overall trends of the test stress–strain curves, considering the fluctuations of the test curves due to the appearance and development of cracks in this stage. The comparison indicates that the proposed model can be applied to describe the stress–strain relationship of HSSSWR reinforced ECC. Besides, the test values of cracking stress and maximum tensile stress (tensile strength) are compared with the calculated values using Eq. (6), as shown in Table 7. In Table 7, t and c represent test values and calculated values, respectively, and r is the ratio of the test value to the calculated value. In Table 7, the average value of the ratios of test values to calculated values for cracking stresses of specimens is 1.02 with a variation coefficient of 0.03. In addition, the average value of the ratios of test values to calculated values for tensile strengths of specimens is 1.08 with a variation coefficient of 0.05. This indicates that Eq. (6) can be accepted to predict the cracking stress and tensile strength of HSSSWRreinforced ECC.
5 Conclusions
The tensile performance of HSSSWRreinforced ECC is investigated experimentally and theoretically. The effects of influence factors (reinforcement ratio of HSSSWR, formula of ECC and width of the test specimen) on tensile characteristics of HSSSWRreinforced ECC were discussed and revealed. A stress–strain model is developed for HSSSWR reinforced ECC in tension:

1.
Adding HSSSWRs in ECC was verified to be an effective measure to enhance both the tensile strength and deformation capacity of ECC under tension. Compared with steel bars or CFRP grids, HSSSWR exhibits better reinforcement efficiency when used to reinforce ECC. The final failure of HSSSWRreinforced ECC was characterized by longitudinal HSSSWR rupture and pullout of PVA fibers at the main cracked section. Multiple cracks, good crackwidth control capacity and high deformation capacity of HSSSWR reinforced ECC were observed due to the bridging role of the internal PVA fibers and retarding effect of HSSSWRs on the development of cracks.

2.
Increasing the reinforcement ratio of longitudinal HSSSWRs is suggested to be used to improve the tensile strength, crackwidth control capacity, deformation capacity and tensile toughness of HSSSWR reinforced ECC under tension. The enhancement effect of increasing the reinforcement ratio of HSSSWR on the cracking stress of HSSSWR reinforced ECC is much lower than that on the tensile strength. The tensile properties of the HSSSWR reinforced ECC plates are almost not affected by increasing the plate width.

3.
Adding thickener in ECC can be adopted to significantly improve the crackwidth control capacity and deformation capacity of HSSSWR reinforced ECC under tension due to enhancing uniform distribution of PVA fibers, although the cracking stresses and tensile strength of HSSSWR reinforced ECC would be slightly decreased as a result of bringing small bubbles in the matrix. The cracking strain of HSSSWR reinforced ECC is close to that of the ECC matrix.

4.
The tensile stress–strain curve of HSSSWR reinforced ECC can be divided into three stages, including linear elastic stage, elastic–plastic stage and falling stage. The proposed tensile stress–strain model and calculation equations of model parameters were validated to be acceptable for predicting tensile mechanics of HSSSWR reinforced ECC through being compared with the test results.
