Analysis of ShortTerm Prestress Losses in Posttensioned Structures Using Smart Strands
International Journal of Concrete Structures and Materials volume 16, Article number: 1 (2022)
Abstract
The proper estimation of prestressing force (PF) distribution is critical to ensure the safety and serviceability of prestressed concrete (PSC) structures. Although the PF distribution can be theoretically calculated based on certain predictive equations, the resulting accuracy of the theoretical PF needs to be further validated by comparison with reliable test data. Therefore, a Smart Strand with fiber optic sensors embedded in a core wire was developed and applied to a fullscale specimen and two longspan PSC girder bridges in this study. The variation in PF distribution during tensioning and anchoring was measured using the Smart Strand and was analyzed by comparison with the theoretical distribution calculated using the predictive equations for shortterm prestress losses. In particular, the provisions for anchorage seating loss and elastic shortening loss were reviewed and possible improvements were proposed. A new method to estimate the amount of anchorage slip based on real PF distributions revealed that the general assumption of 3–6mm slip falls within a reasonable range. Finally, the sensitivity of the PF distribution to a few of the variables included in the equation of the elastic shortening loss was examined. The study results confirmed that the developed Smart Strand can be used to improve the design parameters or equations in PSC structures by overcoming the drawbacks of conventional sensing technologies.
1 Introduction
The correct level of the prestress introduced by prestressing tendons, such as sevenwire strands, is critical to ensure the safety and serviceability of prestressed concrete (PSC) structures. The prestressing force (PF) distribution is usually estimated based on certain predictive equations specified in design codes and specifications. However, the frequently reported deterioration of PSC structures, including cracks and abnormal deformation, has been largely attributed to inappropriate theoretical estimation of PF distribution. Short and longterm prestress losses (Nilson, 1987) have a crucial effect on the spatial and timedependent distribution of the PF. Therefore, the theoretical prestress losses should be verified by comparison with reliable data obtained from test specimens or, more preferably, from realscale structures. Although this has been achieved using conventional sensors or techniques, these previous studies were incapable of validating the accuracy of the existing equations for predicting prestress losses.
For instance, electrical resistance strain gauges (ERSGs) that have been frequently used to measure the strains of structural components could not be applied successful to prestressing tendons. When attached to the surface of the helical wires of a sevenwire strand, the ERSGs were prone to damage during tensioning of the strands in posttensioned members and releasing of the strands in pretensioned members, resulting in unreliable data. Other experimental approaches also showed some limitations in comprehensibly predicting the PF distribution required for validating the prestress losses. Some studies indirectly derived the strand strains from the measurement of concrete strains (AbdelJaber & Glisic, 2019; Garber et al., 2015), resulting in less accurate and limited information on the strains of a strand. In some other studies, the strand strain could be obtained only at the anchorage of a tendon using load cells (Burns et al., 1991) or liftoff test (Lundqvist & Nilsson, 2011). The complete distribution of PF along a tendon, as affected by prestress losses, could not be obtained by the conventional sensing technologies adopted in these previous studies. Furthermore, even more recent and advanced technologies could not completely overcome these drawbacks in terms of PF distribution: several examples are ultrasonic waves (Washer et al., 2002), vibration analysis (Kim et al., 2004), elastomagnetic sensors (Cho et al., 2015), and acoustic emission (Chaki & Bourse, 2009).
Fiber optic sensors have also been used due to their relatively improved accuracy and durability compared to other sensors (Yao et al., 2021). Among several types of fiber optic sensors, fiber Bragg grating (FBG) has been preferred because of its wellestablished theoretical background and its strong validation based on accumulated experience and data (Majumder et al., 2008; Rodrigues et al., 2010). However, attachment of the fiber optic sensor to the strand surface (Gao et al., 2006; Perry et al., 2014; Shen et al., 2018) causes potential problems similar to those of ERSGs exposed to damage and, therefore, does not take full advantage of fiber optic sensors.
Therefore, the Smart Strand with the fiber optic sensors embedded in a core wire was developed in this study to estimate the PF distribution while overcoming these limitations and drawbacks of conventional sensing technologies. The developed Smart Strand was used to measure and analyze the variation in PF distribution during tensioning and anchoring by comparison with the theoretical distribution calculated using the predictive equations for shortterm prestress losses. In particular, the provisions for anchorage seating loss and elastic shortening loss were reviewed and possible improvements were proposed. Although the prestress losses were experimentally investigated using the fiber optic sensors in previous studies (Yao et al., 2021), they focused on the varying trend of the PF distribution affected by prestress losses, not on the mutual validation of the measured data and the existing theoretical equations related to the prestress losses. Furthermore, this study adopted two actual PSC girder bridges with a span of as long as 60 m and a 20mlong fullscale specimen to investigate the prestress losses more realistically, extending the applicability of fiber optic sensors over the smalltomediumscale specimens mainly considered in previous studies (Yao et al., 2021). The study results confirm that the developed Smart Strand can be used to verify and improve the design equations in PSC structures.
2 Configuration of the Smart Strand
The characteristics of the Smart Strand are briefly introduced herein, although more detailed information can be found in some previous studies (Kim et al., 2015, 2020). Fig. 1 shows the shape and dimensions of a Smart Strand, which are almost identical to those of a standard sevenwire strand of Grade 1860 (ultimate tensile strength \(f_{pu}\) = 1860 MPa) with a diameter of 15.24 mm (ASTM, 2018). The apparent feature of the Smart Strand is the replacement of the steel core wire in a regular strand with carbon fiber reinforced polymer (CFRP) core wire to accommodate the embedment of the fiber optic sensor with FBGs. The cross section of the fiber includes a core, a cladding, and coatings (Yao et al., 2021). Although the difference in strains between the core and the coatings was investigated previously (Tan et al., 2021), this strain transfer effect was not considered in this study, because a quantitative measure of the effect was not fully established yet.
Because the stress–strain relation of the Smart Strand is similar to that of a regular strand, the Smart Strand can be regarded as both a sensor and a structural component. The accumulated experience on the Smart Strand (Jeon et al., 2015, 2019; Kim et al., 2019, 2020) ensured the accurate and stable measurement of the short and longterm strains of the strand, mainly due to the durability of the sensor surrounded and protected by CFRP, and further to the specific advantages of the fiber optic sensor and FBG. Moreover, the Smart Strand can also be used to directly measure the true axial strain of a strand when compared to the slightly sloped strain with respect to the axial axis obtained by a sensor attached on the surface of a helical wire. Attempts to embed the FBG into the core wire of a strand have been previously reported (Kim et al., 2012; Lan et al., 2014; Nellen et al., 1999). However, the Smart Strand developed in this study was validated by more cases than in other studies by taking field measurements of real structures and fullscale specimens.
Among various applications of the developed Smart Strand, the effect of longterm prestress losses on PF distribution was previously investigated (Kim et al., 2020). In addition, the friction coefficients related to the friction loss in shortterm prestress losses were investigated previously (Jeon et al., 2015; Kim et al., 2019). However, anchorage seating loss and elastic shortening loss in the shortterm prestress losses have not yet been studied in detail using the Smart Strand; therefore, this study was formulated to fill this research gap.
As a basic principle of FBG, the change of the wavelength of a light wave that is reflected at each FBG can be converted to strain by Eq. (1). The effect of the change of ambient temperature on the strain is excluded in Eq. (1), because this study only deals with shortterm measurement. The extended form of Eq. (1) that includes the temperature compensation required for longterm measurement is presented in a reference (Kim et al., 2020):
where \(\varepsilon\) is the strain, \(p_{e}\) is the photoelastic coefficient (= 0.22), \(\Delta \lambda = \lambda  \lambda_{B}\) is the wavelength shift, \(\lambda\) is the measured wavelength, and \(\lambda_{B}\) is the base wavelength at the start of measurement. The strain obtained in Eq. (1) can be converted to PF using the linear force–strain relation shown in Eq. (2), which is valid over the practical range expected in the service of PSC structures:
where \(P\) is the PF at an FBG, \(\left( {E_{p} A_{p} } \right)_{{\text{smart}}}\) is the equivalent \(E_{p} A_{p}\) of a Smart Strand (= 26,600 kN), \(E_{p}\) is the modulus of elasticity of a strand, \(A_{p}\) is the crosssectional area of a strand, and \(\varepsilon_{p}\) is the strain measured at an FBG of a Smart Strand which corresponds to \(\varepsilon\) in Eq. (1). Because the Smart Strand is a hybrid material of steel and CFRP, the value of \(\left( {E_{p} A_{p} } \right)_{{\text{smart}}}\) was experimentally obtained through the tensile test of the Smart Strand.
3 ShortTerm Losses of Prestress

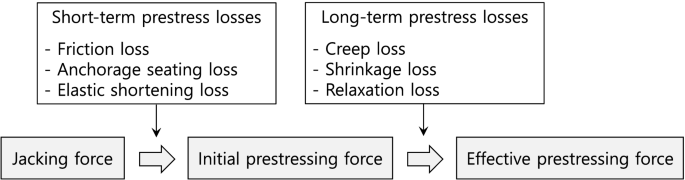

Fig. 2 shows the sources of prestress losses that can occur in the short and long terms and the corresponding PF affected by these losses. The shortterm losses, which are also called instantaneous losses or immediate losses, are the main focus of this study. The longterm losses or timedependent losses were previously analyzed using the same specimen and actual structures as those of this study (Kim et al., 2020). The previous study reported that the developed Smart Strands are useful for the measurement of the longterm PF distribution.
Friction loss occurs due to the contact between strands and a duct during tensioning, where curvature friction is induced at the curved part of a duct, whereas wobble friction is caused at the unintendedly deformed part of a duct. The reduction of PF as affected by the friction can be formulated by Eq. (3) with two types of friction coefficients (Nilson, 1987):
where \(P_{x}\) is the PF at the distance \(x\) along a tendon from the jacking point, \(P_{j}\) is the jacking force, \(\mu\) is the curvature friction coefficient, \(k\) is the wobble friction coefficient, \(\alpha\) is the variation of angle, and \(l\) is the distance. The exponential function can be approximated as a linear function, as also shown in Eq. (3) when \(\mu \alpha + kl\) is sufficiently small, e.g., \(\mu \alpha + kl \le 0.3\). In previous studies (Jeon et al., 2015; Kim et al., 2019), the range of reasonable friction coefficients was derived from the newly proposed methodologies in combination with the data measured using the developed Smart Strands.
Anchorage seating (also called anchorage slip or anchorage set) loss inevitably occurs as the wedges seat themselves into the strands and an anchor head upon release of the jacking force. This drawin slip ranges from 3 to 6 mm depending on various factors (Nilson, 1987). Given that the slip is also affected by the friction between the strands and a duct, the slip is mostly confined to a region close to the live end, i.e., the jacking anchorage, and the PF distribution is symmetrized due to the reverse friction at this region. These assumptions are depicted in Fig. 3, from which Eqs. (4)–(6) can be derived (Joint ACIASCE Committee 423, 2016). The slope indicated by \(p\) can be assumed linear based on a simplification of Eq. (3):
where \(l_{{\text{set}}}\) is the distance affected by anchorage seating, \(E_{p}\) is the modulus of elasticity of strands, \(A_{p}\) is the crosssectional area of strands, \(\Delta l\) is the drawin slip displacement, \(p\) is the friction loss of PF per unit length, and \(\Delta P\) is the anchorage seating loss of PF at the live end. Note that \(\Delta l\) can be expressed as a function of the area of the triangle enclosed by the PFs before and after the anchorage seating in Eq. (6).
Elastic shortening loss is induced, because the prestressing tendons are also shortened when a PSC member is subjected to compression induced by prestressing. In the case of a posttensioned member, a group of strands are sequentially tensioned ductbyduct using a multistrand jack. Therefore, the PF of a prestressing tendon that is previously tensioned and anchored is affected by the subsequent tensioning operation of the other remaining tendons. Although an average value of the elastic shortening loss of all the tendons is generally used for the design purpose (Joint ACIASCE Committee 423, 2016), the elastic shortening loss of a specific Smart Strand can also be considered in Eqs. (7) and (8). That is, \(e_{sm}\) is used instead of \(e_{p}\), because the value measured at a Smart Strand is compared with the theoretical value predicted by Eq. (8). The elastic shortening loss of Eq. (8) is based on the assumption of composite action between concrete and a strand:
where \(f_{ci}\) is the compressive stress of concrete caused by prestressing and selfweight at the location of the strand in concern, \(P_{i}\) is the total initial PF of all the subsequent strands that are tensioned after the strand in concern, \(A_{c}\) is the area of the concrete section, \(I_{c}\) is the second moment of area of the concrete section, \(e_{p}\) is the average eccentricity of all the subsequent strands, which are tensioned after the strand in concern, with respect to the concrete centroid, \(e_{sm}\) is the eccentricity of the strand in concern (a Smart Strand in this study) of which the stress needs to be obtained, \(M_{d}\) is the bending moment due to selfweight with the unit weight of PSC as 25 kN/m^{3}, which is activated by the camber deformation during tensioning, \(\Delta f_{pES}\) is the elastic shortening loss in stress, \(n\) is the modular ratio (= \(E_{p} /E_{c}\)), \(E_{p}\) is the modulus of elasticity of strand, and \(E_{c}\) is the modulus of elasticity of concrete. Although an iterative procedure is required to accurately account for \(P_{i}\), it is usually adequate to estimate \(P_{i} \approx 0.9P_{j}\), where \(P_{j}\) is the jacking force (Nilson, 1987).
4 Experimental Program of Prestressed Concrete (PSC) Structures
4.1 Posttensioned FullScale Specimen
A 20mlong fullscale posttensioned specimen was fabricated to investigate the short and longterm characteristics of PF using Smart Strands, as shown in Fig. 4. Three ducts with different curvatures were arranged as denoted by T1, T2, and T3 in Fig. 4. Twelve 15.2mmdiameter strands, with ultimate tensile strength (\(f_{pu}\)) of 1860 MPa, were inserted into an 85mmdiameter galvanized metal duct and tensioned up to \(0.7f_{pu}\) at one end of the specimen using a multistrand jack, in the order of T1, T2, and T3, when the concrete compressive strength reached 30 MPa with the mix proportion shown in Table 1. The Smart Strands were selectively inserted into each duct together with regular strands as shown in the anchor heads of Fig. 5 with the identification of each hole. Three types of Smart Strands were fabricated with three, five, and seven FBGs, respectively, which are indicated as a number in the Smart Strand in Fig. 5. Five and seven FBGs were equally spaced along a Smart Strand with the margin of 1 m at both ends, whereas three FBGs were located at 1, 10, and 16 m from the jacking end.
4.2 Posttensioned PSC Girder Bridges
To extend the applicability of Smart Strands to real infrastructures, two different types of posttensioned PSC girder bridges (bridges A and B) were employed. Both bridges have eight 60mlong girders, but their specified concrete compressive strengths are 60 MPa and 80 MPa in bridges A and B, respectively. These strengths were used for the theoretical calculation of elastic shortening loss, because tensioning was performed after a sufficient duration to attain them. Figs. 6 and 7 show the main dimensions and configuration of the galvanized metal ducts in A and B’s girder, respectively. All the strands used in these girders have 15.2mm diameter and \(f_{pu}\) = 1860 MPa.

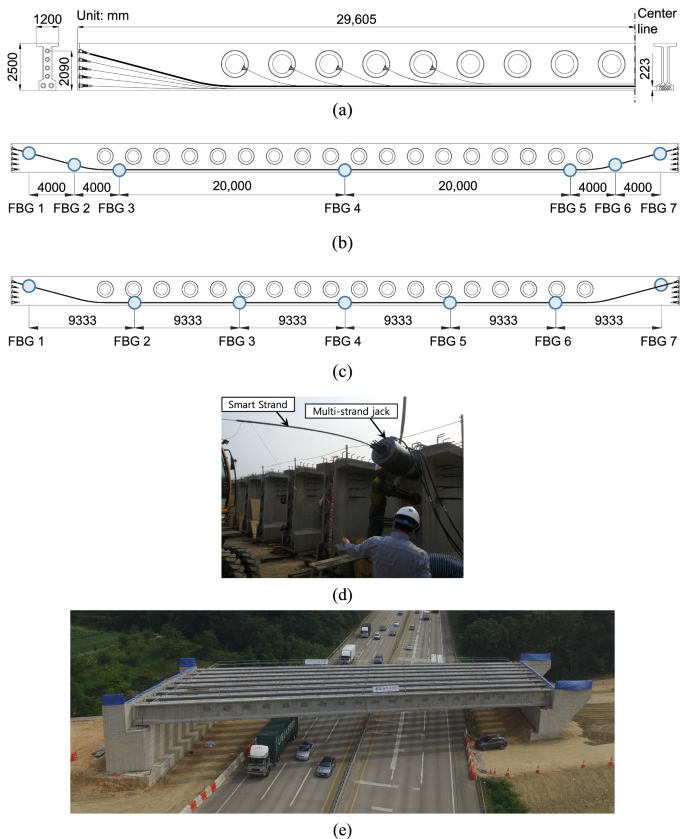

Total four Smart Strands were fabricated with seven FBGs. Two different girders (girders 1 and 2) were chosen in each bridge and one Smart Strand was assigned to each girder. As also shown in Figs. 6 and 7, one Smart Strand has equally spaced FBGs, whereas the remaining three Smart Strands have the FBGs at the center and mainly near both ends to investigate the effect of anchorage slip on the PF distribution. The Smart Strands were inserted into the uppermost duct in the girder, where a larger friction loss would be induced by the larger curvature than that of the other ducts. The Smart Strand was added to the original regular strands, which numbered 21 and 11, and the inner diameters of the corresponding ducts were 105 and 75 mm for bridges A and B, respectively. The strands in each duct were tensioned at both ends using two multistrand jacks in both bridges, where the Smart Strand was tensioned approximately up to \(0.67f_{pu}\). The Smart Strand experienced the elastic shortening loss caused by all the strands included in the other ducts, because the uppermost duct with the Smart Strand was tensioned first in both bridges.
5 Prestressing Force (PF) Distribution During Tensioning and Anchoring
5.1 Posttensioned FullScale Specimen
The PF distributions as affected by shortterm prestress losses were represented for the Smart Strand T1–H7 (see Figs. 4 and 5 for the location) in Table 2 and Fig. 8. The PF distribution was obtained by connecting the PF values measured at each FBG that correspond to the markers in Fig. 8, where the strands were tensioned at the left end. The PF of a strand can vary slightly from strandtostrand even in a duct due to the different degree of interlocking and slip at a hole of the anchor head. This aspect was analyzed by Cho et al. (2015) using elastomagnetic sensors. This explains why the PF of T1–H7 did not attain 180 kN, which corresponds to \(0.7f_{pu}\), as initially intended after tensioning even at the left jacking end.
Fig. 8 apparently shows how the PF distributions are affected by each shortterm prestress loss. The PF gradually decreases from the left end to the right end due to the friction loss during tensioning. However, this decreasing trend does not match the linear decrease resulting from the theoretical mathematical formula of Eq. (3), possibly due to the unexpected local wobble of a duct and inevitable entanglement of some strands while inserting into a duct and jacking. Then, the PF distribution near the anchorage zone decreases due to the anchorage seating loss, as depicted in Fig. 3. The PF distribution further decreases according to subsequent tensioning of the remaining strands included in the other ducts, in the order of T2 and T3.
The measured PF distributions were also compared with those theoretically estimated by Eqs. (3)–(8) at 2m intervals in Fig. 8. The friction coefficients used for the theoretical PF distribution, which were derived from the previously proposed methodologies (Jeon et al., 2015; Kim et al., 2019), are \(\mu\) = 0.21/rad and \(k\) = 0.0034/m. For a more reasonable comparison, these friction coefficients based on the measured PF distribution were adopted instead of those provided in the existing provisions. With an assumed anchorage slip of 6 mm, \(l_{set}\) in Fig. 3 was approximately 13 and 11 m in measurement and theory, respectively. The overall trend of PF distributions in each stage of shortterm prestress losses was similar for the measured and theoretical values, although they showed some differences in absolute values. The final measured PF after shortterm prestress losses was only 4.6% less than the theoretical value at midspan. These results in Fig. 8 confirmed the usefulness of the existing predictive equations for the shortterm prestress losses in estimating the PF distribution for design purposes.
5.2 Posttensioned PSC Girder Bridges
Figs. 9 and 10 show the PF distributions of girder 1 in bridge A and girder 2 in bridge B, respectively, during the history of shortterm prestress losses for both the measurement and theory. They were obtained based on the PF values at FBGs indicated by the markers in Figs. 9 and 10. The PF distributions of the measured data during tensioning, which correspond to the graphs for the friction loss in Figs. 9 and 10, do not exhibit a perfectly symmetrical shape, despite the tensioning at both ends, possibly for the reasons mentioned in Sect. 5.1. In particular, the PF distribution near the left end in Fig. 9 was very irregular. The friction coefficients used to produce theoretical PF distributions are: \(\mu\) = 0.266/rad and \(k\) = 0.0015/m in Fig. 9 and \(\mu\) = 0.105/rad and \(k\) = 0.0012/m in Fig. 10, which were also obtained based on previous studies (Jeon et al., 2015; Kim et al., 2019).
Even the theoretical PF distribution during tensioning in Fig. 10 does not show any linearity, which is explained as follows: in the parabolic shape of a tendon, the increase of \(\alpha\) and \(l\) shown in Eq. (3) above is almost proportional to the horizontal distance along a member, which results in the linear PF distribution according to the assumption of Eq. (3), as evident in Figs. 8 and 9. However, the tendon profile of bridge B differs from the typical parabolic shape, as shown in Fig. 7, resulting in the nonlinear PF distribution in Fig. 10. This causes an inevitable discrepancy in estimating the anchorage slip loss, because the assumptions to draw Eqs. (4)–(6) are based on the linearity, as shown in Fig. 3. In this case, it is still recommended to apply the same equations for practical design purposes, using the averaged linear slope in the PF distribution during tensioning, as done in Fig. 10.
The anchorage slip was assumed to be 6 mm and the resulting \(l_{set}\) was approximately 20 m in both bridges. However, the trend of the measured anchorage slip differed from the idealized shape in Fig. 3 in that the slip was not limited to the end jacking regions but had an influence even on the midspan, although the slip was mainly concentrated on the end regions. Furthermore, the PF distributions at the end regions before and after the anchorage seating did not exhibit a perfect mirror image with the reversed slopes, as shown in Fig. 3. This suggests that the actual PF distribution in real PSC structures can be more complicated than that realized in ideal conditions of test specimens.
The actual elastic shortening loss tended to be larger than the estimation in both bridges: 16.0 and 11.0 kN for measurement and theory, respectively, at the midspan of bridge A, and 17.5 and 5.1 kN, respectively, at the midspan of bridge B. As a result, the measured final PFs after shortterm losses were smaller than the theoretical ones in both bridges: the differences were 4.8 and 11.8% for bridges A and B, respectively. In Sect. 6.3, we will investigate whether the theoretical elastic shortening loss can be further adjusted to approach the measured value by applying more realistic values for the variables in Eqs. (7) and (8).
Despite these sources of differences, the design equations for the shortterm prestress losses remain plausible for predicting the PF distribution in actual structures. However, the theoretical PF distribution was sensitive to the assumed values for the friction coefficients and slip displacement, which highlights the importance of reasonable design parameters. If the actual shortterm PF differs greatly from the theoretical estimation, the concrete stresses can exceed the allowable stresses, possibly resulting in cracks, crushing, and abnormal camber or deflection. Therefore, it is desirable to ensure a sufficient margin in stresses when designing a PSC structure to account for such discrepancies.
6 Additional Analysis of ShortTerm Losses of Prestress
6.1 Friction Loss
As shown in Sect. 5, the friction loss occurs prior to other losses during tensioning and has a significant effect on the subsequent PF distributions. Although detailed analyses on the friction loss and methodologies to determine reasonable friction coefficients are beyond the scope of this study, they have been dealt with in previous studies (Jeon et al., 2015; Kim et al., 2019). The friction coefficients recommended in various provisions show a wide range of variation, e.g.: \(\mu\) = 0.15∼0.25, 0.14∼0.22, and 0.19/rad; \(k\) = 0.00066, 0.0010∼0.0023, and 0.00095∼0.0019/m in AASHTO LRFD bridge design specifications (AASHTO, 2020), Posttensioning manual (PTI, 2006), and Eurocode 2 (CEN, 2004), respectively. In this study, however, more realistic friction coefficients were obtained using the proposed methodologies of previous studies (Jeon et al., 2015; Kim et al., 2019) and applied to the analyses for a more reasonable comparison with the measured PF. As was noted in Sect. 5, the friction coefficients varied depending on the characteristics and conditions of each structure.
6.2 Anchorage Seating Loss
Although the amount of drawin slip is usually assumed in the design by referring to the information provided by a manufacturer of the anchorage device, it strongly affects the PF distribution. For example, if the slip is increased from 3 to 6 mm, \(l_{set}\) and anchorage slip loss increase by as much as 41%, according to Eqs. (4) and (5). Therefore, the manufacturer often suggests a conservatively large amount of slip of 6 mm, as evident in some relevant documents (VSL International Ltd., 2015). Therefore, the 6mm slip was assumed in the calculations of the theoretical PF in Figs. 8, 9, and 10.

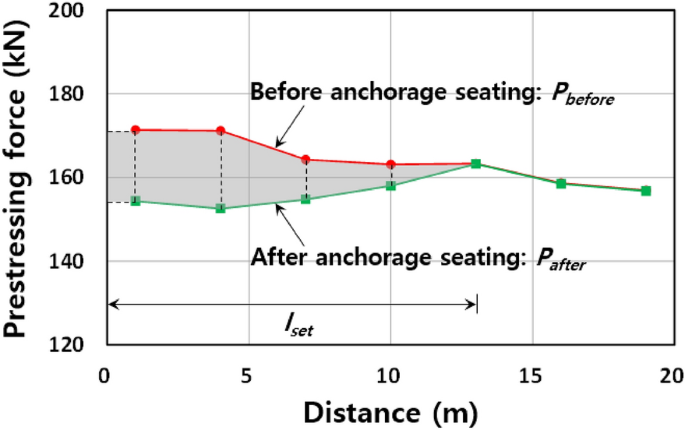

In this study, the PF distributions measured using the Smart Strands were utilized to validate the amount of slip. The principle underlying this procedure is that Eq. (6) can be applied to any shape, not only a triangle. That is, Eq. (6) can be extended to the form of Eq. (9), where Fig. 11 shows an example of the inbetween shaded region for the PF distribution of T1–H7 in Fig. 8 that corresponds to the numerator of the following equation:
where \(P_{{\text{before}}}\) and \(P_{{\text{after}}}\) indicate the PF before and after the anchorage seating, respectively, and all other notations have the same meanings as Eq. (6). The area of the shaded region, which can be idealized as a polygon, can be readily obtained by dividing the region into several subregions, as illustrated in Fig. 11, and summing up the area of each subregion. The shape of the region which is not covered by the measurement of FBGs can be appropriately assumed referring to the overall shape.
On the other hand, when the strand is tensioned at both ends, only half the area with respect to midspan is considered to calculate the slip occurring at each end. For example, Fig. 12 represents the shaded region for the PF distribution in girder 2 of bridge B shown in Fig. 10. The two curves do not meet at any point in this case as the slip affects overall length of the strand.
Tables 3 and 4 show the amount of slip estimated in each Smart Strand using the abovementioned procedure in the fullscale specimen and bridges, respectively. In Table 3, only the Smart Strands with five or seven FBGs were used for the calculation, because those with three FBGs could not produce sufficiently accurate PF distribution to determine the slip (see Fig. 5). However, T1–H11 and T3–H11 were unavailable, because the entire PF distribution could not be obtained due to the damage in some FBGs. The anchorage slip in the strands of T3 affected the entire length due to the absence of curvature friction. The Smart Strand in girder 2 of bridge A was unavailable in Table 4, because it was damaged after tensioning.
The average drawin slip was 5.6 mm both in the fullscale specimen and actual bridges, which validated the general assumption of 6 mm in slip. However, the coefficient of variation that is defined by the standard deviation divided by average was much higher in the bridges than in the specimen, possibly because the fullscale specimen could be tested in more controlled and favorable circumstances than at a construction site of actual bridges. Tables 3 and 4 also suggest that the assumption of slip less than 4 mm is so unconservative that it may lead to overestimation of PF.
Finally, Eqs. (4) and (5) based on the assumption of the linear slope of the PF distributions affected by friction, as shown in Fig. 3, can be extended to consider the more realistic slope together with Eq. (9). However, this procedure would involve more complicated equations than Eqs. (4) and (5), and, therefore, is not recommended from a practical point of view.
6.3 Elastic Shortening Loss
The measured elastic shortening loss largely differed from the theoretical one in Figs. 8, 9, and 10. Therefore, we examined whether this discrepancy could be reduced by adopting certain strategies. The assumptions implied in Eqs. (7) and (8) are as follows. First, Eq. (8) assumes a perfect bond between the strand and surrounding concrete, because the modular ratio (\(n\)) is used based on strain compatibility. However, regardless of the subsequent grouting into the duct to realize bonded tendon, the tendon remains unbonded until all the tensioning operation is terminated. In the unbonded condition, the tendon strain does not coincide with the strain of the surrounding concrete but is averaged along the length of the tendon. Although this assumption is inevitable to derive a practical equation for elastic shortening loss, it may induce some errors. Second, although \(P_{i}\) is used in Eq. (7), \(P_{i}\) cannot be determined prior to the calculation of shortterm losses. Therefore, \(P_{i} \approx 0.9P_{j}\) is usually assumed to simplify the calculation. However, in reality, \(P_{i}\) does not maintain a constant value of \(0.9P_{j}\) but varies along the span, as evident in Figs. 8, 9, and 10. This is another inevitable assumption that cannot easily be rectified. Third, although a constant section was assumed in calculating \(M_{d}\) in Eq. (7), the section is usually gradually enlarged near the end region, as shown in Figs. 6 and 7, to accommodate anchorage devices and stress concentration at the end of posttensioned structures. This would have minor effect on the distribution of \(M_{d}\). Fourth, the gross section was used in the calculation of \(A_{c}\), \(I_{c}\), and \(M_{d}\) in Eq. (7). That is, it was assumed that the entire section is filled with concrete for convenience in calculation. In reality, however, the net section with the area of ducts deducted is a more accurate expression during tensioning and anchoring. On the other hand, although the concept of transformed section can also be used to account for the contribution of reinforcements, the effect on \(A_{c}\) and \(I_{c}\) would be negligible. Finally, the accuracy of \(E_{c}\) included in \(n\) of Eq. (8) can be an issue, because \(E_{c}\) varies widely.
In this study, we attempted to improve two of these aforementioned assumptions. First, the improvement made by adopting the net section is discussed. Table 5 compares the gross section with the net section, where the outer diameter of each corrugated duct was conservatively used to calculate the deducted area. In fact, consideration of the duct area affects all the variables included in Eq. (7). It also slightly changes the location of the centroidal axis along the member length, affecting \(e_{p}\), \(e_{sm}\), and \(I_{c}\) at each point, because the locations of ducts vary in longitudinal direction. However, the variables in Eq. (7) are not greatly affected by considering the net section, because the change in area only ranges from 1.6 to 5.3% in Table 5. Because the reevaluation of \(e_{p}\), \(e_{sm}\), and \(I_{c}\) at every point in consideration involves cumbersome tasks, only the effect of change in \(A_{c}\) and \(M_{d}\) on the elastic shortening loss is analyzed. Table 6 shows the magnitude of the elastic shortening loss at midspan in Figs. 8, 9, and 10 as affected by the deduction of duct area. The elastic shortening loss of the fullscale specimen was 6.7 kN for T1–H7 in Fig. 8. The elastic shortening loss of the twelve Smart Strands inserted into T1 ranged from 5.3 to 7.5 kN and averaged 6.2 kN. This revealed that the elastic shortening loss increased by 2.7∼17.6% and approached the measured values by employing the net section instead of the gross section in original calculation. Nevertheless, the difference between the measurement and theory did not greatly diminish and the measured elastic shortening loss was still much larger than theoretical one.
Second, the effect of the modulus of elasticity on the elastic shortening loss is investigated. When compared to \(E_{p}\) which is considered a constant value of 200,000 MPa in this study, \(E_{c}\) varies depending on various factors, including compressive strength, unit weight, and moisture condition of concrete, various properties and volumetric proportion of aggregate (ACI Committee 318, 2019; Mehta & Monteiro, 2006; Neville, 1996). Many provisions provide the formula for \(E_{c}\) as a function of dominant factors, such as compressive strength and unit weight (ACI Committee 318, 2019; CEN, 2004; KCI, 2012). Table 7 presents the modulus of elasticity calculated according to some representative provisions, where the specified compressive strength included in the formula indicates the strength attained when tensioning. In the original calculation of this study, \(E_{c}\) was obtained from KCI (2012). The modulus of elasticity of the fullscale specimen ranged from 93.5 to 119.2% when the original \(E_{c}\) is considered 100%, whereas that of the bridges A and B ranged from 106.0 to 113.8%. As shown in Eq. (8), the modulus of elasticity of concrete is inversely proportional to the elastic shortening loss, resulting in Table 8. That is, using \(E_{c}\) based on other provisions increased the difference between the theoretical elastic shortening loss and the measured one in most cases. However, the theoretical values that can be adjusted by modifying \(E_{c}\) remained insignificant when compared to the measured elastic shortening loss.
Based on the above analyses, we concluded that accurate prediction of the elastic shortening loss is difficult, because almost all the variables included in the predictive equations are affected by the accuracy in calculation and provisions. Furthermore, the predictive equations are founded on several intrinsic assumptions. The amount of the elastic shortening loss can vary to some extent by applying some improvement or the alternatives to each variable. A combination of two or more strategies would increase the variability in the elastic shortening loss. However, it was difficult to determine which strategy is effective, because the difference from the measured elastic shortening loss remained large in this study and the trends of the measured and theoretical PF distributions are arbitrarily dependent on a structure. Further study is required to accumulate more measurement data to clarify the tendency of elastic shortening loss.
7 Conclusions
The prestressing force (PF) distribution in a PSC structure is closely related to the short and longterm prestress losses. Although some predictive equations have been used to estimate these prestress losses, these equations were not sufficiently validated by comparison with the measured PF distribution. Therefore, the Smart Strand with fiber optic sensors of FBG type was developed and was applied to a 20mlong fullscale posttensioned specimen and two 60mlong posttensioned PSC girder bridges to investigate the effect of shortterm prestress losses on the PF distribution. Based on the study results, the following conclusions can be drawn:

1.
The variation in PF distribution during tensioning and anchoring was analyzed using the developed Smart Strands. These PF distributions were affected by the shortterm prestress losses in the order of friction loss, anchorage seating loss, and elastic shortening loss. They were compared with the theoretical distribution calculated using the predictive equations for the shortterm prestress losses. The shape of the PF distributions measured during tensioning does not match the theoretical result that can be mathematically derived considering the friction. This may be due to the unexpected local wobble of a duct and the inevitable entanglement of some strands when inserting into a duct and jacking. In addition, the trend of the anchorage slip and the magnitude of the elastic shortening loss differed from the theoretical values especially in actual bridges. This aspect suggested that the PF distribution in real PSC structures can be more complicated than that realized in ideal conditions of test specimens. However, overall trend of the measured and theoretical PF distributions was similar in each stage of the shortterm prestress losses, although the absolute values did differ. These study results revealed that the existing predictive equations for the shortterm prestress losses can be useful in estimating the PF distribution for design purposes.

2.
The drawin slip usually ranges from 3 to 6 mm depending on various factors and characteristics of the anchorage device. The assumption on the magnitude of the slip strongly affects the PF distribution. A new methodology was proposed in this study, where the PF distributions measured using Smart Strands were utilized to validate the slip. The procedure adopted the principle that the area between two PF distributions before and after the anchorage slip divided by the axial stiffness of the strand corresponds to the slip. As a result, the average slip was 5.6 mm in both the fullscale specimen and actual bridges, although the values in the bridges showed more deviation than those in the specimen, which validated the general assumption of 6 mm in slip. The assumption of slip less than 4 mm is so unconservative that it may lead to overestimation of PF.

3.
The measured elastic shortening loss showed a relatively larger discrepancy with the theoretical one than the other shortterm losses in this study. Therefore, we applied certain strategies in an attempt to reduce this discrepancy. Among several assumptions implied in the predictive equations for the elastic shortening loss that we examined, a few were found to be inevitable for practical purposes, such as a perfect bond between the strand and surrounding concrete. Two possible approaches were attempted in this study. First, using the net section with the duct area deducted instead of a practical gross section increased the elastic shortening loss by 2.7∼17.6%. Second, the alternative formulas for the modulus of elasticity of concrete in ACI 318 and Eurocode 2 were attempted in addition to that in a Korean code originally adopted, which changed the modulus of elasticity and the elastic shortening loss by 6.5∼19.2%. However, it was difficult to determine which strategy is more effective, because the measured elastic shortening loss remained much larger than the theoretical one even after the improvement made in this study.

4.
It is expected that the Smart Strands can be a practical solution for the reasonable assessment of PSC structures, including structural health monitoring during maintenance. In a further study, interpolation of the PF values measured at point sensors such as FBGs can be improved by applying distributed fiber optic sensors, which can realize an almost continuous and smooth profile of the PF distribution. It is also possible to enhance the measurement accuracy by considering the strain transfer effect that inevitably occurs due to the packaging of the fiber optic sensors.
