Comparison of ASR Mitigation Methodologies

International Journal of Concrete Structures and Materials20148:81

https://doi.org/10.1007/s40069-014-0081-4

  • Received: 17 December 2013
  • Accepted: 22 May 2014
  • Published:

Abstract

This study evaluates the dosages of Class F fly ash, lithium nitrate and their combinations to suppress the excessive expansion caused by alkali–silica reactivity (ASR). In order to serve the proposed objective, the mortar bar specimens were prepared from (1) four dosages of Class F fly ash, such as 15, 20, 25 and 30 % as a partial replacement of Portland cement, (2) up to six dosages of lithium nitrate, such as lithium-to-alkali molar ratios of 0.59, 0.74, 0.89, 1.04, 1.19 and 1.33, and (3) the combination of lithium salt (lithium-to-alkali molar ratio of 0.74) and two dosages of Class F fly ash (15 and 20 % as a partial replacement of Portland cement). Percent contribution to ASR-induced expansion due to the fly ash or lithium content, test duration and their interaction was also evaluated. The results showed that the ASR-induced expansion decreased with an increase in the admixtures in the mortar bar. However, the specimens made with the both Class F fly ash and lithium salt produced more effective mitigation approach when compared to those prepared with fly ash or lithium salt alone. The ASR-induced expansions of fly ash or lithium bearing mortar bars by the proposed models generated a good correlation with those obtained by the experimental procedures.

Keywords

  • alkali–silica reactivity
  • mortar bars
  • ASR-induced expansion
  • fly ash
  • lithium nitrate
  • combined use of Class F fly ash and lithium salt

1 Introduction

Alkali silica reactivity (ASR) is one of the major causes of the deterioration in concrete of highway structures, pavements, dam, bridges and airport. ASR is a chemical reaction that occurs between the hydroxyl ions of the alkalis, contributed primarily by Portland cement, and reactive silica in aggregates which form an alkali–silica gel. In the presence of sufficient moisture, the gel expands and produces stresses resulting in concrete cracks, spalling and other deterioration mechanisms (Stanton 1940). The ASR-induced damages can be prevented through the selection of innocuous aggregates that are not susceptible to ASR reaction. Utilizing the appropriate mitigation techniques in suppressing ASR, however, the reactive aggregates can also be safely used in the concrete (McCoy and Caldwell 1951; Touma et al. 2001; Freitag et al. 2003). The most practical and beneficial mean of suppressing ASR-induced expansion is the use of Class F fly ash as a partial replacement of Portland cement because of its economical, technical and ecological benefits (Shehata and Thomas 2000). Furthermore, fly-ash not only reduces the amount of non-durable calcium hydroxide (lime) in concrete, but in the process it converts lime into calcium-silicate-hydrate (CSH) over time (Brough et al. 1996). Fly ash is proven to be somewhat variable in its effectiveness, principally because its composition depends on the coal properties from which it is derived (Hudec and Banahene 1993; Stark et al. 1993; Shehata and Thomas 2000; Malvar and Lenke 2006).

Lithium salts have been used as additives in concrete in order to inhibit the damages due to alkali–silica reactivity (Touma et al. 2001; Millard and Kurtis 2008; Islam 2010). McCoy and Caldwell (1951) were the first researchers to identify lithium compounds as effective admixtures in controlling ASR. The amount of lithium needed to mitigate ASR in fresh concrete is a function of sodium oxide equivalent (Na2Oeq) of Portland cement and the amount of cement used in concrete. The standard lithium dose, referred as 100 % Li dose, is the amount of Li admixture that supplies enough Li ion in the concrete to achieve a lithium-to-alkali molar ratio of 0.74. The efficacy of lithium in suppressing expansion due to ASR strongly depends on the nature or reactivity of the aggregate, the form of lithium, and the amount of alkalis present in the concrete. The lithium nitrate rate to suppress ASR expansion of most aggregates is closed to the standard dosages of 0.74 (McCoy and Caldwell 1951; Durand 2000; Folliard et al. 2006; Ekolu et al. 2007), although highly reactive aggregates may require more, and some less reactive aggregates may need less (Touma et al. 2001; Collins et al. 2004; Islam 2010). An extensive span of lithium-to-alkali molar ratio is found effective in the previous research investigations; such as 0.60–0.90 (Collins et al. 2004); 0.72–0.92 (Feng et al. 2005); 0.925 (Lane 2002); 0.74–0.93 (McKeen et al. 1998), and 0.74–1.04 (Tremblay et al. 2007).

When a large amount of Class F fly ash or lithium salt is unable to suppress ASR-induced expansion of severe reactive aggregate completely, the combination of lithium and moderate amounts of fly ash is an option to control alkali–silica reactivity efficiently (Mckeen et al. 1998; Malvar et al. 2001; Folliard et al. 2003; Johnston et al. 2002; Islam 2010). This technique requires less amount of lithium thereby reduces cost, and a smaller amount fly ash, reduces the risk on the early strength development and produces a low permeable concrete. A number of research investigations confirmed the positive effect of combining lithium compounds and fly ash in attaining the identical concrete properties without sacrificing the damages due to alkali–silica reactivity (Stark et al. 1993; McKeen et al. 1998; Johnston et al. 2002; Ramyar et al. 2004; Taha and Nounu 2008).

Previous research studies have demonstrated a substantial work to investigate the role of individual admixture, either Class F fly ash or lithium salt, in controlling alkali–silica reactivity, whereas a limited number of studies was conducted for mitigating ASR-induced expansion with the combined use of Class F fly ash and lithium salt. However, the previous studies were mostly confined to the test duration of 14 days, and aggregate types that produced a narrow range of ASR-induced expansions. Additionally, the existing investigations were unable to predict empirical equations to evaluate the optimum dosages of admixture that was sufficient enough to hold back the excessive ASR-induced expansion caused by alkali–silica reactivity.

2 Research Significance

The purpose of this study is to enhance the previous research investigations in comparing three mitigation techniques (the individual and combined effect of Class F fly ash and lithium salt) in inhibiting alkali–silica reactivity of four reactive aggregate groups with a large variation in ASR-induced expansion at the immersion ages of 14, 28 and 56 days. The study proposed the models in determining the optimum dosages of Class F fly and lithium nitrate salt in suppressing the excessive expansion below the prescribed limits at the above mentioned three testing periods. Additionally, the study developed a statistical analysis in selecting the combined fly ash and lithium dosage to suppress alkali–silica reactivity from the expansion reading of the mortar bars containing fly ash or lithium salt alone at their respective immersion ages.

3 Experimental Program

The raw materials utilized in this study consisted of four reactive aggregates, ASTM Type V Portland cement, Class F fly ash, and lithium nitrate salt. Table 1 shows the identification, chemical composition, and rock type of the selected aggregate groups. Based on the summary of findings on major rock types (mineralogy) susceptible to alkali–silica reaction in the studies conducted by Bèrubé and Fournier (1993), Islam (2010) and Islam and Akhtar (2013), andesite (RA-A and RA-C), dacite (RA-B) and basaltic-andesite (RA-D) were shown to be reactive and the results are presented in Table 1. The physico-chemical properties of Type V Portland cement, Class F fly ash and lithium nitrate salt are shown in Tables 2, 3 and 4, respectively.
Table 1

The identification, chemical composition, rock type and potential ASR reactivity of the selected aggregates.

Agg. ID

Chemical composition (%)

Rock type

Potential ASR reactivity

SiO2

Al2O3

Fe2O3

CaO

MgO

Na2O

K2O

LOI

RA-A

60.82

15.89

5.37

4.34

2.49

3.57

3.73

2.14

Andesite

Reactive

RA-B

68.00

15.48

2.86

1.14

0.94

4.52

5.40

0.63

Dacite

Reactive

RA-C

59.33

17.15

5.83

5.30

2.54

3.76

2.68

1.83

Andesite

Reactive

RA-D

52.50

18.45

8.35

8.36

4.59

3.74

1.22

0.98

Basaltic-andesite

Reactive

Table 2

Physico-chemical properties of Type V Portland cement.

Chemical composition

Physical properties

Element

Percent

Metal oxide

Specific surface

 SiO2

21.0

 Blaine fineness (cm2/g)

3,760

 Al2O3

3.6

Soundness

 Fe2O3

3.4

 Autoclave expansion (%)

0.11

 CaO

63.1

Air content (%)

6.7

 MgO

4.7

Normal consistency (%)

24.5

 SO3

2.6

Time of setting (min)

Alkali oxide

 Initial set

109

 Na2Oequv

0.42

 Final set

212

Phase analysis

Min. compressive strength

 C3S

61

 1,160 psi (3 days)

 C2S

15

 2,180 psi (7 days)

 C3A

4



 C4AF

10



Loss on ignition

1.3



Insoluble residue

0.28


Table 3

Physico-chemical properties of Class F fly ash.

Chemical composition

Physical properties

Element

Percent

Metal oxide

Specific gravity

2.26

 SiO2

57.8

Retained on #325

19 %

 Al2O3

21.7

Water requirement

93 %

 Fe2O3

5.1

Autoclave expansion

0.01

 CaO

7.4



 SO3

0.5



Total alkali (Na2Oeq)

0.3



Loss on ignition

0.2



Moisture content

0.0


Table 4

Physico-chemical properties of lithium nitrate salt.

Physical properties

Appearance

Clear, water white to yellow solution

Odor

Odorless

Solubility in water

Soluble in any proportion

Oxidizing characteristic

Oxidizer

Chemical properties

pH

7–9.5 at 25 °C

Boiling point

110–120 °C

Specific gravity

1.2–1.3 g/cc at 25 °C

Molecular weight

68.95

Chemical compositions

Lithium nitrate

30 %

Water

70 %

The aggregate gradation, as per the requirements of ASTM C 1260, utilized to cast the test mortar bars is shown in Table 5. Water-to-SCMs ratio (by weight) of 0.47 and the graded aggregates to total cementitious materials ratio of 2.15 were used. The absorption and moisture content of the graded aggregates were included in determination of the design water-to-SCMs ratio. A constant 7-bar batch size mixture having the graded crushed aggregates of 2,310 g and Portland cement of 1,026.7 g was used to fabricate four control mortar bars of each trial aggregate source. In order to suppress excessive ASR-induced expansion of control mortar bars, each aggregate group was treated with Class F fly ash dosages of 15, 20, 25 and 30 % by weight as a partial replacement of Portland cement, up to six dosages of lithium-to-alkali molar ratios of 0.59, 0.74, 0.89, 1.04, 1.19, and 1.33, and the combined use of lithium-to-alkali molar ratio of 0.74 and the fly ash dosages of 15 and 20 % as a partial replacement of Portland cement. It was noted that the ASTM C 1260 test was modified by adding lithium into the soak solution to maintain the same lithium-to-alkali molar ratio in the mortar bars and the soak solution (Berra et al. 2003; Folliard et al. 2003; Collins et al. 2004; Li 2005). Table 6 documents the lithium-to-alkali molar ratio and amount of lithium nitrate in the mortar bars and 1L of NaOH solution. Amount of Portland cement, fly ash and lithium salt in the mortar bars containing both Class F fly ash and lithium salt is shown in Table 7.
Table 5

Crushed aggregate gradation for mortar bar specimens.

Sieve size

% Mass

Passing

Retained on

4.75 mm (no. 4)

2.36 mm (no. 8)

10

2.36 mm (no. 8)

1.18 mm (no. 16)

25

1.18 mm (no. 16)

600 µm (no. 30)

25

600 µm (no. 30)

300 µm (no. 50)

25

300 µm (no. 50)

150 µm (no. 100)

15

Table 6

Lithium-to-alkali molar ratio and amount of lithium nitrate in the mortar bars and 1 L of NaOH solution.

Li Na + K

LiNO 3 a in mortars (g)

1.0 L of 1 N NaOH solution

Li Na + K

Waterb (g)

LiNO3 (g)

NaOH (g)

0.59

37.78

0.295

952.50

67.93

40

0.74

47.23

0.370

940.56

84.92

0.89

56.67

0.445

928.70

101.90

1.04

66.12

0.520

916.80

118.90

1.18

75.56

0.590

904.90

135.86

1.33

85.01

0.665

893.00

152.90

aBased on 7-bar size mixture.

bDistilled water was added to prepare NaOH solution.

Table 7

Amount of Portland cement, fly ash and lithium salt in the mortar bars containing both Class F fly ash and lithium salt.

Design Criteria

Portland cement (g)

Fly ash (g)

Lithium (g)

15 % FA + 100 % Li

872.7

154.0

47.23

20 % FA + 100 % Li

821.3

205.4

47.23

aBased on 7-bar size mixture.

The mortar bars were mixed in accordance with the requirements of ASTM C 305, and molded within a total mixing time of not more than 2.25 min. After 24 h of moist curing, the bars were demolded, and initial readings were taken before immersing in water at 80 °C for 24 h for which the zero readings were recorded. Afterward, the mortar bars were submerged in a NaOH solution of 1 N concentration in an air-tight plastic container held in an oven maintaining the temperature of 80 °C. Subsequent readings were taken at the immersion ages of 3, 6, 10, 14 days and thereafter one reading per week until the immersion age of 98 days was reached.

4 Results and Discussions

4.1 ASR Evaluation of the Selected Aggregates

The ASR classification of the investigated aggregates was evaluated based on the expansion limits of mortar bars of 0.10 % at 14 days, suggested by ASTM C 1260, and 0.28 % at 28 days, and 0.47 % at 56 days, proposed by by Islam (2010) and Islam and Ghafoori (2013). Additionally, the extended failure criteria of 0.33 % at 28 days and 0.48 % at 56 days, proposed by Hooton (1995), and Hooton and Rogers (1993), were also applied to assess the aggregate’s susceptibility due to alkali–silica reactivity. All aggregates tested in this study were considered as reactive based on the above mentioned 14-, 28- and 56-day failure criteria. The mineralogy of aggregates also produced the similar ASR classification with that obtained by the expansion limits at the three test durations. Since the alkali–silica reaction is a complex meachanism that depends on a number of factors, it was highly recommended to use the conservative expansion limits in evaluating the reactivity of an aggregate. As such, in this study, the 28- and 56-day extended failure criteria of 0.28 and 0.47 %, respectively, were utilized.

4.2 Controlling ASR-Induced Expansion Using Class F Fly Ash

Figure 1 shows that expansion progression of mortar bars made with various dosages of Class F fly ash and each aggregate group. The ASR-induced expansion of each aggregate group as related to Class F fly ash and immersion age is shown in Fig. 1. As can be seen, the expansion of the test mortar bars increased with an increase in test duration, and decreased with increasing fly ash content. The rate of expansion was extensive at the early immersion age for the control specimens, and it reduced with replacing Portland cement by weight with Class F fly ash. The results revealed the optimistic influence of the selected dosages of Class F fly ash in reducing the adverse effect of reactive aggregates.
Fig. 1
Fig. 1

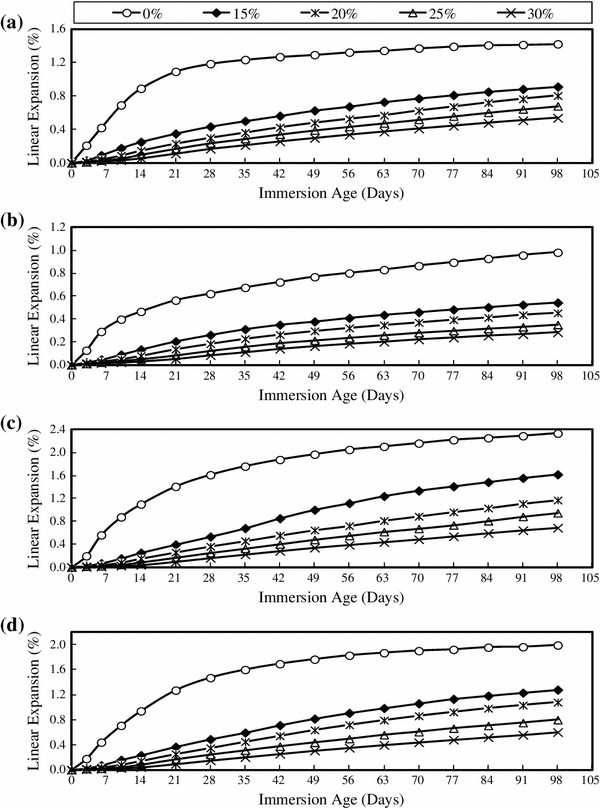

Expansion progression of mortar bars made with various dosages of Class F fly ash and a RA-A, b RA-B, c RA-C, and d RA-D aggregates.

4.2.1 Percent Contribution to Mortar Expansion due to Class F Fly Ash, Immersion Age and Their Interaction

The experimental mortar expansion of each aggregate group consisted of two factors of Class F fly ash and immersion age with three levels at each setting: three immersion ages of 14, 28 and 56 days, and three rates of Class F fly ash of 0, 15 and 30 %. A full factorial analysis was performed to evaluate the effect of each factor (fly ash and immersion age) and their interaction on the response variable (which was ASR-induced expansion). The results are provided in Fig. 2. The plot demonstrates that, for all trial aggregates, the percent contribution to ASR-induced expansion (PCE) due to immersion age, Class F fly ash, and the combined influence of immersion age and fly ash was shown to be nearly consistent (approximately 20 % due to immersion age, 78 % due to Class F fly ash, and 2 % due their combined effect). The results demonstrated that aggregate mineralogy had less influence on the percent contribution to ASR-induced expansion of mortar bars treated with when Class F fly ash.
Fig. 2
Fig. 2

Percent contribution to mortar expansion due to Class F fly ash, immersion age and their interaction.

4.2.2 Empirical Modelling to Predict the Optimum Analytical Class F Fly Ash Dosage

ASR-induced expansion of fly-ash containing mortar bars (Exp FA ) as related to control expansion (Exp CE ), immersion age (t) and Class F fly ash dosage (F) was evaluated, and the results were expressed in Eq. (1). A very good correlation, with an R2 value of 0.90, existed between the experiment and predicted expansion of fly-ash mortar bars as shown in Fig. 3. The The model was appropriate for a wide range of Class F fly ash (0–30), ASR-induced expansion, and immersion age (14–98 days). For the proposed model, the absolute t-ratio and Prob(t) for all regression coefficients were found to be highly significant. Additionally, the F-ratio of the model was found to be very high that shows the model parameter’s significance. Finally, percent Class F fly ash dosage can be expressed in Eq. (2) by taking natural logarithm in both sides of Eq. (1).
Fig. 3
Fig. 3

Comparison of experimental and analytical ASR-induced expansion.

The optimum analytical Class F fly ash dosage required to hold the control expansion below the prescribed failure limits of mortar bars at the ages of 14, 28 and 56 days was evaluated. The results are shown in Table 8. As can be seen, there is a good agreement between the optimum experimental fly ash content and the analytical fly ash dosage at the ages of 28 and 56 days. However, the results obtained at the early age of 14 days were inconsistent and were to be more conservatives. The main reasons can be stated as follows:
Table 8

Optimum experimental and analytical Class F fly ash dosage at various immersion ages.

Aggregate ID

Immersion age (days)

Control expansion (%)

Expansion of treated bars below failure limit (%)

Experimental Class F fly ash (%)

Analytical Class F fly ash dosage (%)

RA-A

14

0.890

0.099

25

37.9

28

1.185

0.236

25

27.6

56

1.323

0.434

25

22.7

RA-B

14

0.465

0.081

20

36.8

28

0.620

0.261

15

19.3

56

0.800

0.409

15

17.9

RA-C

14

1.098

0.081

25

44.0

28

1.610

0.251

25

31.3

56

2.050

0.389

30

33.0

RA-D

14

0.940

0.084

25

41.5

28

1.472

0.244

25

30.2

56

1.828

0.352

30

32.3

  • ASR-induced expansion of fly-ash containing mortar bars made with trial aggregate groups at early age (<14 days) varied abruptly,

  • ASR-induced expansion below 14 days was not critical in evaluating alkali–silica reactivity, and

  • expansion rate below the early immersion age differed over a wide range, and did not follow any distinct pattern.

E x p F A = exp ( - 0.940 + 0.613 E x p C E + 0.00928 t - 0.0540 F )
(1)
F = 1 0.054 - 0.9 40 + 0.6 1 3 E x p C E + 0.00 9 2 8 t - ln ( E x p F A )
(2)
where Exp FA and Exp CE are the percent linear expansions of fly ash treated mortar bars and control mortar bars, respectively; t is immersion age in days, F is Class F fly ash dosages (in percent) as a partial replacement of Portland cement by weight.

4.3 Controlling ASR-Induced Expansion Using Lithium Salt

The results of the study clearly revealed that the selected lithium nitrate dosages reduced the adverse effect of alkali–silica reactivity for the four reactive aggregates. A typical ASR expansion as a function of the immersion age and lithium-to-alkali molar ratio is shown in Fig. 4. As can be seen, the expansion of control mortar bars expanded rapidly at the early age of immersion, and the expansion rate decreased with an increase in the immersion age. In the case of lithium-bearing mortar bars, the expansion rate was fairly small throughout the test duration. Additionally, the mortar bars containing lithium salt showed little tendency to expand after the immersion age of 2 months. The results of the study clearly revealed that the selected lithium nitrate dosages reduced the harmful effect of alkali–silica reactivity for the selected reactive aggregate groups. The expansion rate of lithium-bearing mortar bars was fairly small throughout the test duration. Additionally, those specimens showed little tendency to expand after the immersion age of 2 months. The expansion behavior of the remaining three aggregates groups over the immersion age also followed the similar pattern to that of the AR-D aggregate.
Fig. 4
Fig. 4

ASR-induced expansion of the mortar bars made with RA-D aggregate and various lithium dosages.

4.3.1 Percent Contribution to Mortar Expansion due to Lithium Salt, Immersion Age and Their Interaction

A full-factorial analysis was conducted to evaluate the percent contribution to ASR-induced expansion (PCE) due to lithium salt, immersion age, and their interaction. The results are presented in Fig. 5. The plot demonstrates that percent contribution to ASR-induced expansion for all trial aggregates due to immersion age varied from 18.86 to 30.06 % with an average of 25.5 %, and that of lithium salt differed from 68.70 to 78.32 % with an average of 73.32 %, respectively, and the interaction of immersion age and lithium salt contributed about 1.3 % to ASR-induced expansion. The PCE due to immersion age and lithium salt for the investigated aggregate groups was more diverged as compared to that obtained due to immersion age and fly ash (Fig. 2). As such, suppressing alkali–silica reactivity using the lithium salt depended mainly on aggregate mineralogy.
Fig. 5
Fig. 5

Percent contribution to mortar expansion due to lithium salt, immersion age, and their interaction.

4.3.2 Empirical Modeling to Predict the Optimum Analytical Lithium Dosage

Equation (3) represents the ASR-induced expansion of lithium-containing mortar bars, which is mainly depended on three independent variables (factors) such as control expansion, lithium salt, and immersion age. The model was appropriate for a wide range of lithium-to-alkali molar ratio (0–1.19), ASR-induced expansion, and immersion age (14–98 days). For the proposed model, the statistical analysis for all regression coefficients were tested and found to be highly significant. Additionally, the F-ratio of the model was found to be very high that shows the model parameter’s significance. The empirical model to evaluate the optimum lithium content for all trial aggregate groups is expressed in Eq. (4), which is derived from Eq. (3).
E x p L i = 0.5535 + 0.2285 E x p C E + 0.00504 t - 0.712 L i
(3)
L i = 1 0.712 ( 0.5535 + 0.2285 E x p C E + 0.00504 t - E x p L i )
(4)
where Exp CE and Exp Li are the percent linear expansion of untreated mortar bars and that of treated specimens, respectively; t is immersion age in days, Li is lithium-to-alkali molar ratio.
The proposed empirical model predicted the optimum lithium dosage of each reactive aggregate that was sufficient enough to suppress the control expansion (Exp con ) below the prescribed failure limits at the immersion ages of 14, 28 and 56 days. The results are shown in Table 9. The proposed empirical model generated the minimum lithium content for each trial aggregate at three immersion ages was in a good agreement with the result obtained by the experimental procedures.
Table 9

Optimum experimental and analytical lithium dosage of each aggregate group at various immersion ages.

Aggregate ID

Immersion age (days)

Control expansion (%)

Expansion of treated bars below failure limita (%)

Experimental lithium dosage

Analytical lithium dosage

RA-A

14

0.890

0.074

0.89

1.03

28

1.185

0.248

0.89

0.98

56

1.323

0.464

1.04

0.92

RA-B

14

0.465

0.075

0.74

0.90

28

0.620

0.216

0.59

0.85

56

0.800

0.447

0.59

0.78

RA-C

14

1.098

0.073

0.89

1.10

28

1.610

0.265

0.89

1.09

56

2.050

0.453

1.04

1.17

RA-D

14

0.940

0.059

1.04

1.07

28

1.472

0.254

1.04

1.07

56

1.828

0.411

1.19

1.16

aLess than 0.10 % at 14 days, 0.28 % at 28 days, and 0.47 % at 56 days.

4.4 Controlling ASR-Induced Expansion Using the Combination of Class F Fly Ash and Lithium Salt

The effectiveness of the combined use of Class F fly ash and lithium salt was also expressed in terms of the Reduction in Expansion (RIE) of the untreated mortar bars (having no fly ash or lithium content). Figure 6 shows the RIE of mortar bars prepared with two dosages of Class F fly (15 and 20 %) and lithium-to-alkali molar ratio of 0.74 (100 % Li) at various immersion ages. As can be shown, the 14-day RIE of the treated mortar bars made with the selected aggregates varied from 93.9 to 95.2 % with an average of 94.7 % for 15 % FA + 100 % Li, and 95.6–96.7 % with an average of 96.1 % for 20 % FA + 100 % Li. The RIE decreased with an increase in test duration. At the extended immersion age of 98 days, the expansion values differed from 58.50 to 75.03 % with an average of 64.88 % for the 15 % FA + 100 % Li, and 71.69–80.22 % with an average of 74.73 % for the 20 % FA + 100 % Li. Overall, the results illustrated that the difference in the 14-day RIE among the trial aggregates was fairly insignificant as compared to that at the immersion age of 98 days.
Fig. 6
Fig. 6

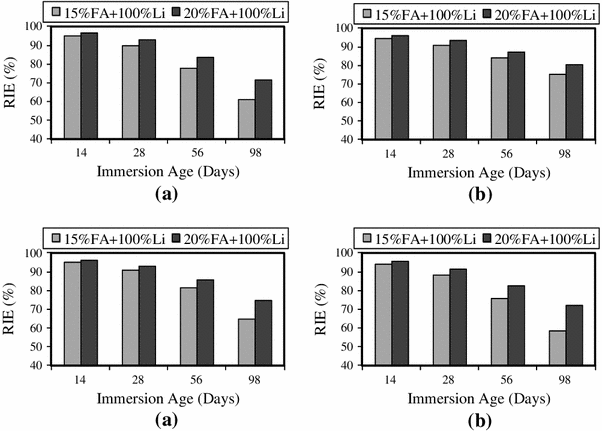

RIE of mortar bars prepared with two dosages of Class F fly (15 and 20 %) and lithium-to-alkali molar ratio of 0.74 (100 % Li) at various immersion ages. a RA-A aggregate. b RA-B aggregate. c RA-C aggregate. d RA-D aggregate.

4.4.1 Empirical Modeling to Predict ASR-Induced Expansion of Mortar Bars Prepared with Both Class F Fly Ash and Lithium Salt

A correlation was observed between the expansion of mortar bars made with combined fly ash and lithium dosages with the expansion of mortar bars having the dosage of admixture, that of untreated specimen, and immersion age. Equations (5) and (6) show the empirical models in evaluating the expansion of mortars made with 15 % Class F fly ash and lithium-to-alkali molar ratio of 0.74 (100 % Li dosage), and that prepared with 20 % Class F fly ash and lithium-to-alkali molar ratio of 0.74, respectively. The R2 values of the proposed models, higher than 98 %, indicated a good fit between the 14-, 28-, and 56-day expansion of the mortar bars made with Class F fly ash, lithium nitrate, and that containing both fly ash and lithium.
E x p F 15 + L 0.7 4 = exp ( - 4.507 + 1.108 E x p C E + 0.0172 t - 1.470 E x p F 15 + 2.400 E x p L i )
(5)
E x p F 2 0 + L 0.7 4 = exp ( - 2.560 - 0.848 E x p C E - 0.0056 t + 2.281 E x p F 2 0 + 2.227 E x p L i )
(6)
where ExpF15+L0.74 and ExpF20+L0.74 are the percent ASR-induced expansions of specimens due to the combined effects of 15 % fly ash and 100 % Li and those prepared with 20 % Class F fly ash and 100 % Li, respectively; Exp CE is percent control expansion; ExpF15 and ExpF20 are the percent linear expansions due to 15 and 20 % Class F fly ash, respectively; Exp Li is the percent expansion due to lithium-to-alkali molar ratio of 0.74; t is immersion age in days.
The analytical ASR-induced expansion of the mortar bars containing both fly ash and lithium salt at the immersion ages of 14, 28 and 56 days was evaluated by using Eqs. (5) and (6), and the outcomes are shown in Table 10. The test results were compared with the experimental expansion of the mortar bars containing both fly ash and lithium nitrate. A linear correlation with R2 values of 0.986 and 0.982 was observed between the analytical and experimental results for the mortar bars containing 15 % FA + 100 % Li and 20 % FA + 100 % Li, respectively.
Table 10

The optimum experimental and analytical lithium-to-alkali molar ratio for each reactive aggregate at various immersion ages.

Agg. ID

Immersion age (days)

Experimental expansion (%) due to

Analytical expansion (%) due to

15 % FA

20 % FA

100 % Li

15 % FA + 100 % Li

20 % FA + 100 % Li

15 % FA + 100 % Li

20 % FA + 100 % Li

RA-A

14

0.251

0.146

0.166

0.042

0.030

0.039

0.068

28

0.434

0.300

0.401

0.118

0.084

0.092

0.117

56

0.674

0.526

0.720

0.292

0.220

0.262

0.304

RA-B

14

0.134

0.081

0.076

0.025

0.018

0.023

0.069

28

0.261

0.184

0.175

0.055

0.041

0.037

0.088

56

0.409

0.322

0.352

0.128

0.104

0.098

0.143

RA-C

14

0.251

0.152

0.179

0.052

0.042

0.050

0.060

28

0.532

0.363

0.485

0.146

0.111

0.156

0.114

56

1.116

0.721

0.877

0.386

0.296

0.446

0.364

RA-D

14

0.233

0.144

0.286

0.057

0.042

0.056

0.085

28

0.488

0.349

0.660

0.175

0.125

0.217

0.183

56

0.854

0.718

0.852

0.447

0.321

0.482

0.412

aLess than 0.10 % at 14 days, 0.28 % at 28 days, and 0.47 % at 56 days.

4.5 Comparison of Various ASR Mitigation Techniques

Table 11 documents the levels of alkali–silica reactivity of the selected aggregates based on the suggested expansion criteria of ASTM C 1260 at 14, 28 and 56 days. As can be seen, various techniques in controlling the ASR-induced expansion at three immersion ages are effective for different aggregates. The combined use of fly ash and lithium showed very effective in suppressing the excessive expansion of the trial reactive aggregates compared to the individual effect of fly ash and lithium at the immersion age of 56 days. However, the study demonstrated that a combination of lithium nitrate at the lithium-to-alkali molar ratio of 0.74 and a minimum of 15 % Class F fly ash by weight of Portland cement inhibited ASR-induced expansion of all reactive aggregates based on the suggested expansion limits at the ages of 14, 28 and 56 days. The results showed an agreement on the findings recommended by McKeen et al. (1998), Johnston et al. (2002) and Ramyar et al. (2004). The study suggested that blending 20 % Class F fly ash as a partial replacement of Portland cement in conjunction with a Li:(Na + K) molar ratio of 0.74 would be more effective in improving ASR mitigation of the selected aggregate quarries at three different ages.
Table 11

Effective mitigation techniques to suppress alkali–silica reactivity.

Agg. ID

14-Day expansion limit of 0.10 % (ASTM C 1260)

28-Day expansion limit of 0.28 % (Islam 2010)

56-Day expansion limit of 0.47 % (Islam 2010)

FA (%)

Li

FA + Li

FA (%)

Li

FA + Li

FA

Li

FA + Li

RA-A

25

0.89

15 + 0.74

25

0.89

15 + 0.74

25

1.04

15 + 0.74

RA-B

20

0.74

15 + 0.74

15

0.59

15 + 0.74

15

0.59

15 + 0.74

RA-C

25

1.04

15 + 0.74

25

1.04

15 + 0.74

30

1.19

15 + 0.74

RA-D

25

0.89

15 + 0.74

25

0.89

15 + 0.74

30

1.04

15 + 0.74

FA Class F fly ash, Li lithium-to-alkali molar ratio.

5 Conclusions

The following conclusions can be drawn based on the results of this study:
  • Class F fly ash, lithium salt, and their combination suppressed the excessive expansion of trial aggregate groups caused by alkali–silica reactivity. It was shown that the progression in ASR-induced expansion had the highest for the control mortar bars, followed by the specimens treated with lithium salt, Class F fly ash and finally, the combination of lithium salt and Class F fly ash.

  • Most cases, the required experimental Class F fly ash and lithium dosages to suppress excessive ASR-induced expansion below 0.10 % at 14 days was less than that required to reduce the expansion below 0.28 % at 28 days, and 0.47 % at 56 days. It was recommended to use the minimum amount of Class F fly ash and lithium nitrate to arrest the ASR-related damages based on the 14-, 28- and 56-day expansion criteria.

  • The results revealed that lithium nitrate was found to be more effective for some extremely reactive aggregates, but comparatively less effective for less reactive aggregates. Additionally, lithium-bearing specimens show no tendency to expand after 2–3 months of immersion.

  • The reduction in mortar expansion decreased rapidly with an increase in immersion age for the mortar bars treated with the combination of fly ash and lithium salt than that those prepared with fly ash or lithium salt alone. The mitigation technique of combined use of Class F fly ash and lithium salt was shown to be more effective in inhibiting the excessive expansions of highly reactive aggregates. The combined use of standard lithium dose (lithium-to-alkali molar ratio of 0.74) and a moderate amount (15 %) of Class F fly ash as a partial replacement of Portland cement by weight, arrested the ASR-related damages for the investigated four reactive aggregates at three immersion ages.

  • A good agreement existed between the experimental admixture dosage and analytical admixture dosage at the immersion ages of 14, 28 and 56 days. The proposed analytical method may be used in selecting both optimum fly ash and lithium that is capable of limiting the ASR expansion of reactive aggregate below the three suggested failure criteria for the above-mentioned immersion ages.

  • The study also suggested that different aggregates may require different mitigation techniques to limit alkali–silica reactions. The final selection of an effective mitigation technique depends on its effect on early-age and late-age ASR-induced expansions, and the potential economical benefits.

Declarations

Acknowledgments

The author would like to acknowledge Nevada Department of Transportation (NDOT) for providing materials and financial support throughout the study. Thanks are also extended to the Southern Nevada Aggregate Association (SNAA) that acted as a connection between the aggregate producers and researchers. Material contributions by aggregate and cement companies are also acknowledged.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution License which permits any use, distribution, and reproduction in any medium, provided the original author(s) and the source are credited.

Authors’ Affiliations

(1)
Department of Civil and Environmental Engineering and Construction Management, University of Nevada, Las Vegas, NV, USA
(2)
Present address: Department of Civil Engineering, McMaster University, Hamilton, ON, L8S 4L8, Canada

References

  1. Berra, M., Mangialardi, T., & Paolini, A. E. (2003). Use of lithium compounds to prevent expansive alkali–silica reactivity in concrete. Advances in Cement Research,15(4), 145–154.View ArticleGoogle Scholar
  2. Bèrubé, M. A., & Fournier, B. (1993). Canadian experience with testing for alkali–aggregate reactivity in concrete. Cement & Concrete Composites,15, 27–47.View ArticleGoogle Scholar
  3. Brough, A. R., Dobson, C. M., Richardson, I. G., & Groves, G. W. (1996). Alkali activation of reactive silicas in cements: In situ 29Si MAS NMR studies of the kinetics of silicate polymerization. Journal of Materials Science,31, 3365–3373.Google Scholar
  4. Collins, C. L., Ideker, J. H., Willis, G. S., & Kurtis, K. E. (2004). Examination of the effects of LiOH, LiCl, and LiNO3 on alkali–silica reaction. Cement and Concrete Research,34, 1403–1415.View ArticleGoogle Scholar
  5. Durand, B. (2000). More results about the use of lithium salts and mineral admixtures to inhibit ASR in concrete. In Proceedings of the 11th international conference on alkali–aggregate reaction (pp. 623–632), Centre de Recherché Interuniversitaire sur le Beton, Quebec, Canada.Google Scholar
  6. Ekolu, S. O., Thomas, M. D. A., & Hooton, R. D. (2007). Dual effectiveness of lithium salt in controlling both delayed ettringite formation and ASR in concretes. Cement and Concrete Research,37(6), 942–947.View ArticleGoogle Scholar
  7. Feng, X., Thomas, M. D. A., Bremner, T. W., Balcom, B. J., & Folliard, K. J. (2005). Studies on lithium salts to mitigate ASR-induced expansion in new concrete: A critical review. Cement and Concrete Research,35, 1789–1796.View ArticleGoogle Scholar
  8. Folliard, K. J., Thomas, M. D. A., Fournier, T., Kurtis, K. E., & Ideker, J. H. (2006). Interim recommendations for the use of lithium to mitigate or prevent alkali–silica reaction (ASR). Report no. FHWA-ART-06-073. McLean, VA: Office of Infrastructure Research and Development, Federal Highway Administrator.Google Scholar
  9. Folliard, K. J., Thomas, M. D. A., & Kurtis, K. E. (2003). Guidelines for the use of lithium to mitigate or prevent ASR. Publication no. FHWA-RD-03-047. McLean, VA: Turner-Fairbank Highway Research Center.Google Scholar
  10. Freitag, S. A., Goguel, R., & Milestone, N. B. (2003). Alkali silica reaction: Minimising the risk of damage to concrete guidance notes and recommended practice. Technical report. ISSN:1171-4204. Cement & Concrete Association of New Zealand (CCANZ).Google Scholar
  11. Hooton, R. D. (1995). Test procedures for ASR. In Proceedings of the third annual ICAR symposium: Concrete, bases, and fines. Austin, TX: Center for Aggregates Research. http://aftre.nssga.org/Symposium/1995-31.pdf.
  12. Hooton, R. D., & Rogers, C. A. (1993). Development of the NBRI rapid mortar bar test leading to its use in North America. Construction and Building Materials,7(3), 145–148.View ArticleGoogle Scholar
  13. Hudec, P., & Banahene, N. (1993). Chemical treatment and additives for controlling alkali reactivity. Cement & Concrete Composites,15, 21–26.View ArticleGoogle Scholar
  14. Islam, M. S. (2010). Performance of Nevada’s aggregates in alkali–aggregate reactivity of Portland cement concrete. Doctoral dissertation. Las Vegas, NV: University of Nevada.Google Scholar
  15. Islam, M. S., & Akhtar, S. (2013). A critical assessment to the performance of alkali–silica reaction (ASR) in concrete. Canadian Chemical Transactions,2(4), 253–266.Google Scholar
  16. Islam, M., & Ghafoori, N. (2013). Evaluation of alkali–silica reactivity using aggregate geology, mortar bars, concrete prisms and ASR kinetic model. Journal of Materials Science Research,2(2), 103–117.View ArticleGoogle Scholar
  17. Johnston, D., Stokes, D., & Surdahl, R. (2002). Construction of lithium/fly ash concrete pavement test sections in interstate 90 in SD. TRB annual meeting CD-ROM.Google Scholar
  18. Lane, D. S. (2002). Laboratory investigation of lithium-bearing compounds for use in concrete. Report no. VTRC 02-R16. Charlottesville, VA: Virginia Transportation Research Council.Google Scholar
  19. Li, X. (2005). Mitigating alkali silica reaction in recycled concrete. Ph.D. dissertation, Department of Civil Engineering, University of New Hampshire, Durham, NH.Google Scholar
  20. Malvar, J., Cline, G. D., Burke, D., Rollings, R., Sherman, T., & Greene, J. (2001). Alkali–silica reaction mitigation state-of-the-art. Technical report no. TR-2195-SHR. Washington Navy Yard, DC: Naval Facilities Engineering Service Center.Google Scholar
  21. Malvar, J., & Lenke, L. R. (2006). Efficiency of fly ash in mitigating alkali–silica reaction based on chemical composition. ACI Materials Journal,103(5), 319–326.Google Scholar
  22. McCoy, W. J., & Caldwell, A. G. (1951). A new approach to inhibiting alkali–aggregate expansion. Journal of the American Concrete Institute,47, 693–706.Google Scholar
  23. McKeen, R. G., Lenke, L. R., & Pallachulla, K. K. (1998). Mitigation of alkali–silica reactivity in New Mexico. Work performed for New Mexico State Highway and Transportation Department, Materials Research Center, ATR Institute, University of New Mexico, Albuquerque, NM.Google Scholar
  24. Millard, M. J., & Kurtis, K. E. (2008). Effects of lithium nitrate admixture on early-age cement hydration. Cement and Concrete Research,38(4), 500–510.View ArticleGoogle Scholar
  25. Ramyar, K., Çopuroğlu, O., Andiç, Ö., & Fraaij, A. L. A. (2004). Comparison of alkali–silica reaction products of fly ash of lithium salt bearing mortar under long-term accelerated curing. Cement and Concrete Research,34, 1179–1183.View ArticleGoogle Scholar
  26. Shehata, M. H., & Thomas, M. D. A. (2000). The effect of fly ash composition on the expansion of concrete due to alkali–silica reaction. Cement and Concrete Research,30, 1063–1072.View ArticleGoogle Scholar
  27. Stanton, T. E. (1940). Expansion of concrete through reaction between cement and aggregate. Proceedings of the American Society of Civil Engineers,66(10), 1781–1811.Google Scholar
  28. Stark, D., Morgan, B., Okamoto, P., & Diamond, S. (1993). Eliminating or minimizing alkali–silica reactivity. Strategic Highway Research Program, SHRP-P-343, Washington, DC.Google Scholar
  29. Taha, B., & Nounu, G. (2008). Using lithium nitrate and pozzolanic glass powder in concrete as ASR suppressors. Cement & Concrete Composites,30, 497–505.View ArticleGoogle Scholar
  30. Touma, E. W., Fowler, D. W., & Carrasquillo, R. L. (2001). Alkali–silica reaction in Portland cement concrete: Testing methods alternatives. Research report ICAR-301-1f. International Center for Aggregates Research (ICAR).Google Scholar
  31. Tremblay, C., Berube, M. A., Fournier, B., Thomas, M. D. A., & Folliard, K. J. (2007). Effectiveness of lithium-based products in concrete made with Canadian natural aggregates susceptible to alkali–silica reactivity. ACI Materials Journal,104(2), 195–205.Google Scholar

Copyright

© The Author(s) 2014

Advertisement
